Description

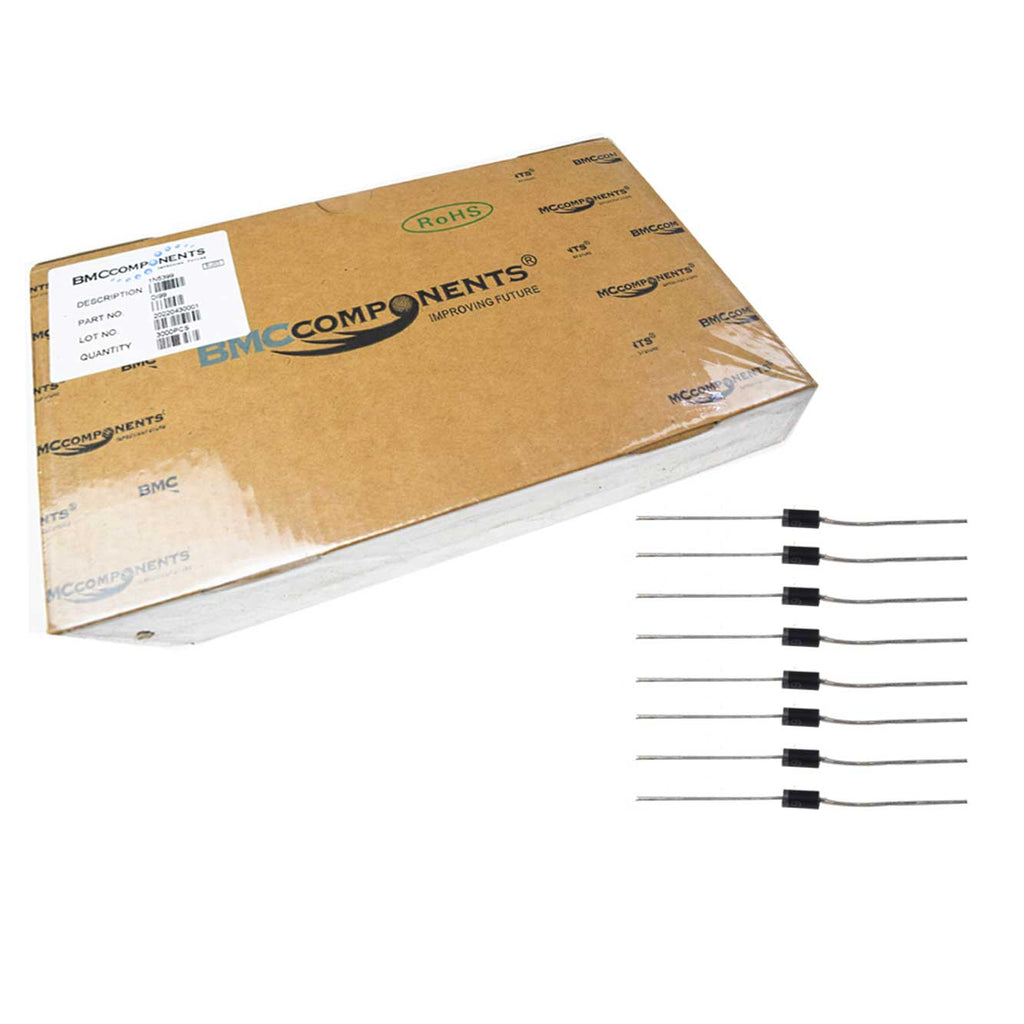

The 1N5399 Diode is a low-cost general-purpose diode that is used in circuit protection and voltage converters. The 1N5399 has a 1000V continuous reverse voltage rating and can handle forward currents of up to 1.5A. The diode has a 1.0V forward voltage drop.
Features
-
Diffused Junction
- Low forward Voltage Drop
- High Current Capability
- High Reliability
- High Surge Current Capability
Specifications
| Part Number | 1N5399 |
| Peak Reverse Voltage | 1000V AC |
| Maximum RMS Voltage | 700V AC |
| Average Rectified Current | 1.5A |
| Max. Reverse Current DC | 5uA |
| Max. Forward Voltage Drop | 1.0V |
| Operating Temperature | -65 to +150 °C |
| Quantity | 3000 |
| Package | DO-15 |
| Country of Origin | China |
