Description

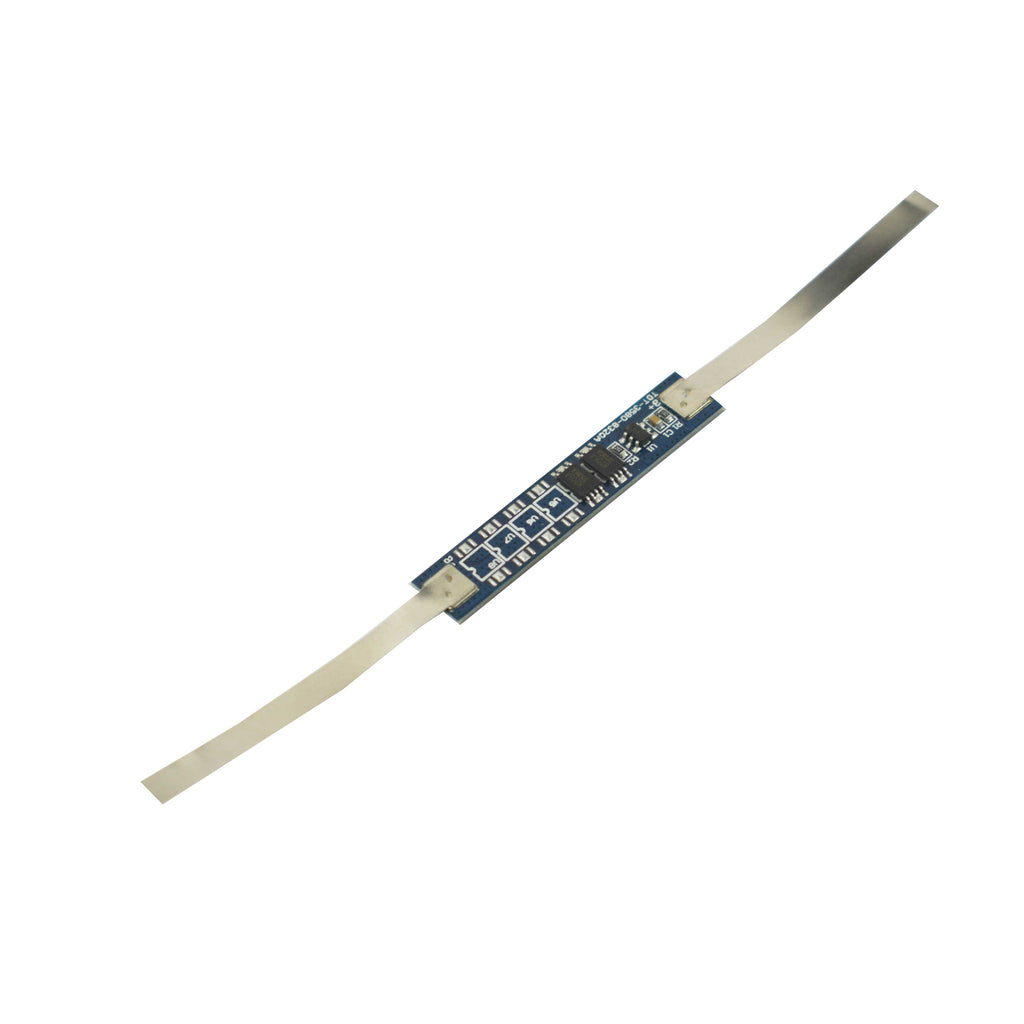

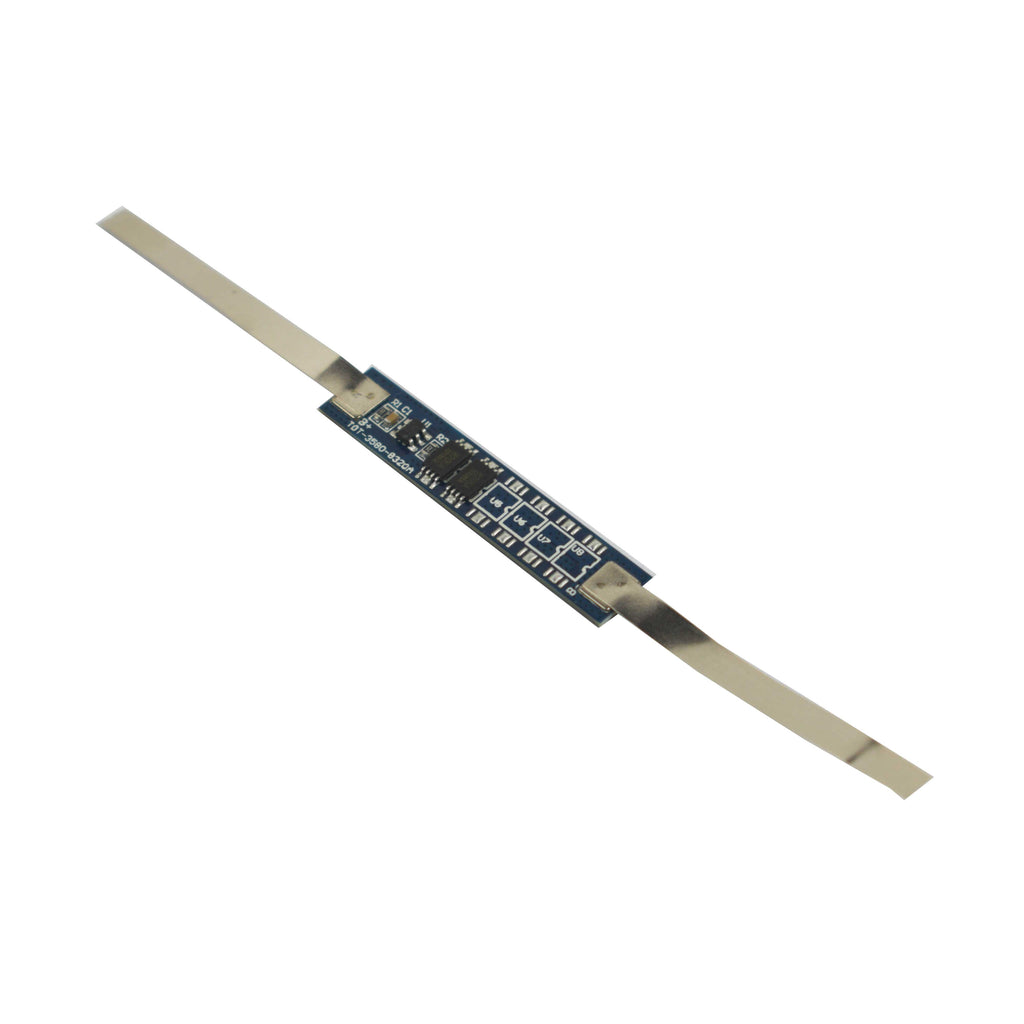

This 1S 4A BMS LiFePO4 Battery Protection Board With Nickel Strip is commonly used to manage and protect the battery from overcharge or discharge. It is very safe and reliable to use. This module provides short circuit protection; overload, discharge and overcharge protection. This little piece of equipment ensures the safety and protection of your battery pack. So that the battery can provide you with long service life.
This module has low current consumption and provides stable performance. Due to its small size, excellent performance and low cost. This product is suitable to meet a wide range of requirements
Pin-Out:-
- B+ is connected to the positive battery.
- B-connect the battery negative.
- P+ is the positive input of the battery pack output
- P- is the negative input of the battery pack output
Specification
| Overcharge Release Voltage | 3.6±0.25V |
| Overcharging Voltage Range | 3.75±0.25V |
| Over-discharge Voltage Range | 2.1±0.5V |
| Over-Current Detection | 4A |
| Nominal Voltage | 3.7V |
| Size |
40.3x8x1.8mm |
| Country of Origin | China |
