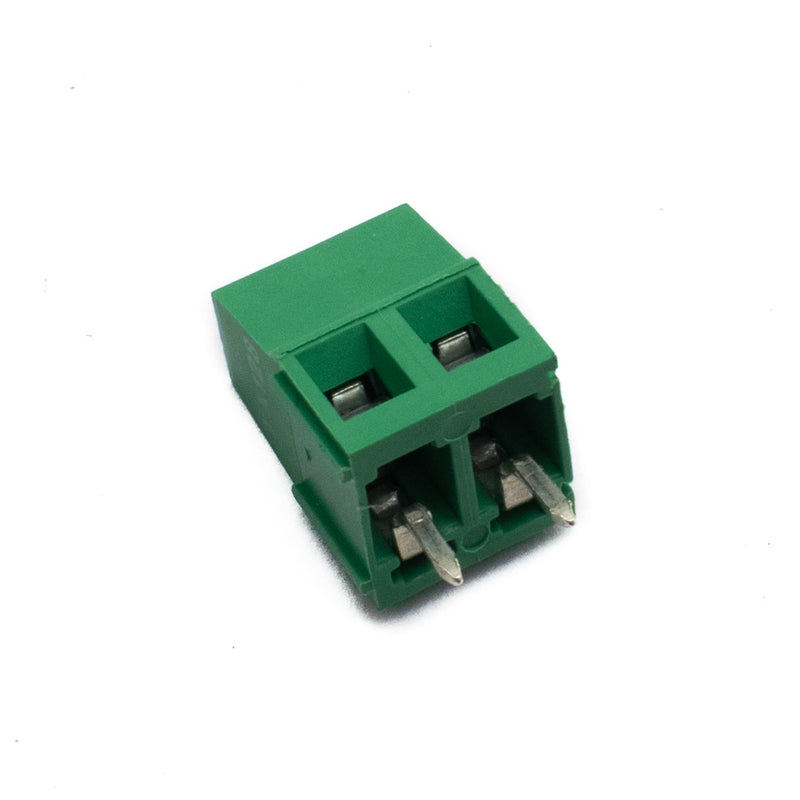

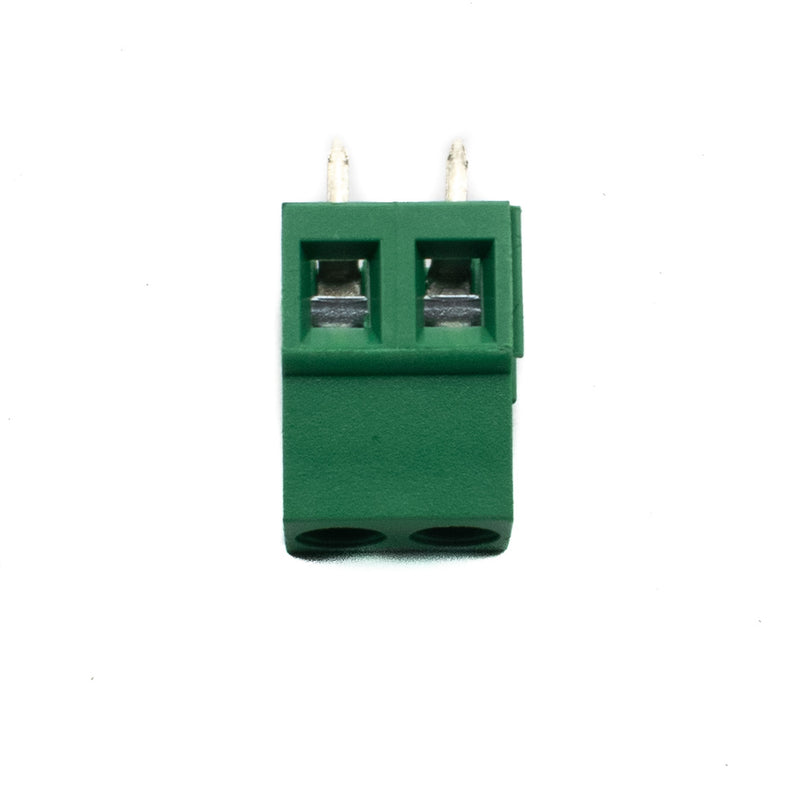

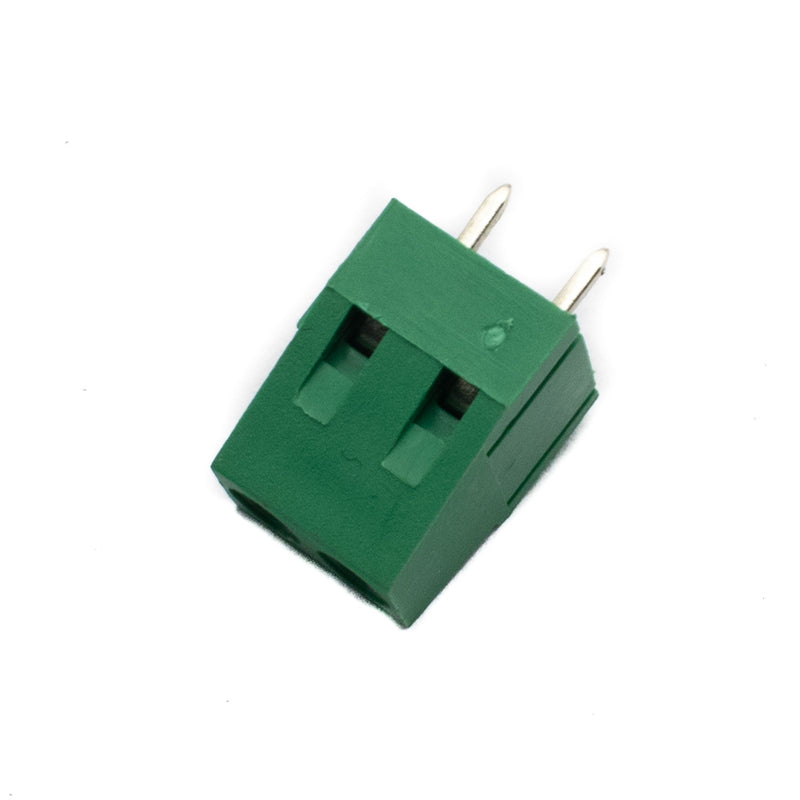

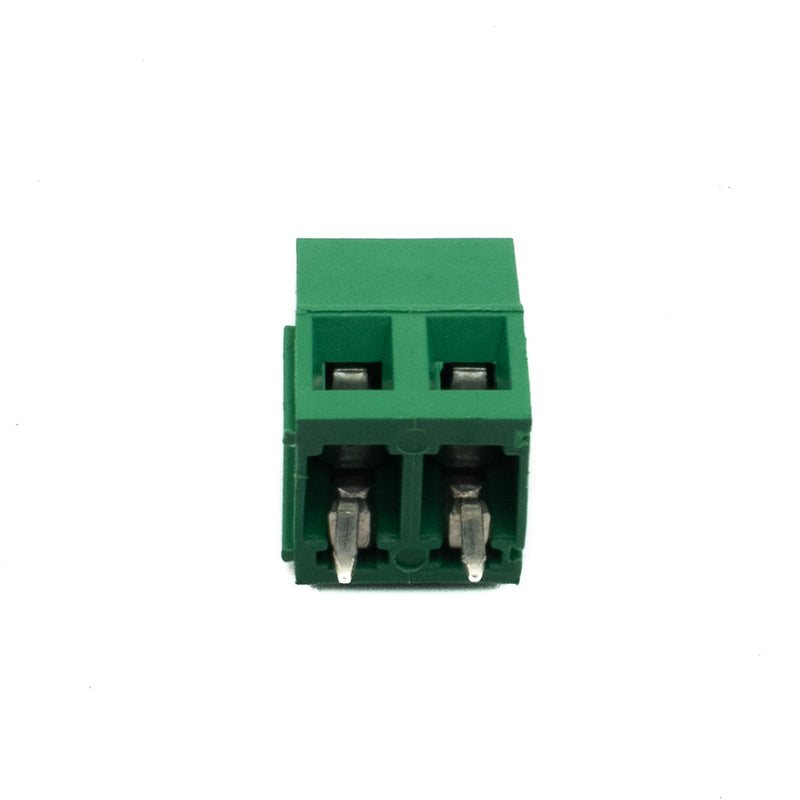

2 Pin PCB Terminal Block 5mm Pitch 10A Rating YX128

Save 20%
Sold By: HatchnHackSKU: B07-28

Price:
Sale price₹ 4.00 Regular price₹ 5.00

Tax included Shipping calculated at checkout

Out of stock

Description

Terminal blocks (also known as screw terminals) are electrical connectors that allow you to connect wires in the same circuit without cutting or splicing them. Screw with 2 pins. The Terminal Block is a multifunctional and small terminal block. It's used to connect wires to the circuit board. The terminal block's small size allows it to connect two conductors on a PCB where space is at a premium. The wires are held in place by screws on this terminal block. It can hold wires ranging in size from 24 to 12 AWG Allowed wire size.  This terminal block is perfect for tiny rack systems or telecoms equipment that requires a lot of contacts. Each terminal has a single corresponding pin separated every (5mm) (if there is sufficient clearance from nearby components). It has tin-plated brass for pin header and has nickel-plated brass contacts. The connector is made of PBT (Polybutylene terephthalate) which is mechanically strong, heat resistant (UL94-0), and has good insulation properties.

Features:

  1. Saves space due to the small design
  2. Screw connection with tension sleeve
  3. Maximum contact force ensures a low-temperature rise
  4. Connection in accordance with EN-VDE Standard.
  5. Pin header: Tin-plated brass.
  6. Contacts: Nickel-plated brass.
  7. Strong, compact, lightweight.
  8. Heat resistant.
Specifications

Max. Operating Current

10A

Max. Voltage

300V

Pin Pitch 5mm

Material Used

Metal and plastic

Model YX128-2P

Allowed Wire Size (AWG)

24 ~ 12

No. of contacts

2

L*B*H

10.6*10.4*14mm

Country of Origin China
