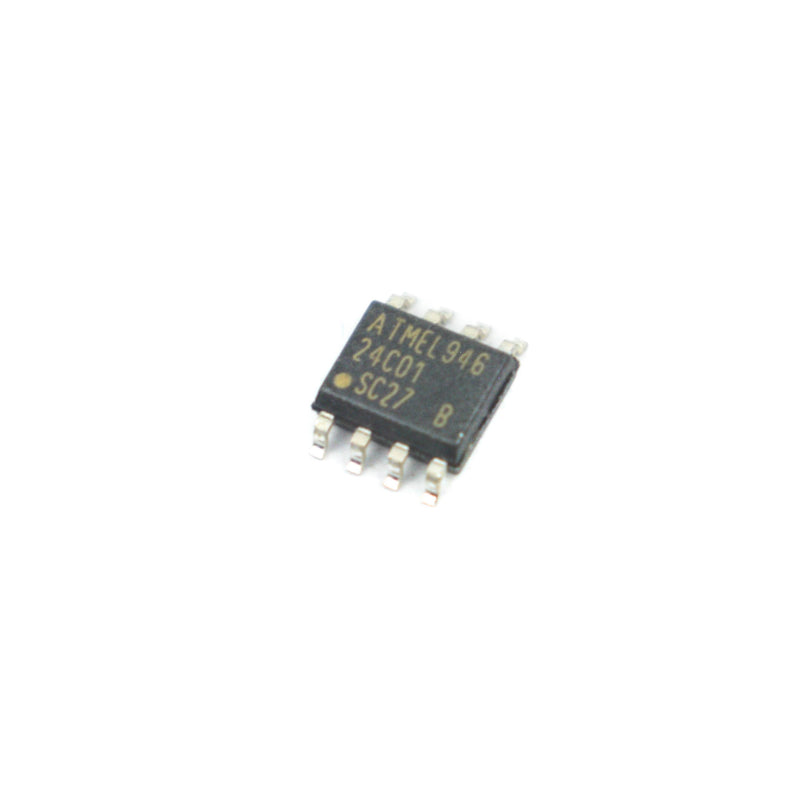

24C01 1kb 2 Wire Serial EEPROM IC

Save 20%
Sold By: HatchnHackSKU: D12-40

Price:
Sale price₹ 12.00 Regular price₹ 15.00

Tax included Shipping calculated at checkout

Min Qty: 10

Description

The 24C01 provides 1024 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 128 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential.

Features

  • Low Voltage and Standard Voltage Operation
  • Operating Voltage-2.7  to 5.5V
  • Internally Organized - (1K) 128 x 8
  • 2-Wire Serial Interface
  • High Reliability
  • Endurance: 1 Million Write Cycles
  • Data Retention: 100 Years
Specification
Model 24C01
Packaging type SMD
Memory Size2- 3 mA @ 5.5 v 1K-bits
Memory Format EEPROM
Memory Type Non-Volatile
Operating voltage  2.7 V to 5.5 V
Operating Temperature -55°C to +125°C
Storage Temperature -65°C to +150°C

 Current consumption

                                   Stand by

                                    Active





18 μA at 5.0V

2- 3 mA at 5.5 v

Country of Origin China
