Description

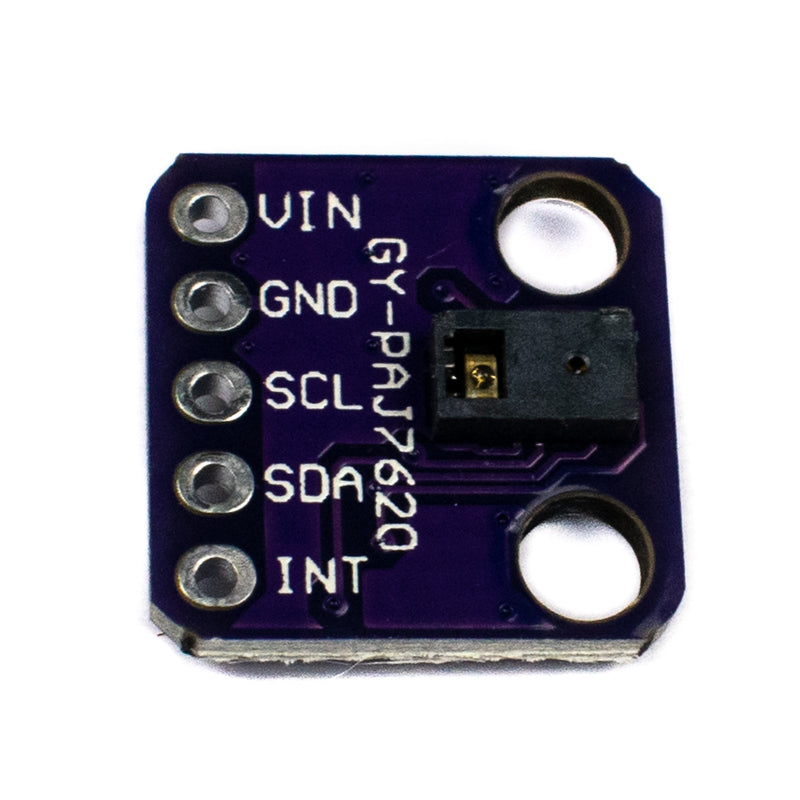

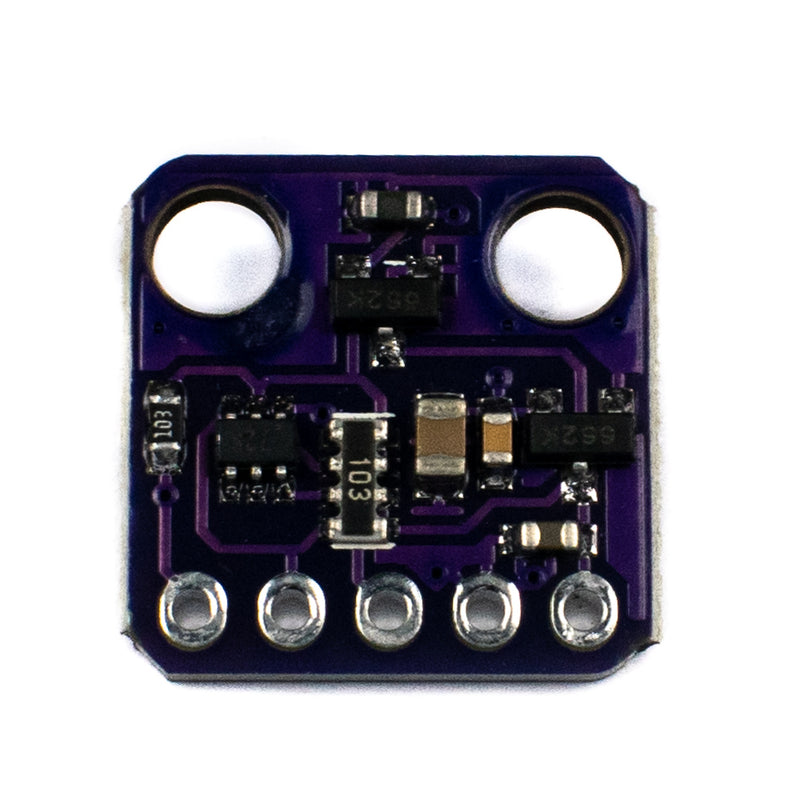

PAJ7620 gesture recognition sensor. It can recognize 9 gestures including move up, move down, move left, move right, move forward, move backwards, circle-clockwise, circle-counter clockwise, and wave. These gestures information can be simply accessed via the I2C bus.
Features:
- A typical supply voltage is 2.8V to 3.3V and I/O voltage is 1.8V~3.3V
- Nine gesture recognition (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave)
- Gesture speed is 60°/s to 600°/s in Normal Mode and 60°/s to 1200°/s in Gaming Mode
- Ambient light immunity: < 100k Lux
- Built-in proximity detection
- Flexible power-saving scheme
- I2C interface up to 400 kbit/s, Pull-up voltage from 1.8V to 3.3V
- Ambient light noise cancellation
Specifications
| Operating Voltage | 2.8-3.3V |
| Communication | I2C interface 400kb/s |
| Recognizable Gestures | 9 (Up / Down / Left / Right / Push / Pull / CW / CCW / Wave) |
| Size | 14.3x14x5mm |
| Country of Origin | China |
