Description

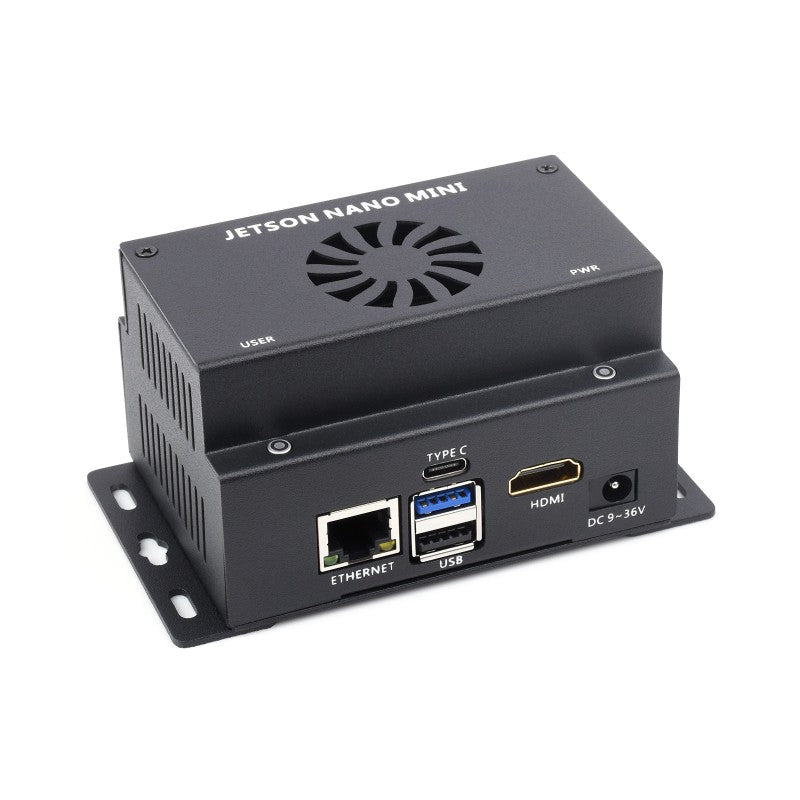

Jetson Nano Mini-Computer
Based on Jetson Nano Module (fully built), provides a variety of peripheral interfaces such as USB connectors, Ethernet port, HDMI port, CSI, GPIO, I2C, and RS485 interfaces. Onboard M.2 B KEY slot with adapter board for installing WiFi or 4G module (choose one of two), with metal case, suitable for various AI applications.
Base Board Comparison
| MODEL | JETSON-IO-BASE-A | JETSON-IO-BASE-LITE | JETSON NANO MINI |
|---|---|---|---|
| USB CONNECTORS | 4 × USB 3.2 Gen 1 Type-A 1 × USB 2.0 Micro-B |
1 × USB 3.2 Gen 1 Type-A 2 × USB 2.0 Type-A 1 × USB 2.0 Micro-B |
1 × USB 3.2 Gen 1 Type-A 1 × USB 2.0 Type-A |
| ETHERNET PORT | √ | √ | √ |
| HDMI PORT | √ | √ | √ |
| DP PORT | √ | - | - |
| CSI INTERFACE | × 2 | × 1 | × 2 |
| POWER PORT | DC | USB Type-C | DC/USB Type-C |
| BUTTON | - | Power: PWR BTN Reset: SYS RST |
Power button, user button |

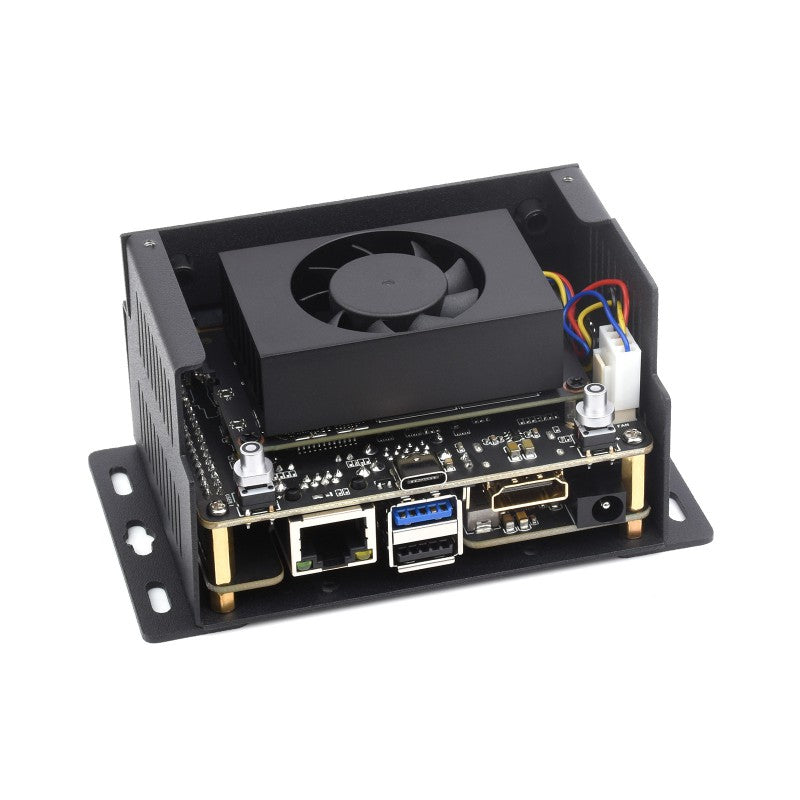

Based on Jetson Nano Module
Connecting To Cameras
Supports CSI Cameras For AI Applications Such As Facial Recognition, Road Sign Detection And License Plate Recognition
4K HD Output
Supports HDMI High Definition Port

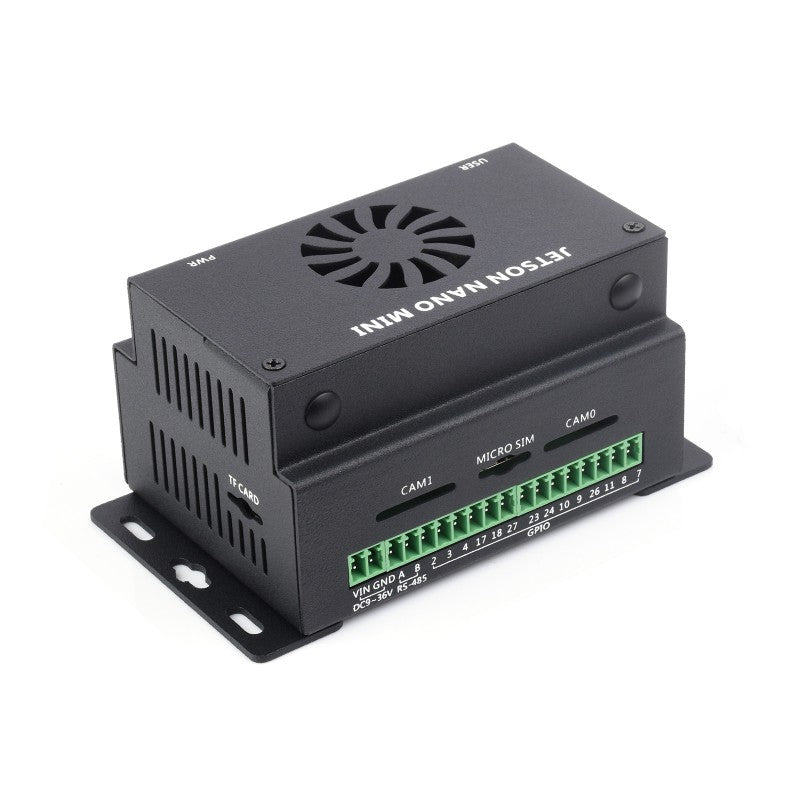

Onboard Multiple Interfaces
Onboard M.2 B KEY Slot
Comes With Adapter Board, Supports Installing WiFi Or 4G Module (Choose One Of Two)
Connect to WiFi module |
Connect to 4G module |
* for reference only, please refer to the Package Content for detailed part list

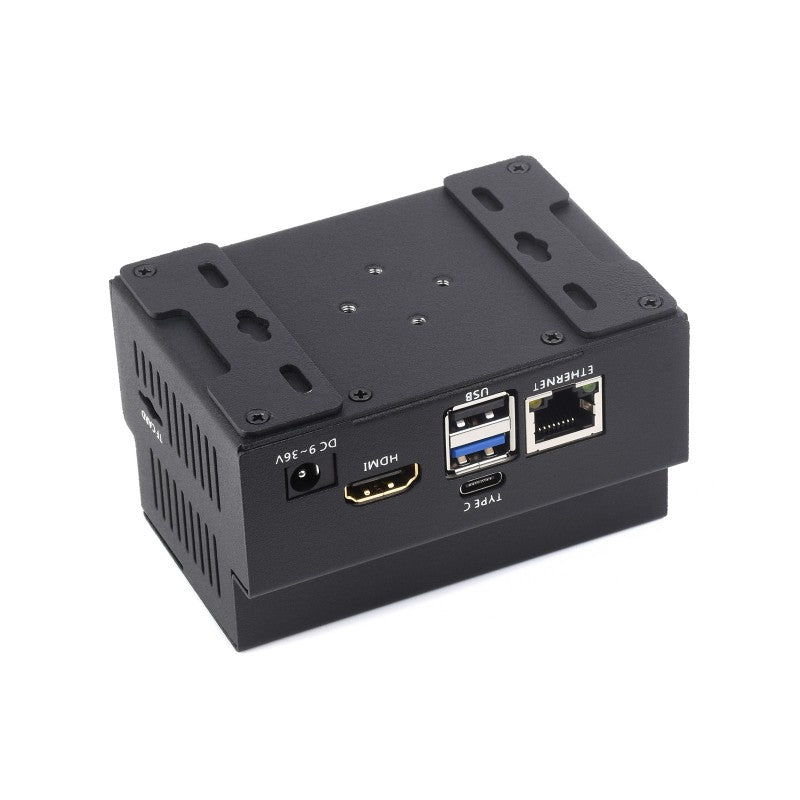

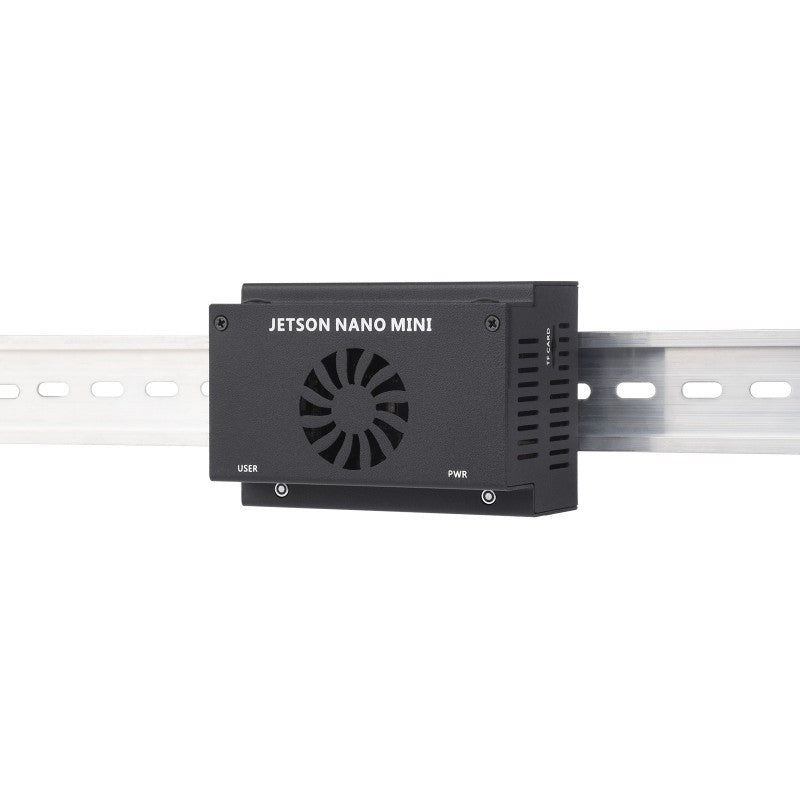

Rail-Mount Support
With Mounting Holes On The Bottom For Installing Rail Buckle,
Easy To Install The Mini-Computer On The Rail
What's On Board
-
Module socket
for connecting with Jetson Nano module -
Power button and Power LED
for power ON/OFF control and indicating module status -
User button and user LED
user-defined button and LED
-
Type-C interface
for power supply, programming, and debugging - 2.54mm fan header
- Multi-function pins header
-
Gigabit Ethernet Port
10/100/1000Base-T auto-negotiation, does not support PoE -
USB Type-A connectors
1 × USB 3.2 Gen 1, 1 × USB 2.0 -
Type-C power supply enable
enable via jumper -
HDMI interface
supports 4K output - TF card slot
- MIPI CSI interface 1
-
SIM card slot
only available when installing a 4G module - MIPI CSI interface 0
-
mini PCIe socket
for connecting 4G module or adapter board, supports USB2.0 and PCIex1
-
DC power terminal
Supports 9~36v power supply - RS485 terminal
- GPIO header
-
RTC battery holder
Supports CR1220 button cell -
DC power jack
Supports 9~36V power supply, comes with 12V power adapter
Outline Dimensions
Resources
Package Contents:
Weight: 0.448 kg
- JETSON NANO MINI x1
- 12V power supply x1
- Screwdriver x1
