Description

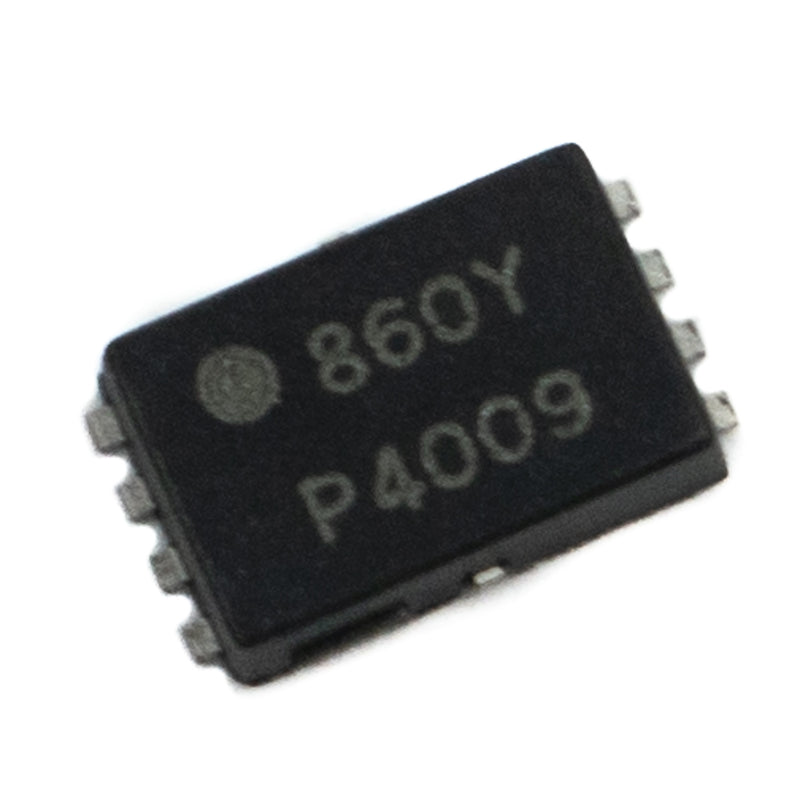

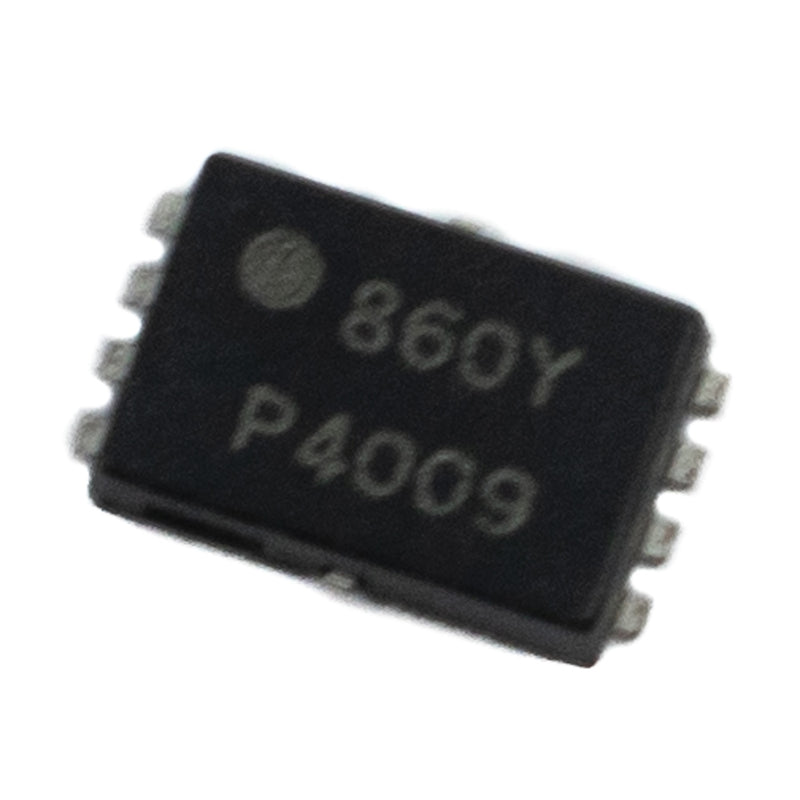

RJP4009 IC is an 8 Pin IGBT with VSON-8 Package. It is used in strobe flashlight of cameras.
Features
• Small surface mount package (VSON-8)
• VCES: 400 V
• ICM: 150 A @Tc = 70°C, CM = 400 μF
• Drive voltage: 2.5 V to 6 V (MAX)
• Pb-free
• Halogen-free
Specifications
| Model | RJP4009ANS |
| Brand | Renesas |
| Package | VSON-8 |
| Channel Type | N-Channel |
| Max. Collector-Emitter Voltage | 400V |
| Collector-Emitter Saturation Voltage | 4V |
| Max. Gate Emitter Voltage | 6V |
| Max. Collector Current | 150A |
| Max. Junction Temperature | 150°C |
| Max. Power Dissipation | 1.8W |
| Country of Origin | China |
