Description

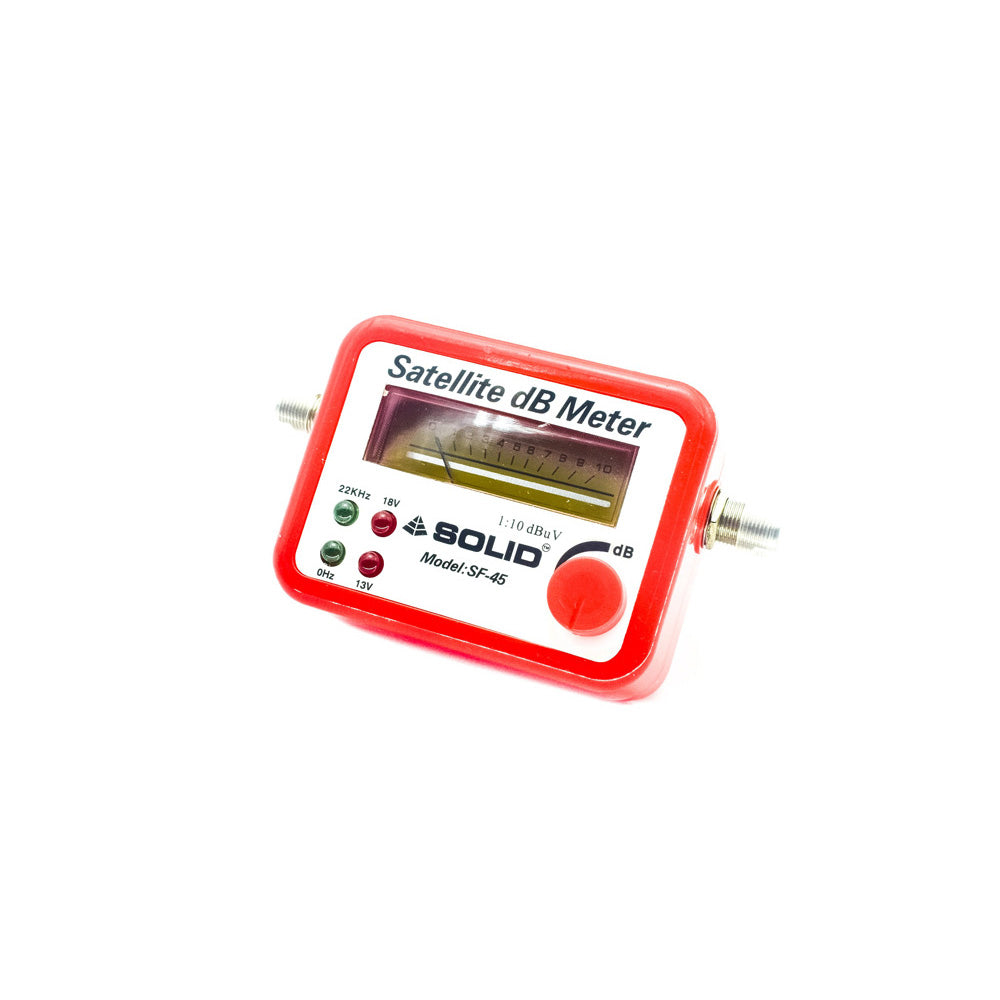

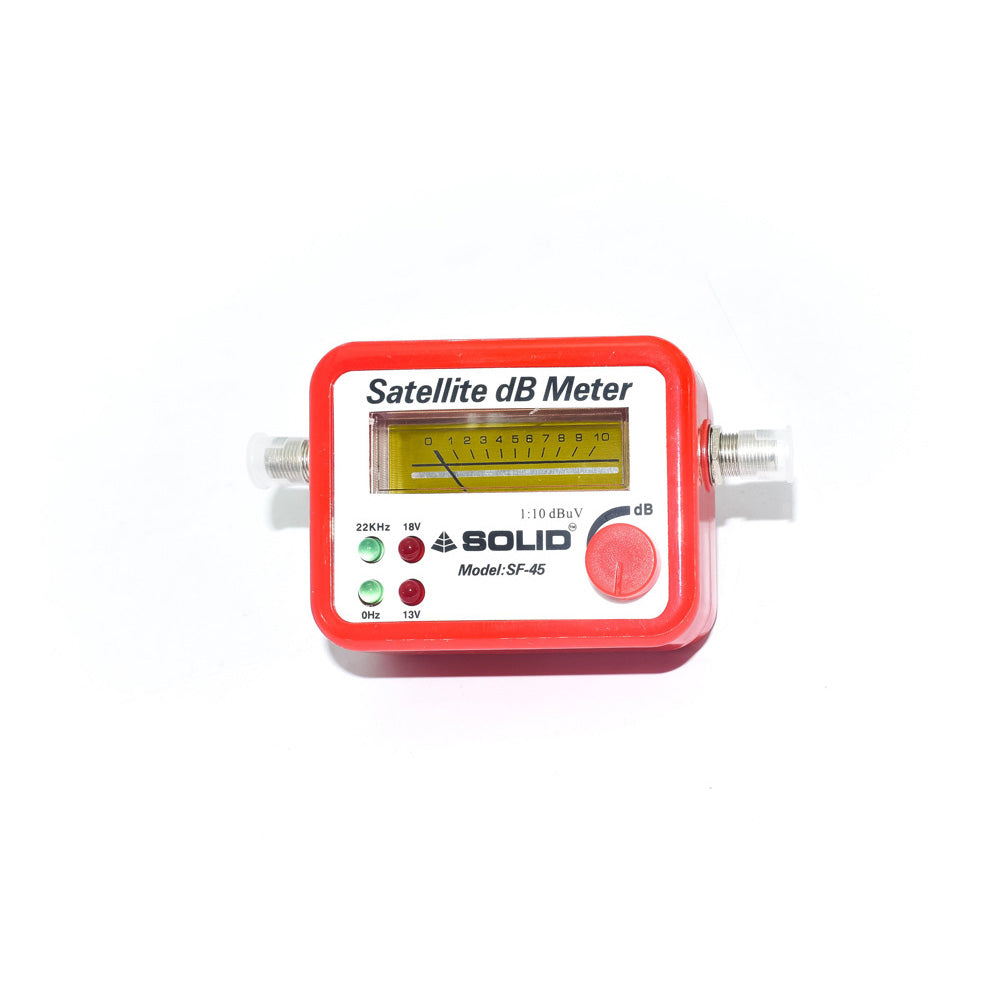

Satellite Finder with pointer gauge and acoustic display for the alignment of satellite antennas. Well thought out and proven thousands of times will switch easily between the LNB and receiver. When aligning the antenna reception is an optical display with backlight and audible acoustic measurement display and allowing a fast and optimum alignment of the antenna. The additional sensitivity control allows optimum adaptation to the signal strength. As an additional highlight, you can instantly see the 4 most important settings of the receiver through the 4 built-in LEDs: 13V/ 18V/ 22kHz/ 0Hz
Features
- Frequency Range: 950~2150MHz
- Controls for very high input sensitivity
- Backlight
- Sound Signal
- Powered by receiver /PC Card: 13~18V
- Max. Current consumption: 100mA
- Operating Voltage: 15V±3V
- 22kHz Capable
- 2x F Connectors
Specification
| Model | SF-45 |
| Frequency Range | 950-2150MHz |
| Max. Input | -10dBm |
| Power | 13~18V DC |
| Max. Current | 100mA |
| Country of Origin | China |
