Description

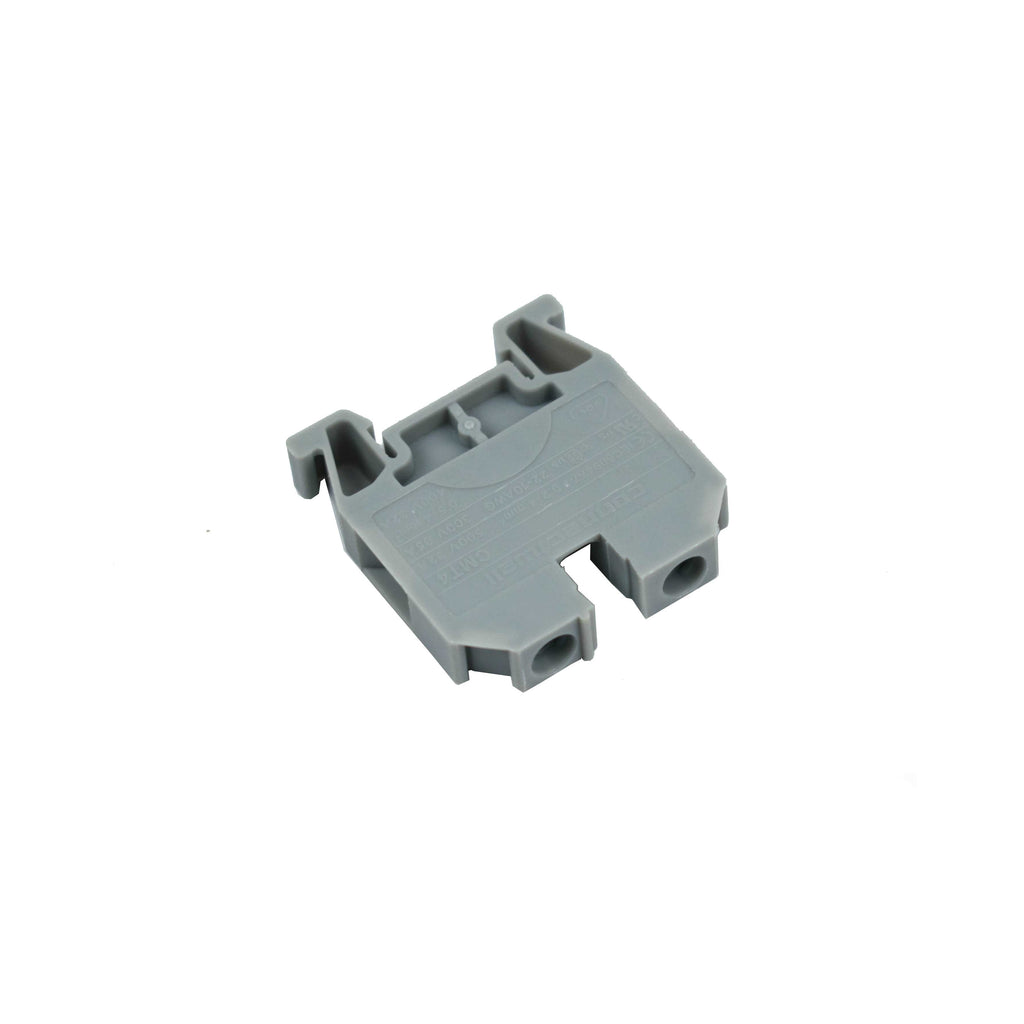

In applications with limited space, Connectwell Screw Clamp (Mirco Terminal Blocks) are employed because of their extraordinary compactness. These blocks must be used with rails of the DIN 15 type (DIN 2).These terminals can be used in environments that may be explosive because they have Ex & IECEx approval.
Specifications
| Parameter | Values |
| Model | SCREW CLAMP TB |
| Brand | Connectwell |
| Material | Polyamide |
| Rated Voltage | 500 V |
| Rated Current | 32 A |
| Tightening Torque | 0.5 Nm |
| Screw Size | M3 |
| Rail Size | Din 15 |
| Dimension with Din 15 x 5 mm rail | 30.4 x 27 x 6 mm |
| Quantity | 1 Pcs |
| Country of Origin | China |
