Description

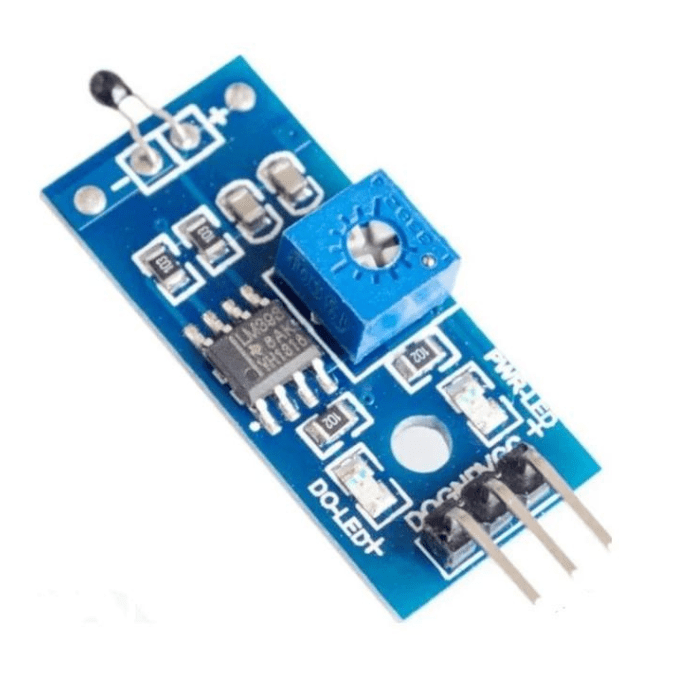

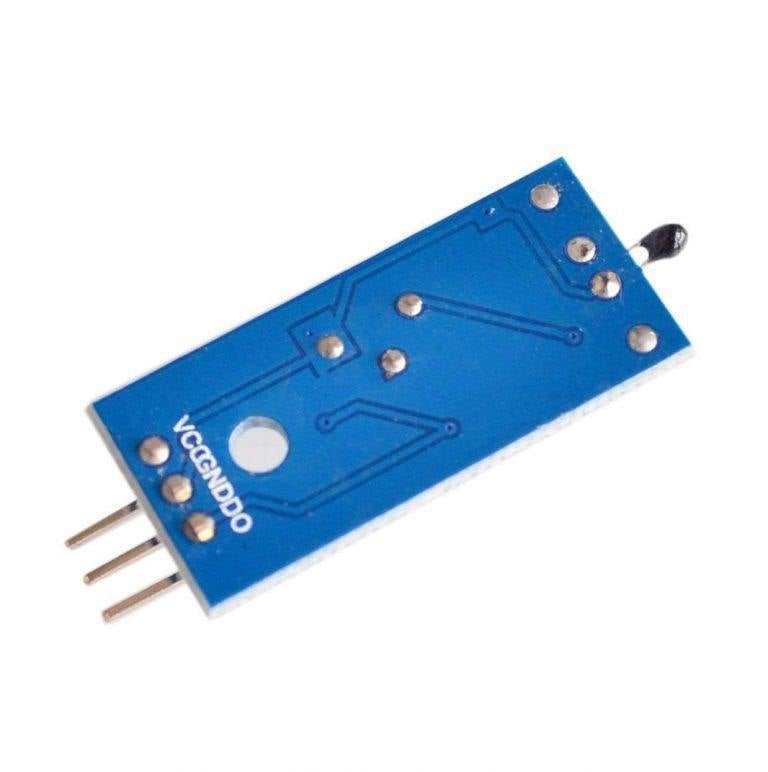

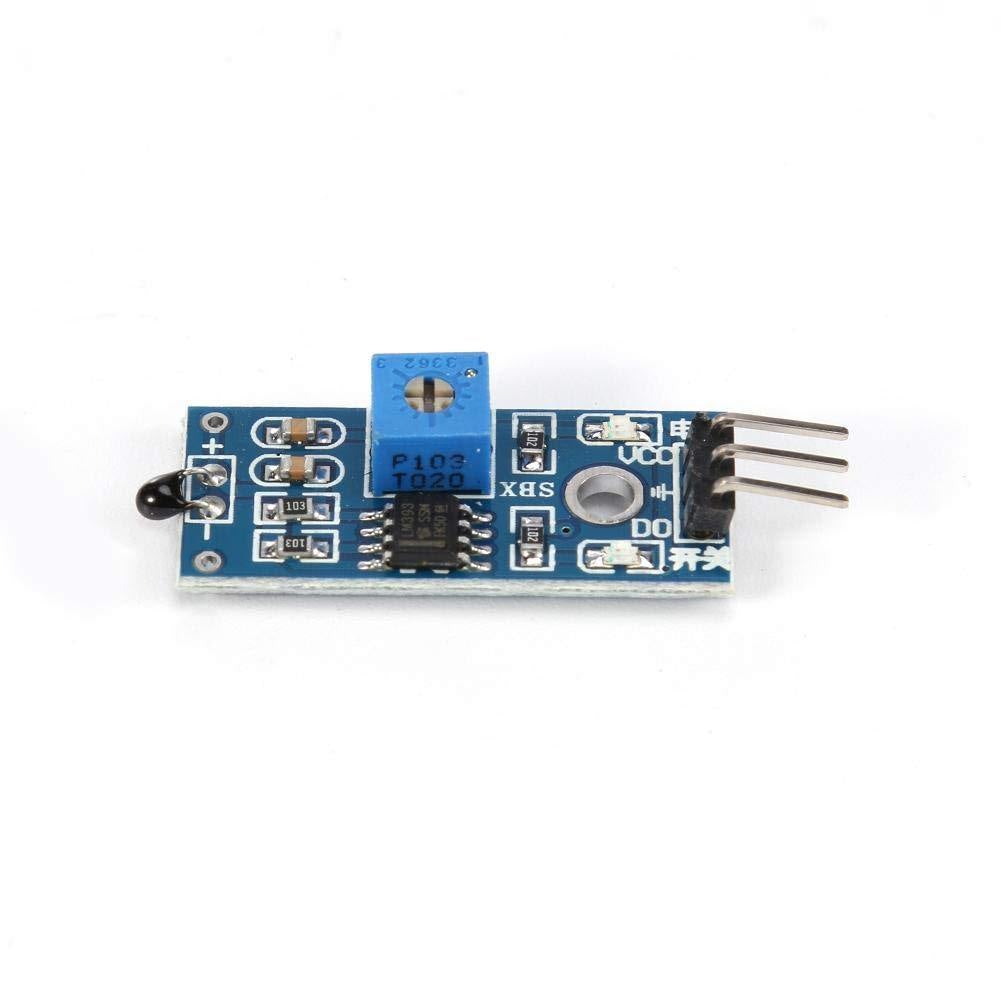

10K Thermistor Temperature Sensor Module(3 Pin)
Thermistor Temperature Sensor Module is very sensitive to ambient temperature. This electronic part generally used to detect the temperature of the surrounding environment. Through potentiometer adjustment, it is possible to change the temperature detection threshold.
DO output can be directly connected to the microcontroller to detect high and low, by detecting temperature changes in the environment. The temperature detection range of the module is between 20 and 80 degrees Celsius. This sensor module can be replaced with a line temperature sensor for controlling the water temperature, water tank, etc.
Generally, the 4-wire method of thermistor measurement is the most accurate because there is effectively no current flowing in either of the measurement cable wires and therefore no added resistance due to the cable wires.
Also check the DC 3-5V MAX6675 Module + K Type Thermocouple Temperature Sensor Thermocouple Sensor Set M6 Screw and Jumper Wire F to F 5pcs
Package Includes:
- 1 x 10K Thermistor Temperature Sensor Module(3 Pin)
Also check 10K Temperature Sensor (Thermistor).
Specifications:
| Working voltage | 3.3 - 5VDC |
| Voltage Comparator | LM393 comparator |
| Digital switching output | 0 and 1 |
| Temperature Detection Range | 20 and 80 degrees Celsius |
| Dimensions | 3 x 3 x 1cms |
| Weight | 5 grams |
