Description

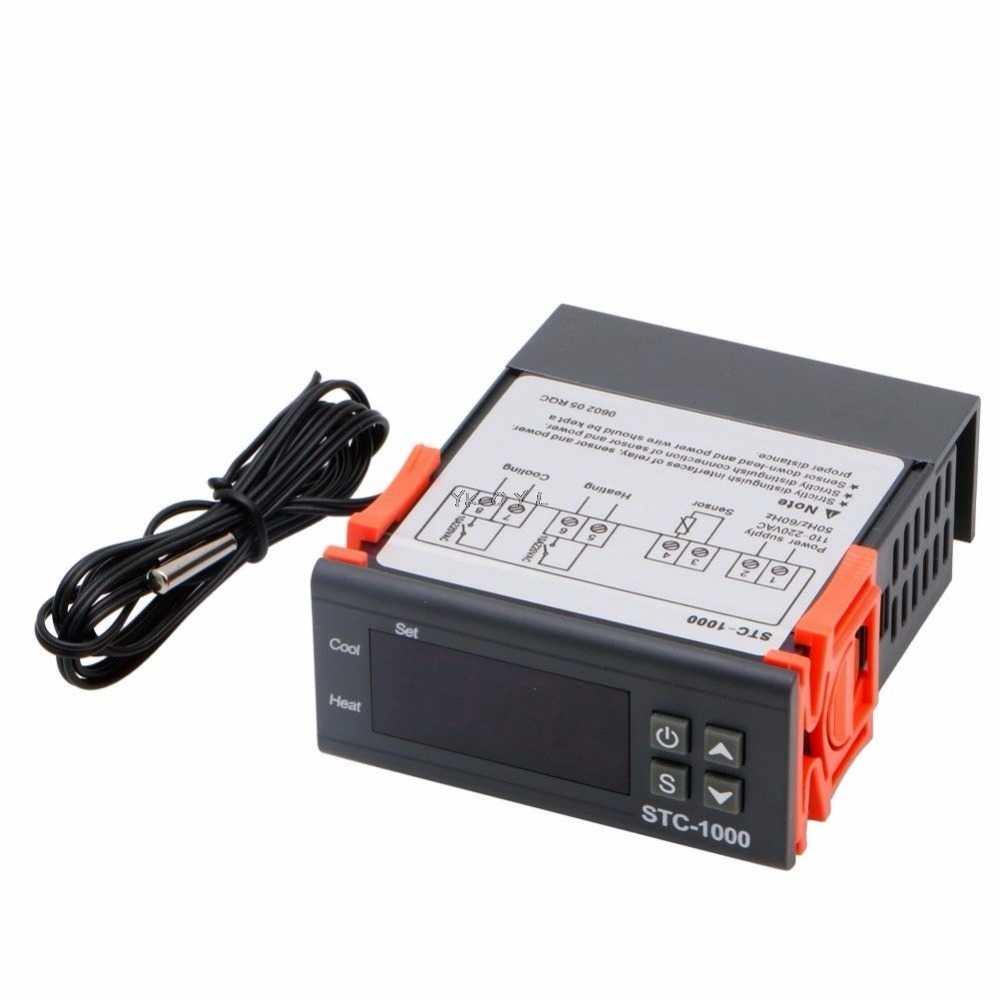

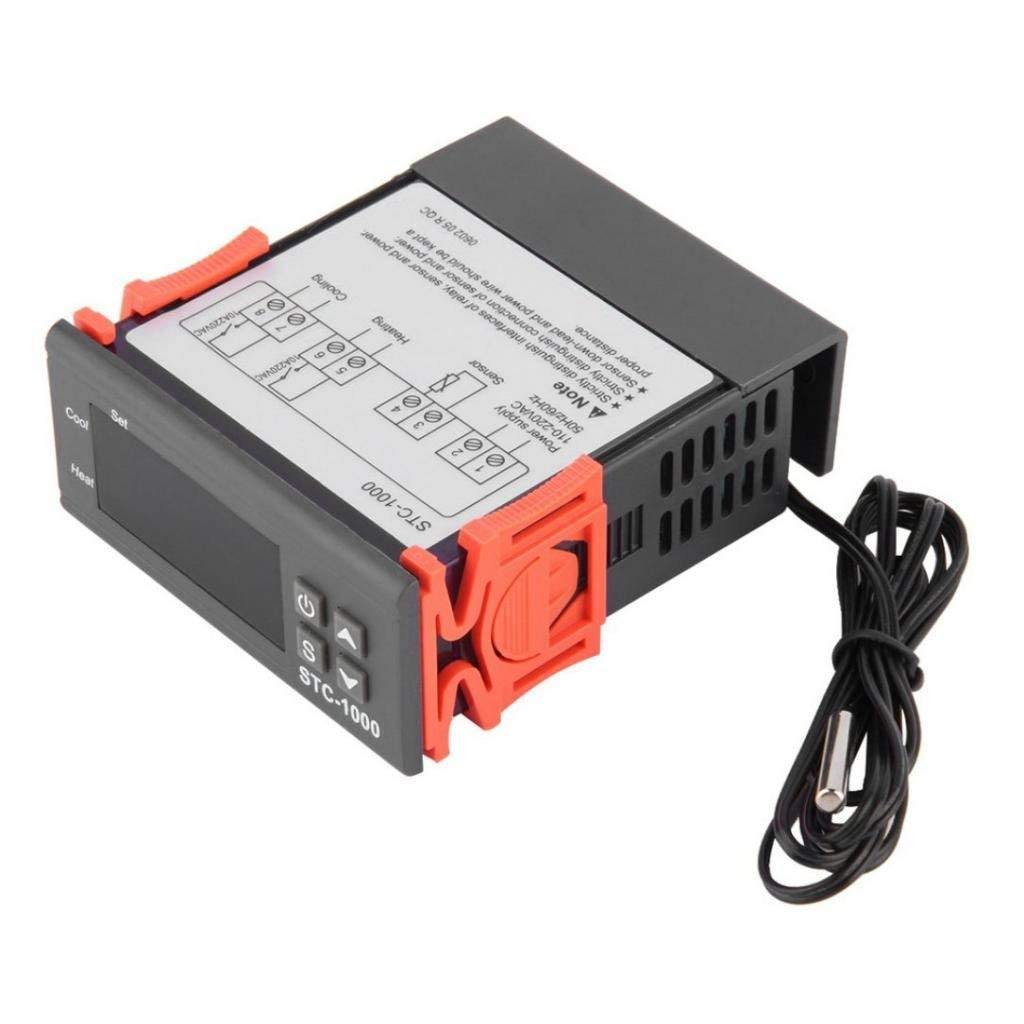

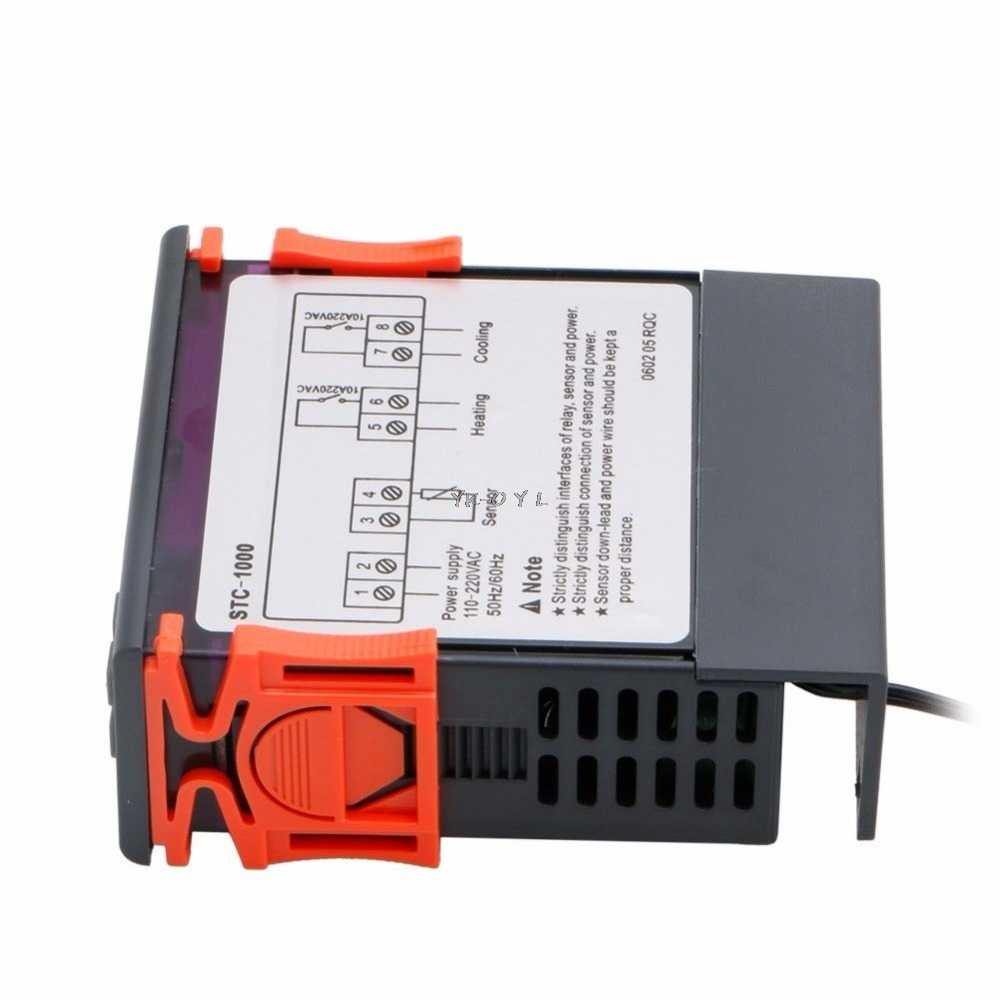

110V~ 220V AC All-Purpose Temperature Control Controller with Sensor 2 Relay Output Thermostat Stc-1000
This is a 110V~ 220V AC All-Purpose Temperature-controlled thermostat switch that can be used to control the heating/cooling of an object with the help of the NTC sensor to detect the temperature. The module is operated by the 220V AC connected at the input terminals. The Temperature module has two output ports where you can connect the equipment to heat or cool the test system.
It offers a high-temperature control precision of 0.1℃. The temperature control range from -50℃ to 99℃. The LED display shows the results clearly. One can directly install or embed the STC-1000 in the industrial control equipment panel, which is convenient and quick.
It features a 1M probe made up of stainless steel material which makes it waterproof and does not let it rust easily. Also, all the delicate and sensitive components are kept safe in ABS flame retardant housing which is avirulent and environmentally protective.
Application:
- Outdoor use uses involving potential chemical contamination or electrical interference
- Nuclear energy control systems, combustion systems, railroad systems, aviation systems
- Medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations
- Systems, machines, and equipment that could present a risk to life or property
- Domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment, and another temperature-controlled system.
Package Includes:
- 1 x Mini Digital LED Humidity Controller
Specifications:
| Working Voltage | AC220V +/-10% |
| Rated Current | 10A |
| Power Consumption | <3W |
| Measurement Precision | 1%RH |
| Control Precision | 1%RH |
| Dimensions | 8.5 x 7.5 x 3.5cms |
| Weight | 200 grams |
