Description

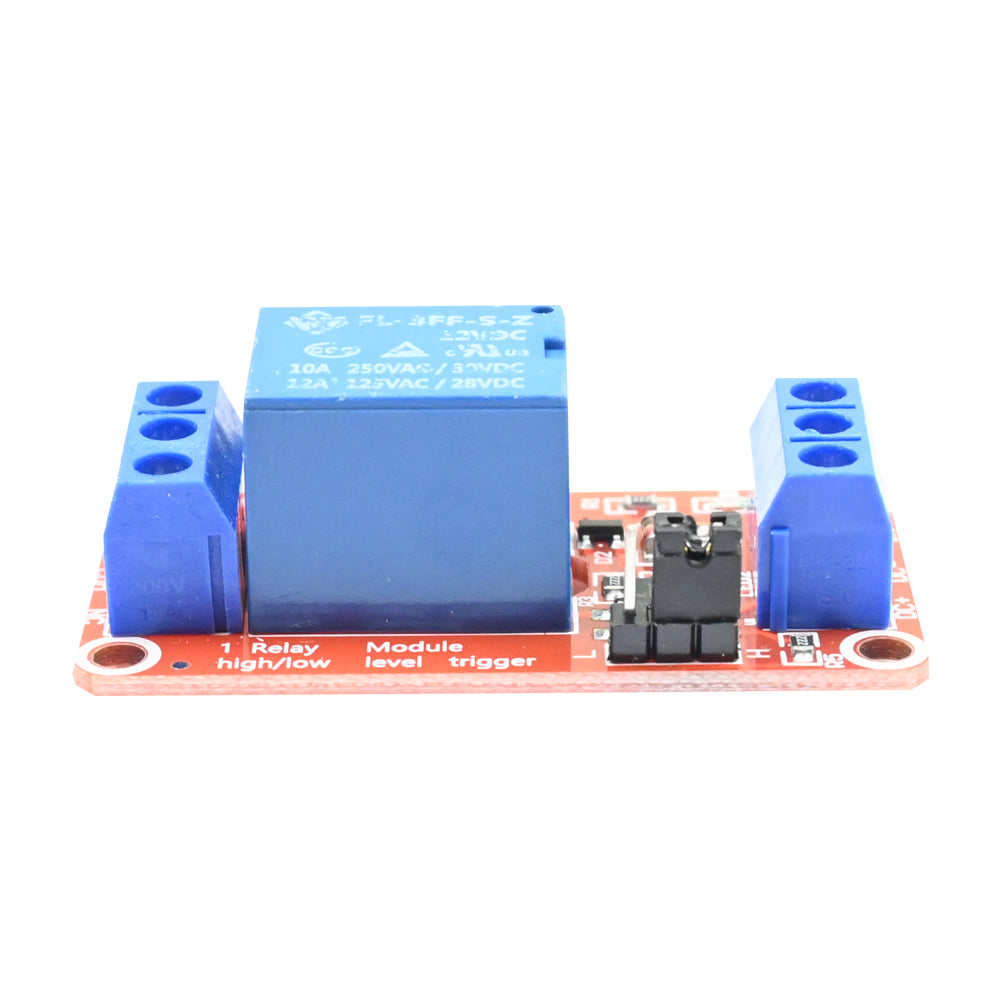

12V 1-Channel Relay module is able to control various appliances and other equipment with a large current. It can be controlled directly by a Micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
Features
- LED Status indicator
- High-quality screw terminals
- Mounting Holes
- Freewheeling Diode to protect your microcontroller
- Optocoupler to isolate the microcontroller
| Specifications | |
|---|---|
| Model No | HW-803 |
| Switching Voltage | AC 250V @10A, DC 30V @10A, 12A 125VAC/28VDC |
| Input Voltage | 12V DC |
| Type | Relay Module |
| No. of Output | 1 |
| No of Pins | 6 |
| Dimension | 50x26x17mm |
| Mounting Style | Mount |
| No. of Channel | 1 |
| Voltage rating | 12V DC |
