Description

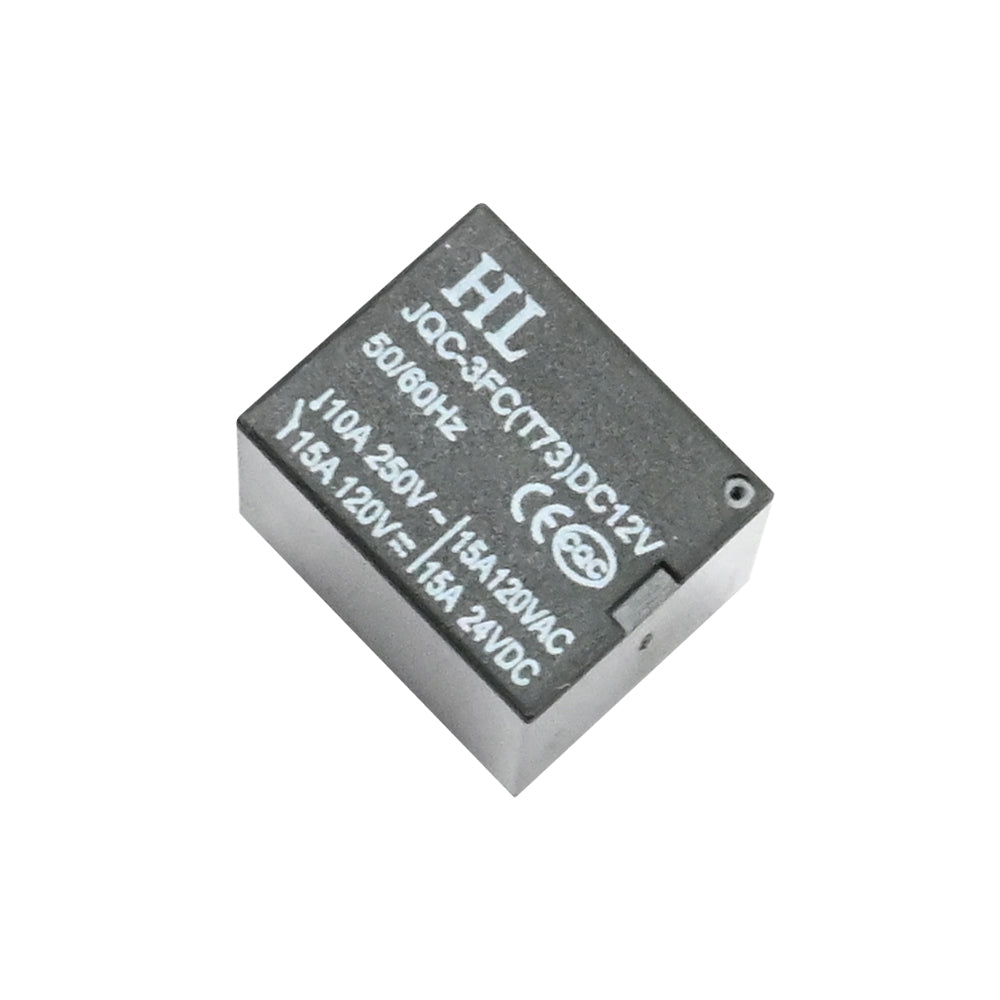

Its 12V DC 15A Relay, 12V 15A is a general-purpose relay mostly relays are used to perform switching operations without manual touch use to control the flow of current. a general purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
Applications:
- When galvanic isolation is desired, relays are employed whenever it is necessary to control a high-power or high-voltage circuit with a low-power circuit.
- Lighting control systems.
- Industrial process controllers.
- Traffic control.
- Motor drives control.
- Protection systems of electrical power system.
| Specifications | |
|---|---|
| Colour | Black |
| Switching Voltage | 10A/250VAC 15A/120VAC Relay |
| Input Voltage | 120/250V |
| No of Pins | 5 |
| Dimension | 18x15mm |
| Mounting Style | Through Hole |
| Current | 10A/15A |
| Voltage rating | Operating Voltage: 12V DC |
