Description

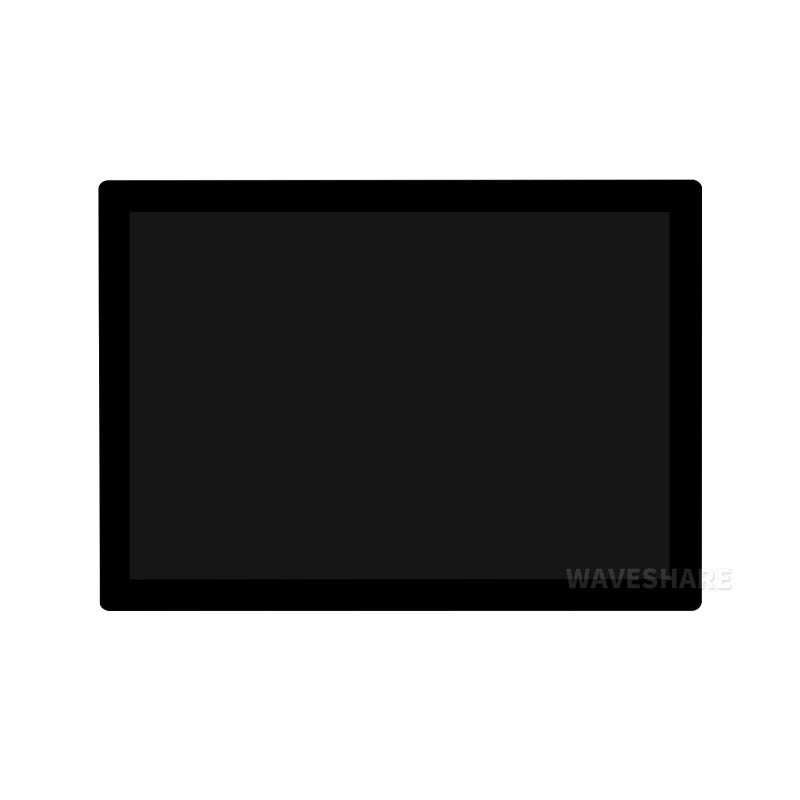

14″ 2K Capacitive Touch Display
High Resolution | Full Color | 10-Point Touch
Size
14″ |
Resolution
2160×1440 |
Display Interface
HDMI/Type-C/DP |
Display Panel
IPS |
Viewing Angle
178° |
|||||
Touch Type
Capacitive |
Touch Points
10-Point |
Touch Port
USB Type-C |
Touch Panel
Toughened Glass |
Touch Panel Tech
Optical Bonding |
|||||
OSD Menu
Brightness/Contrast |
Brightness
DCC/CI Control |
Audio Output
3.5mm Jack |
Audio Output 2
4PIN Header |
Brightness
400cd/㎡ |
|||||
Smartphone
Huawei/Samsung/OPPO... |
VESA Wall Mount
75 × 75mm |
||||||||
Device System Support
 |
Raspberry PiSupports Raspberry Pi OS, 10-point touch, driver free Jetson NanoSupports Ubuntu, single point touch, driver free PCSupports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free SmartphoneHuawei, Samsung, OPPO...(wired projection) |
Automatic Recognition Of Three Signal Sources
Supports Automatic Recognition Of HDMI / DP / Type-C Signal Sources
* for reference only, please refer to the package content for the detailed part list.
Connection Examples
Working With Raspberry Pi 5
Working With Jetson Series Board
Working With Mini PC
Working With Laptop
Working With Smartphone
- Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
- For reference only, the above controller boards or hosts are NOT included

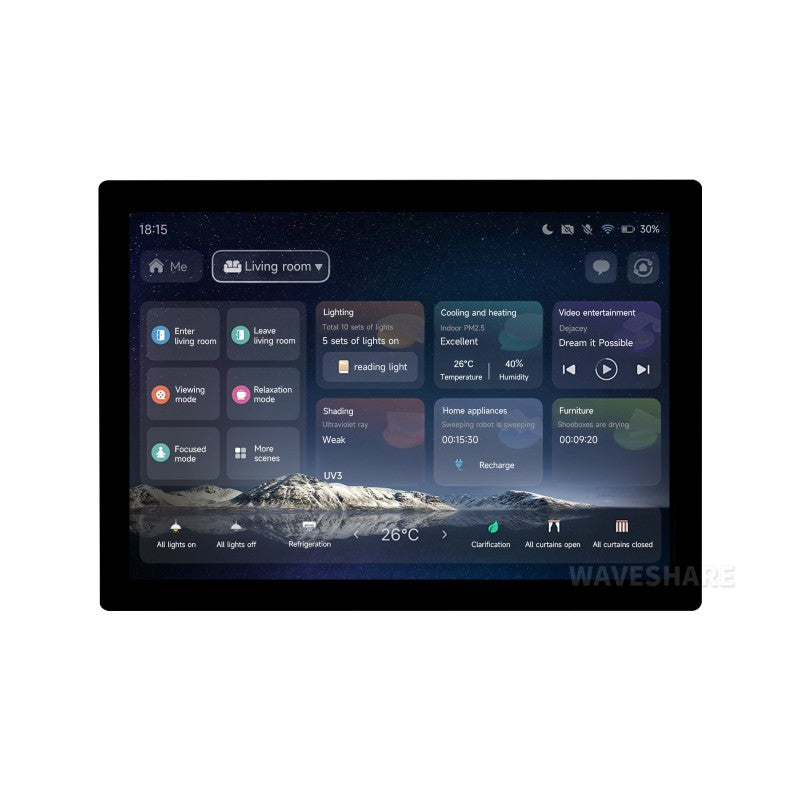

Wide Viewing Angle IPS Display Panel
Excellent Display & Color Performance
Wide Viewing Angle Up To 178°, Color Gamut Up To 72% NTSC
100% SRGB Covers More Gamut Area Of Red, Green And Blue, Designer-Professional-Grade Color Gamut
10-Point Capacitive Touch
- up to 10-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical bonding, display well and dustproof
Interface
Dimensions
Resources
Wiki: www.waveshare.com/wiki/14inch_2160x1440_LCDPackage Contains:
Weight: 1.482 kg
- 14inch 2160x1440 LCD x1
- HDMI cable ~1m x1
- HDMI to Micro HDMI adapter x1
- Type-C dual plug cable ~1m x1
- DP dual plug cable ~1m x1
- USB Type A to Type C cable ~1m x1
- Triangular stand x1
- Cleaning cloth x1
- OPTIONS 5V 3A Type-C power adapter x1
- Button board x1
- 1.27H 4PIN button board cable x1
- Capacitive touch pen x1
