Description

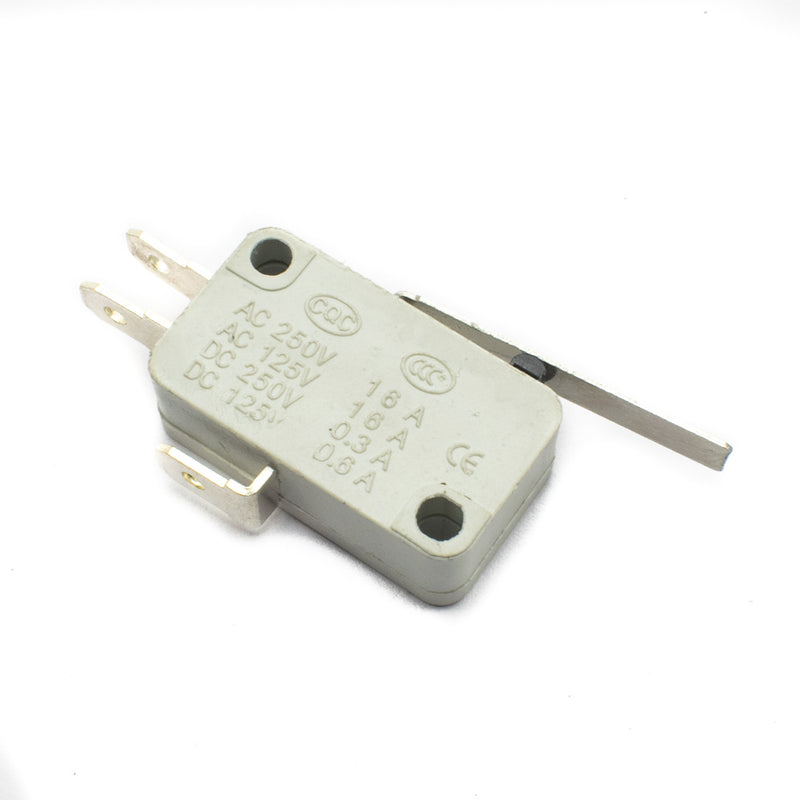

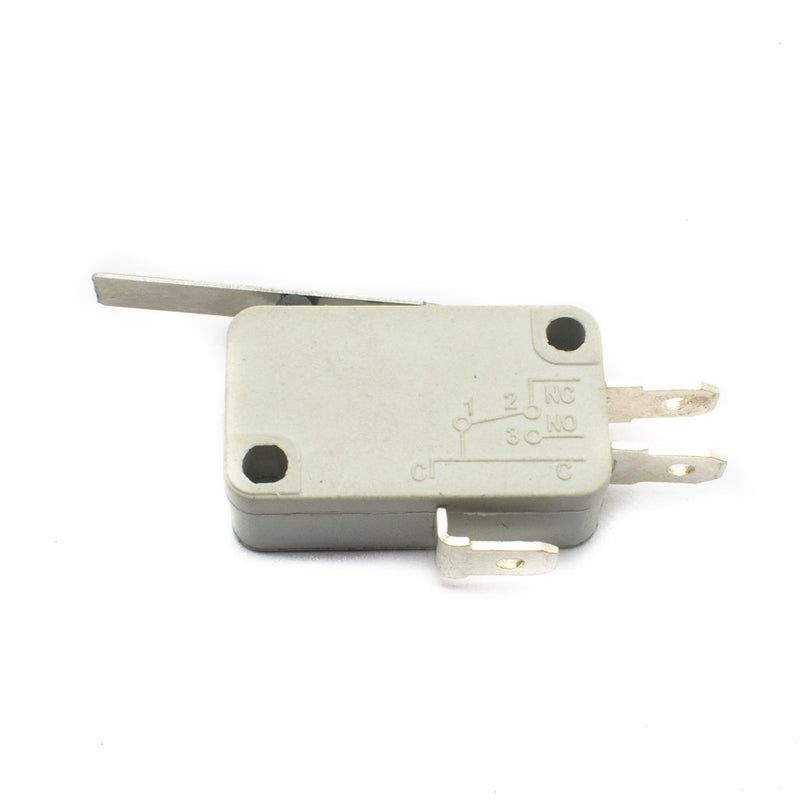

This 16A 250V Micro Limit Lever Push Button Switch uses a physical lever to actuate and operate the switch. lever switches function as simple on/off switches that operate using a lever or handle to toggle the switch between the two positions. This Single Pole Double Throw (SPDT) is a micro switch that needs a very less amount of force to operate. They are very reliable, fast and efficient to use. This switch can be configured into NO or NC (normally open -Normally closed) configuration.
Specifications
|
AC Current ratings |
250V - 16A, 125V - 16A |
|
DC Current ratings |
250V - 0.3A, 125V - 0.6A |
|
Insulation Resistance |
50MΩ 500V DC |
|
No. of pins |
3 |
| Type | SPDT |
|
Configuration |
NO and NC (Normally open- Normally closed) |
|
Lever Size |
27.6mm |
|
L*B*H |
48.1*20.9*9.6mm |
| Country of Origin | China |
