Description

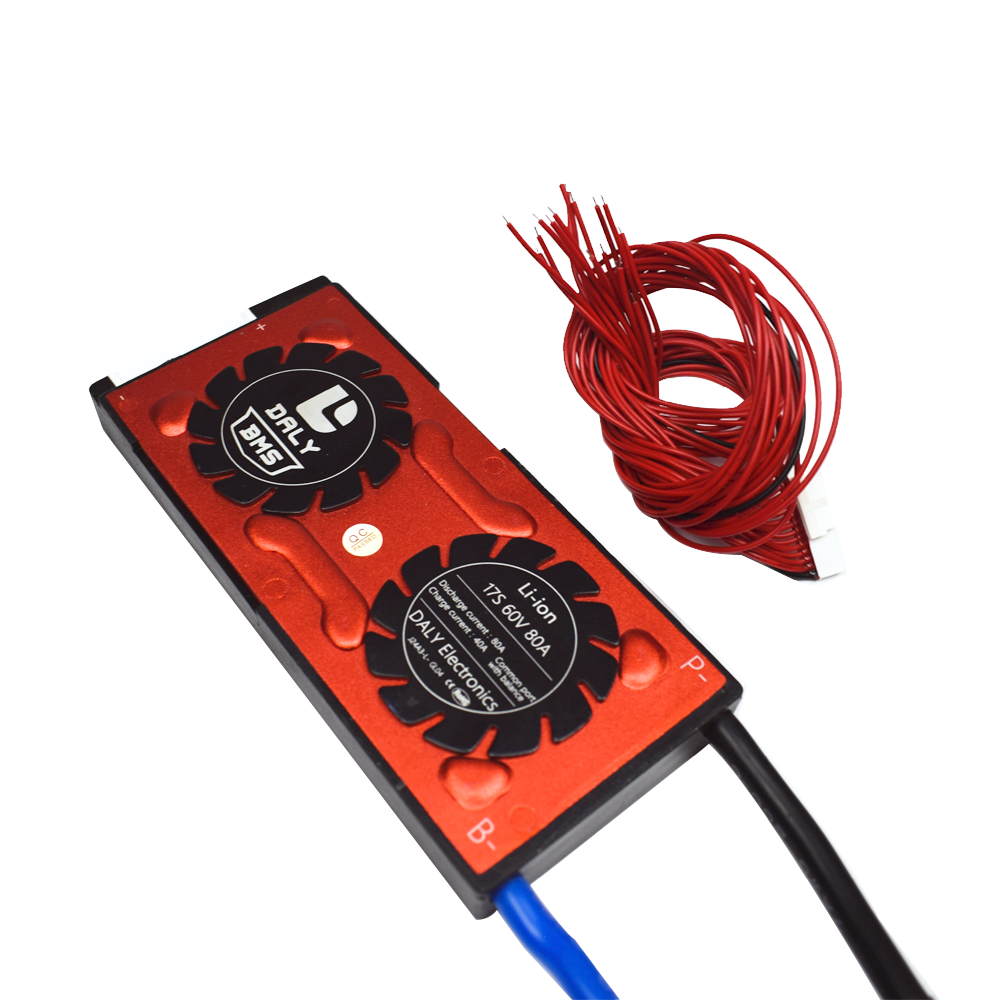

LIKRAFT LI-ION 17S 60V 80A is a smart BMS - A battery management system designed to monitor battery status and control the charging and discharging process.
This charge-discharge controller module can accommodate a simultaneous connection of 17 rechargeable batteries in series. The module is protected from overcharge, over-discharge, and short circuits. When at least one battery reaches its maximum capacity, the charge controller, among its functions, is to cut off the electricity to the batteries.
80 Amp is the maximum permitted current. The charge controller engages the protection mode if the supplied voltage exceeds the maximum permitted value. The Monitor port is also there to check the battery health status. And it comes with RS - 485 and UART communication protocol. This BMS is designed to maximize battery life. The NTC port is there to measure the temperature of BMS
Features
- Overcharge protection.
- Over-discharge protection:
- Over-discharge protection recovery:
- Overcurrent protection:
- Overcurrent protection recovery:
- State of charge calculations.
- Cell overvoltage and under-voltage protection.
- Intelligent battery balancing
Applications
- Solar street lamp
- Backup power
- Energy storage
- Electrical vehicle
Specifications
| Model |
J24A3-L-GL04 |
| Brand | Likraft |
| Type | Battery Management System |
| Discharge Current | 80A |
| Charge current | 40A |
| Communication interface | UART |
| Maximum voltage | 60V |
| Dimensions | 150 x 66.5 x 19mm |
| Country of Origin | China |
