Description

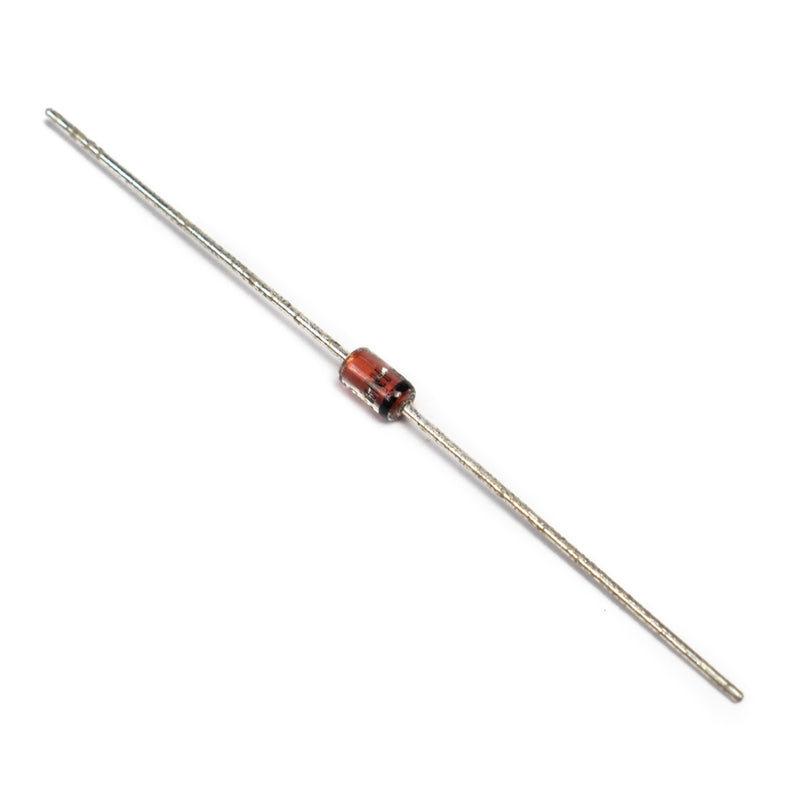

This 1N4737 Zener diode is another form of diode which comes in a Through-hole package. Zener diode will mostly be used in a protection circuit or in a crude voltage regulator circuit. Either way, it is very important to remember that a Zener diode should always be used along with a Zener resistor. The 1N4737 7.5V Zener Diode has a nominal voltage of 7.5V and like other types of Zener diodes, it can be used as a reference element in voltage regulation, and it can also be used in switching applications and clipper circuits.
Features
- Silicon Planar Power Zener Diodes
- For use in stabilizing and clipping circuits with a high power rating.
- The standard Zener voltage tolerance is ±10%.
- High reliability
- Very sharp reverse characteristics.
Specifications
|
Diode Number |
1N4737 |
|
Voltage Rating |
7.5V |
|
Power rating |
1W |
|
Number of terminals |
2 |
|
Package type |
DO-41 |
|
Mounting type |
Through-hole |
|
Tolerance |
± 5% |
|
Storage Temperature |
-65°C to 175°C |
| Country of Origin | China |
