Description

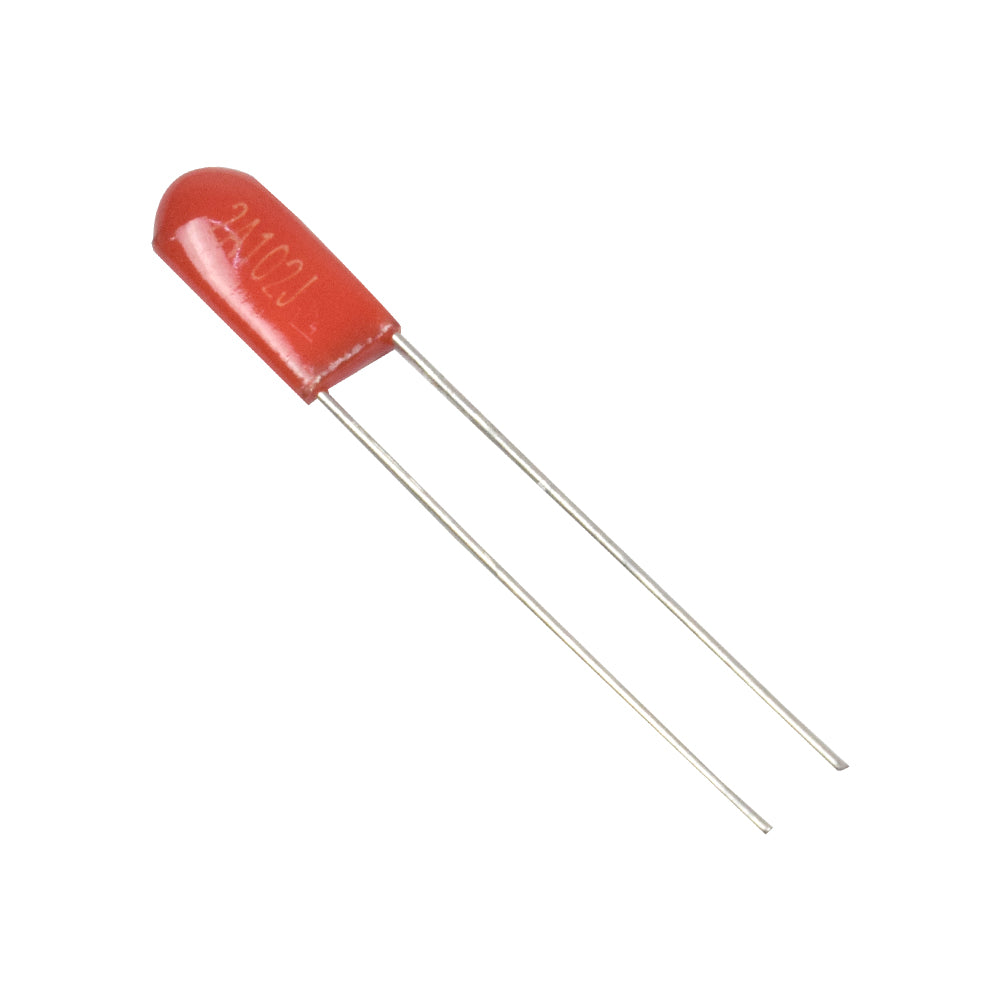

The polyester capacitor is made of two metal plates with the polyester film sandwiched between them, or the insulator might be covered with a metalized film.
Polyester is the most widely utilised dielectric material in this capacitor, allowing the capacitor's construction to be simplified. These capacitors are pretty inexpensive and have excellent self-healing properties.
The dielectric & construction of polyester PET capacitors are used in different applications wherever sharp; spikes of quick rise time are there when they contain high dV/dt.
Applications
- This capacitor is used where maximum levels of peak current need to handle
- Used in different low-frequency pulsating & DC circuits
- Used for filtering wherever high levels of tolerance are not necessary.
- Used in the applications of coupling, decoupling & blocking of DC
- Used in power supplies wherever the levels of the highly high capacitance of electrolytic capacitors are not required.
Specification
| Capacitor Value | 0.001µF/ 1nF |
| Rated Voltage | 100V |
| Tolerance | ±5% |
| Mounting Type | Through Hole |
| Type | Polyester Film |
| Quantity | 1Pcs |
| Pitch | 3.8mm |
| Dimension (L*W*D) | 9.8*5.0*3.1 (mm) |
| Country of Origin | China |
