Description

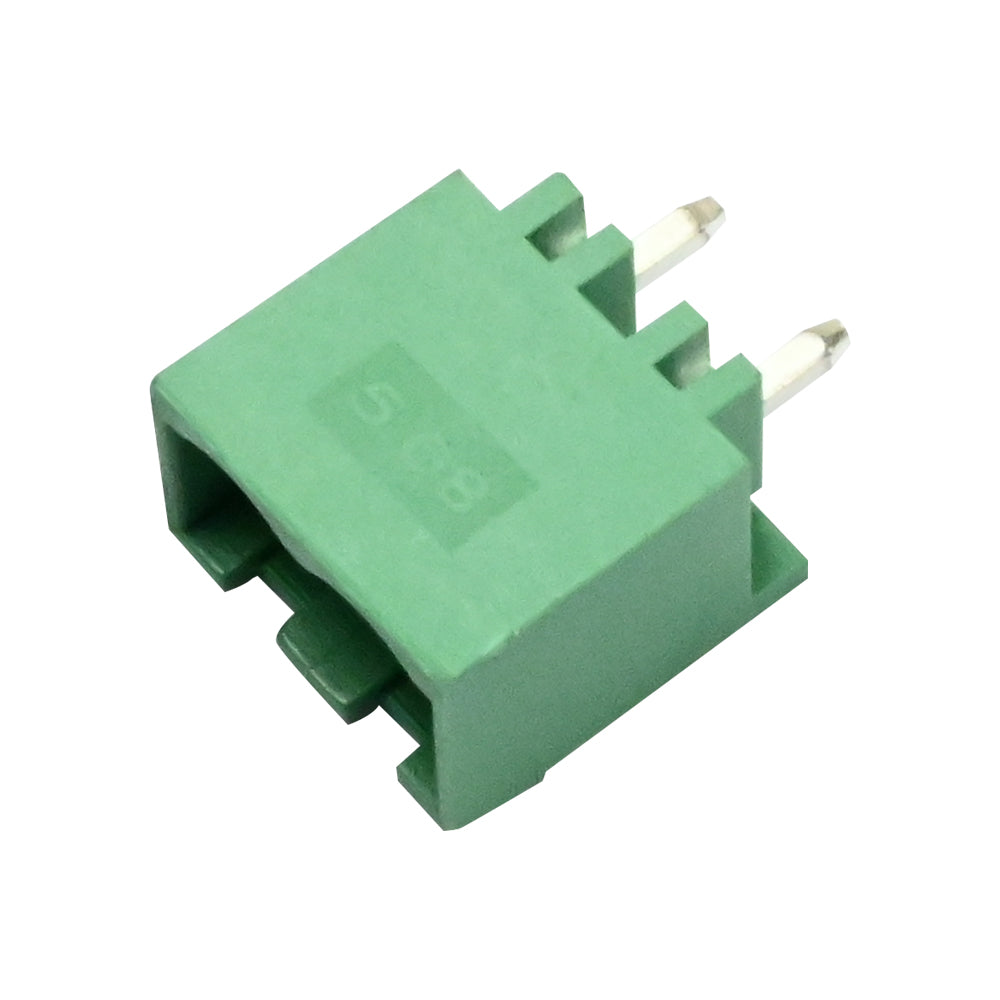

It's a 2-Pin Male Pluggable Terminal Connector Pitch 5.08mm. It is appropriate for use when the PCB is placed inside the enclosure and connections must be accessible from the outside. The wires are held in place by a screw in the connector. Male Connectors are right angle and will fit on the THT PCB Board. A terminal block connector is a component consisting of a plastic housing with metal holdings that is used to connect wires to a circuit. A terminal block is a modular housing with an insulated body that connects two or more wires.
| Specifications | |
|---|---|
| Dimensions | Male: 12x12x7mm |
| Colour | Green |
| No. of Pins | 2 |
| Wire Gauge | 28-14AWG |
| Voltage Rating | 300V |
| Current Rating | 15A |
| Pitch | 5.08mm |
| Gender | Male |
| Type | Plugin Terminal Connector |
| Material | Plastic |
| Mounting Type | Through Hole |
