Description

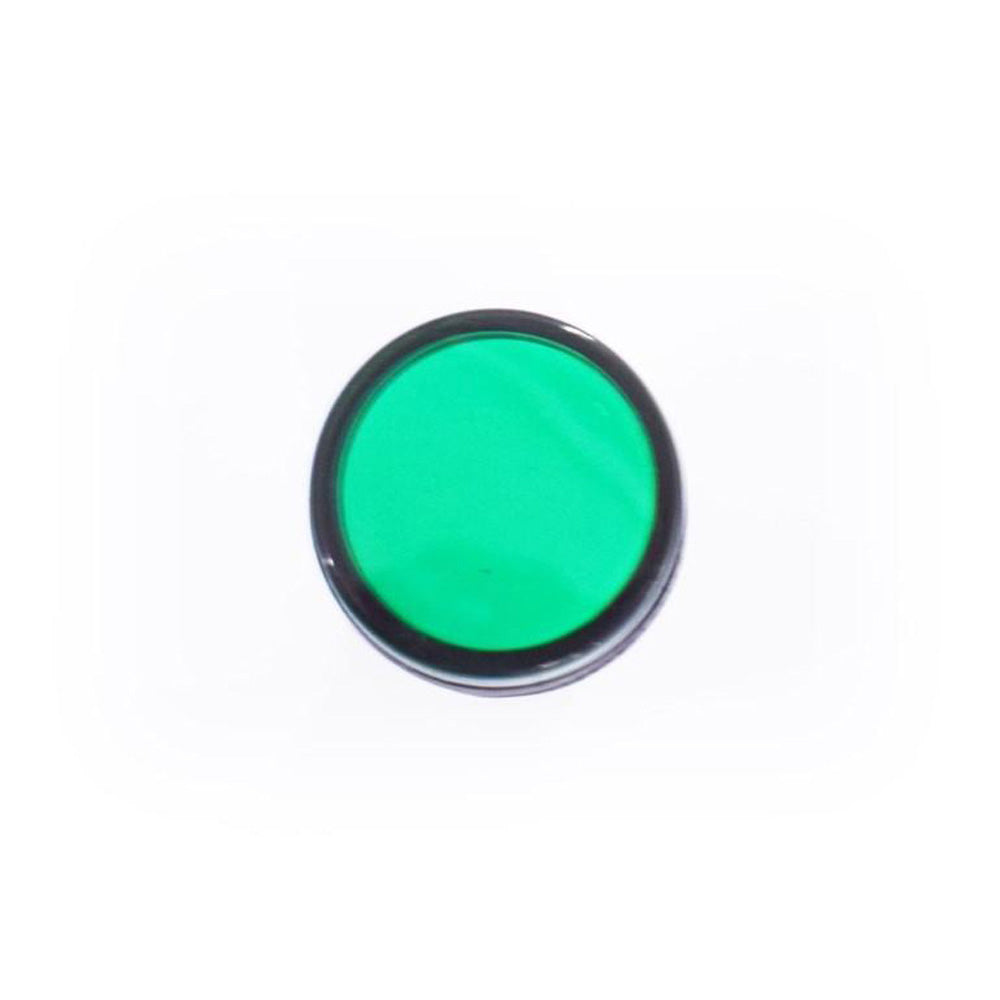

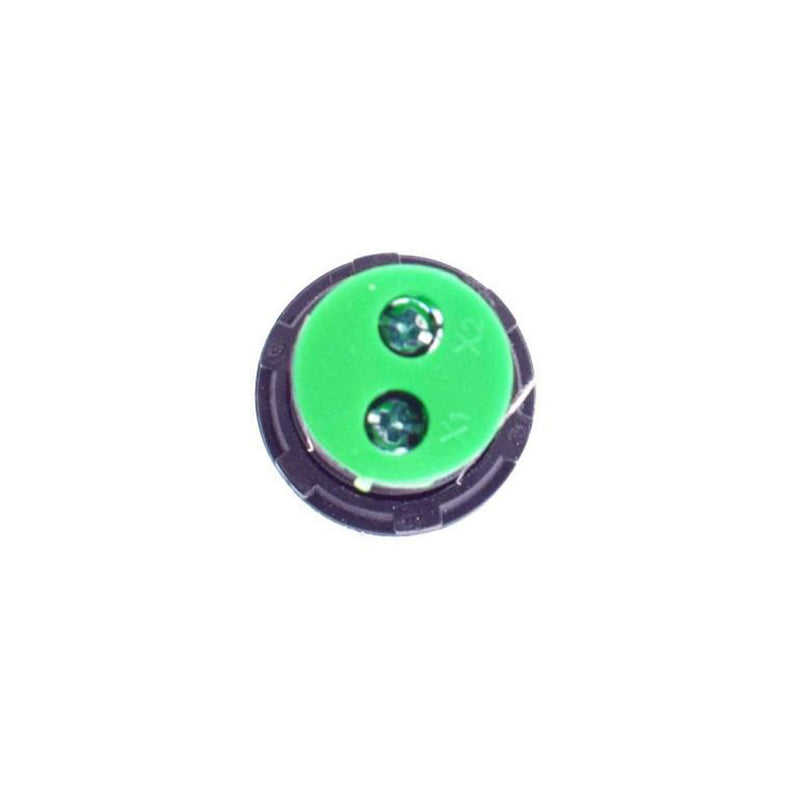

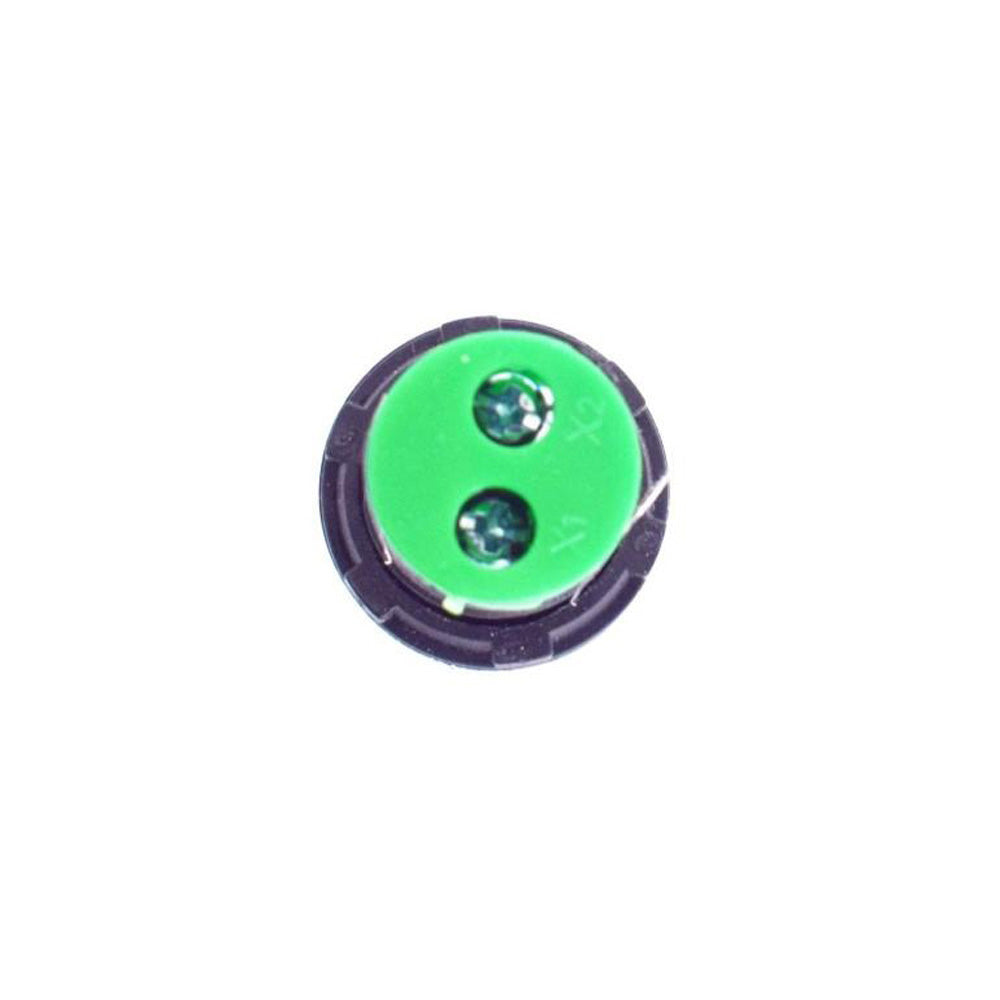

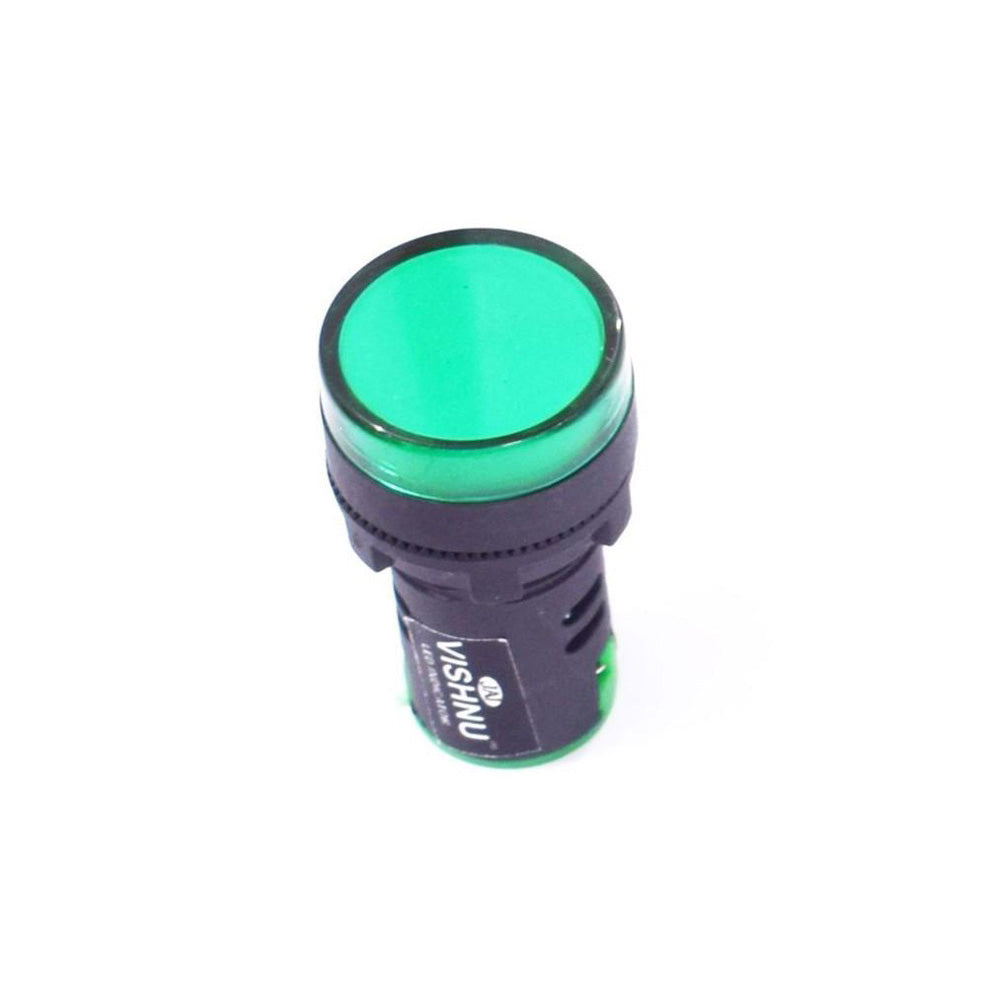

It's a 230V AC Green Indicator Led Light consist of back panel lock nut fixing and screw clamp terminals for easy mounting and connection. This indicator works on 220V AC and have ac insulation withstand of 2.5kV AC.
Features
- Fit for 22mm (7/8 Inch) hole and secure it with screw ring.
- High brightness LED for easy recognition. Screw-clamp for easy connection and strong conductivity.
- Widely use in electric power, telecommunications, machine tool, motor, home appliances.
- This indicator is green in colour. We also have red colour indicator. Please find the link for the red colour indicator:
Specification
| Operating Voltage | 220V AC |
| Colour | Green |
| Maximum Current | 20mA |
| Length | 50 mm |
| Lower Diameter | 20 mm |
| Upper Diameter | 28 mm |
| Insulated resistance | 2 Mohms |
| Continual working life | 30000 hours |
| Country of Origin | China |
