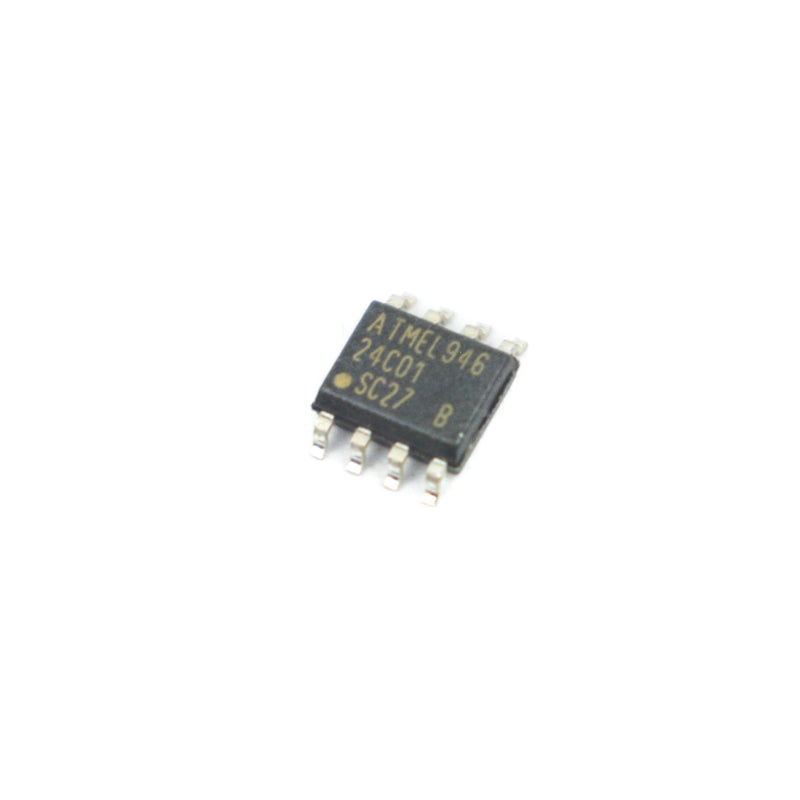

Description
The 24C01 provides 1024 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 128 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential.
Features
- Low Voltage and Standard Voltage Operation
- Operating Voltage-2.7 to 5.5V
- Internally Organized - (1K) 128 x 8
- 2-Wire Serial Interface
- High Reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
Specification
| Model | 24C01 |
| Packaging type | SMD |
| Memory Size2- 3 mA @ 5.5 v | 1K-bits |
| Memory Format | EEPROM |
| Memory Type | Non-Volatile |
| Operating voltage | 2.7 V to 5.5 V |
| Operating Temperature | -55°C to +125°C |
| Storage Temperature | -65°C to +150°C |
|
Current consumption Stand by Active |
18 μA at 5.0V 2- 3 mA at 5.5 v |
| Quantity | 500 |
| Country of Origin | China |
