Description

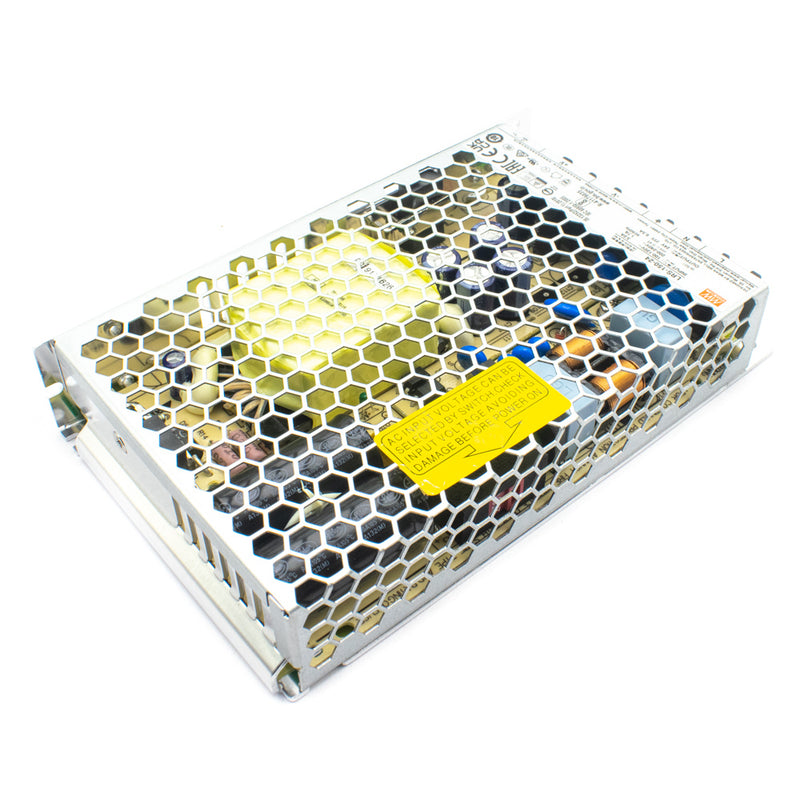

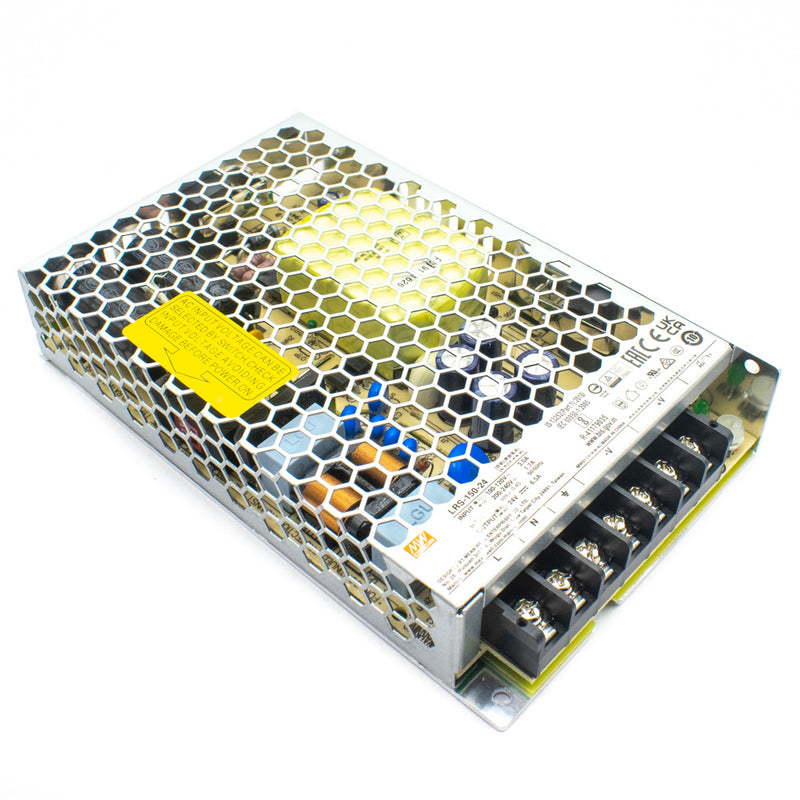

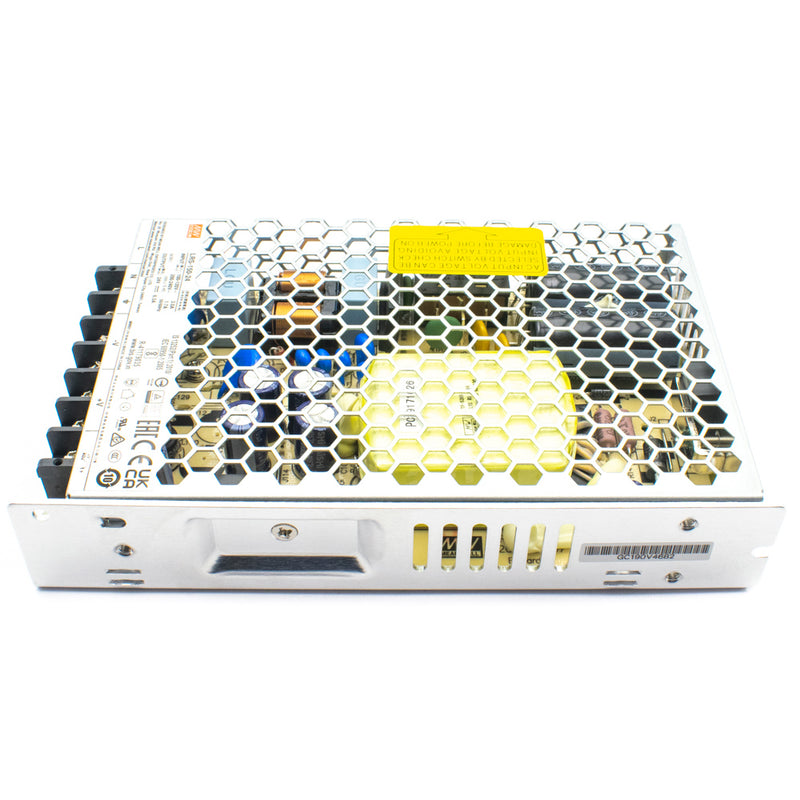

Meanwell's LRS-150 series is a 150W single-output enclosed type power supply with 30mm of low profile design. The AC input is 85~264VAC which could be directly supplied from the house supplied voltage. The output from SMPS will be 24V. The SMPS has high efficiency up to 89%, the design is of metallic mesh case which enhances the heat dissipation of LRS-150 that the whole series operates from -30°C through 70°C under air convection without a fan. It has extremely low no-load power consumption (less than 0.5W), which allows the end system to easily meet the worldwide energy requirement. Meanwell's LRS-150 has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as TUV EN60950-1, EN60335-1,EN61558-1/-2-16, UL60950-1 and GB4943. LRS-150 series can be used for many purposes with the best performance from it.

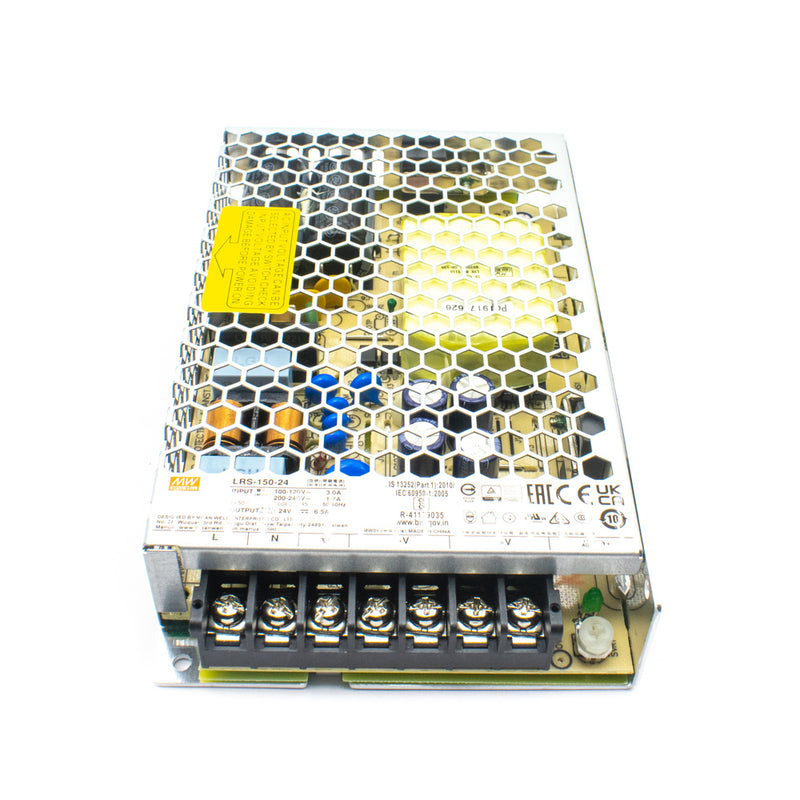

Pinout
| Pin No. | Pin name | Description |
| 1,2 | AC/L&N | Supplied AC Voltage (85 ~ 264VAC) |
| 3 | FG | GND |
| 4,5 | V- | DC OUTPUT -V |
| 6,7 | V+ | DC OUTPUT +V (24V) |
Features
- AC input range selectable by switch
- Protections from Short circuit, Overload, Over voltage and over temperature.
- Cooling by free air convection
- It has a LED for indicating power on.
- 100% full load burn-in test
- Using 105°C long life electrolytic capacitors for better performance
- Withstand 300VAC surge input for 5 second
- Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, 2-16 for household appliances
- High operating temperature up to 70°C
- Miniature size and 1U low profile
- Withstand 5G vibration test
- No-load power consumption<0.5W
- High efficiency, long life and high reliability
Specifications
| Input Voltage | 115V~240V AC |
| Output Voltage | 24V |
| Maximum Output Current | 6.5A |
| Rated Power | 156W |
| Efficiency | 89% |
| Operating Temperature | -30°C to 70°C |
| Size | 159x97x30mm |
| Country of Origin | China |
