Description

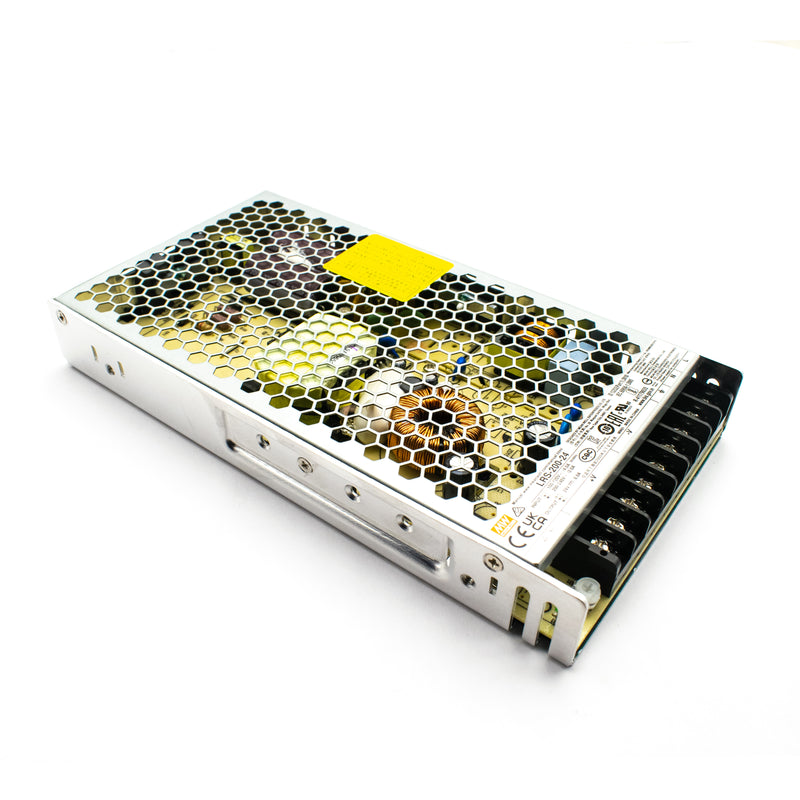

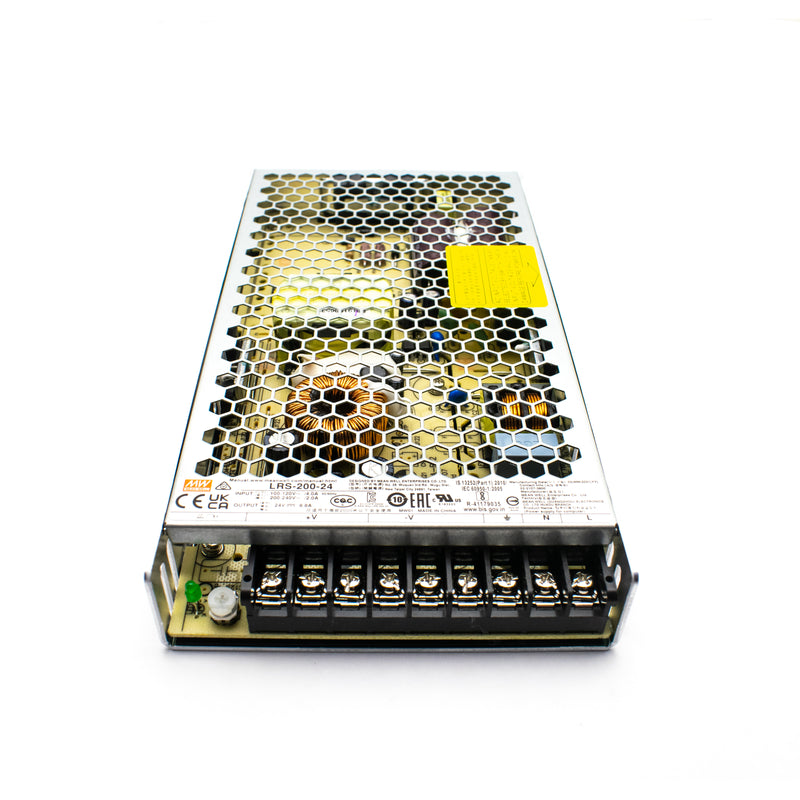

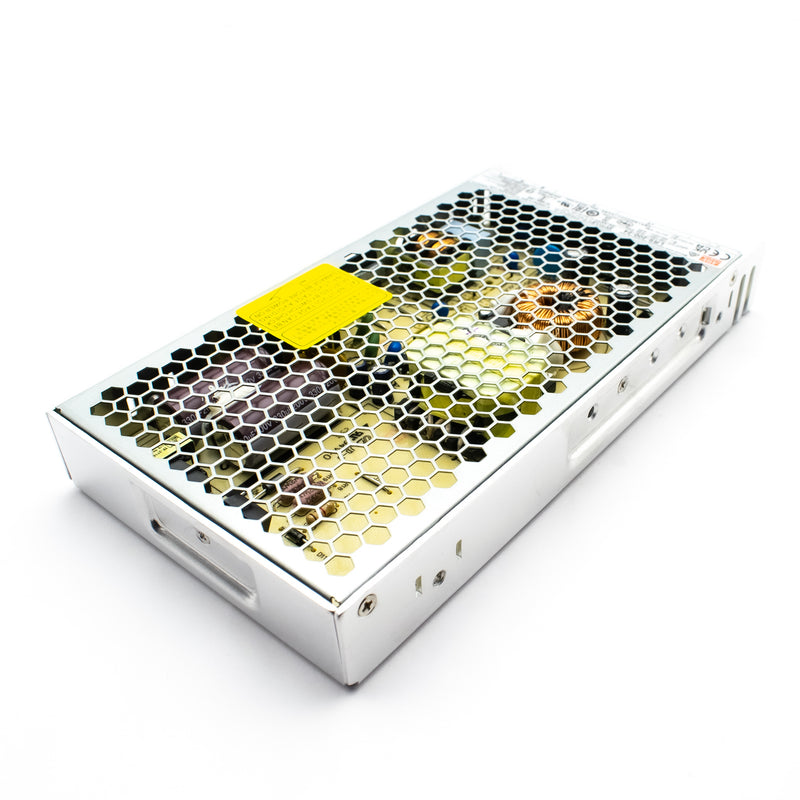

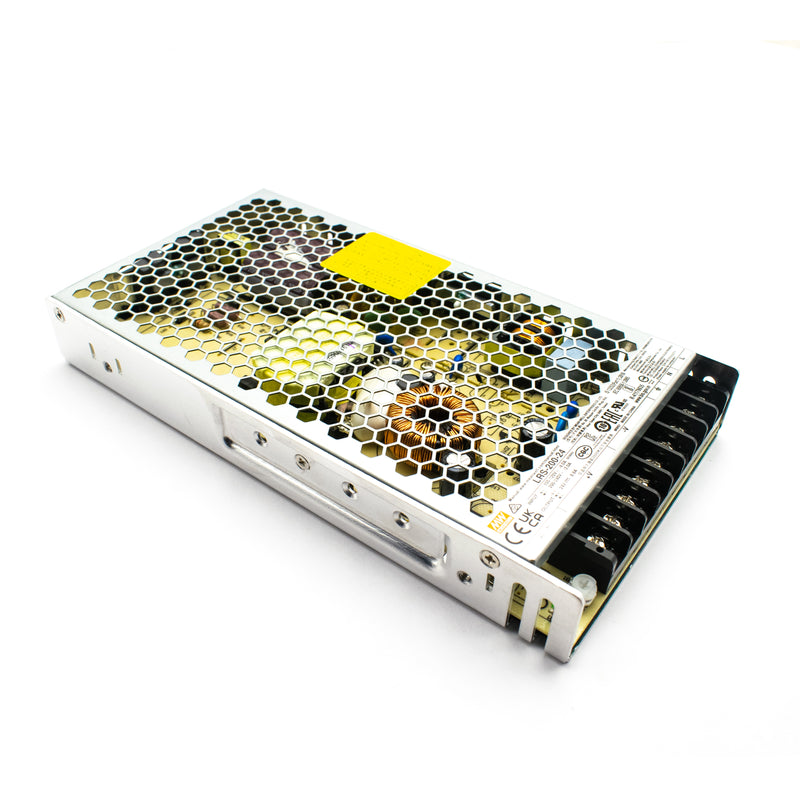

LRS-200-24 is a 211W 24V 8.8A single-output enclosed type power supply with 30mm of low profile design. It supports input power of 100-120V AC @4A, 200-240V AC @2.0A and provides a 24V output with a maximum load current of 8.8A. In addition to the high efficiency of up to 90%, the design of the metallic case enhances the heat dissipation of LRS-200-24 that operates from -25°C to 70°C under air convection without a fan. Delivering an extremely low no-load power consumption (less than 0.75W), allows the end system to easily meet the worldwide energy requirement. Meanwell's LRS-200-24 has complete protection functions and 5G anti-vibration capability; it complies with the international safety regulations such as UL 60950-1. Meanwell's LRS-200-24 is a high-quality Industrial Grade SMPS. The LRS200-24 SMPS is a 200 watt SMPS that outputs 24 volts. Meanwell's LRS-200 -24 switching power supply has a mesh casing and is simple to install.
Feature
- AC input range selectable by switch
- Withstand 300V AC surge input for 5 second
- Protections: Short Circuit / Overload / Over Voltage / Over Temperature
- Cooling by free air convection
- 1U low profile
- Withstand 5G vibration test
- LED indicator for power on
- No-load power consumption<0.75W
- 100% full load burn-in test
- High operating temperature up to 70°C
- High efficiency, long life and high reliability
Specifications
| Model | LRS-200-24 |
| Brand | Meanwell |
| DC Voltage | 24V |
| Rated Current | 8.8A |
| Rated Power | 211W |
| Ripple & Noise | 150mVp-p |
| Voltage Adj. Range | 21.6V~28.8V |
| Voltage Tolerance | 1% |
| Line Regulation | 0.5% |
| Load Regulation | 0.5% |
| Setup, Rise Time | 1300ms, 50ms/230V AC, 1300ms, 50ms/115V AC at full load |
| Hold Up Time |
16ms/230V AC, 12ms/115V AC at full load |
| Voltage Range |
90~132V AC/ 180~264V AC by switch 240~370V DC (switch on 230V AC) |
| Frequency Range |
47~63Hz |
| Efficiency |
89.5% |
| AC Current |
4A/115V AC, 2.0A/240V AC |
| Over Load | 110~140% rated output power Hiccup mode recovers automatically after the fault condition is removed. |
| Over Voltage |
28.8V~33.6V |
| Working Temperature |
-25°C to 70°C |
| Working Humidity |
20~90% |
| Size |
215x115x30mm |
| Country of Origin | China |
