Description

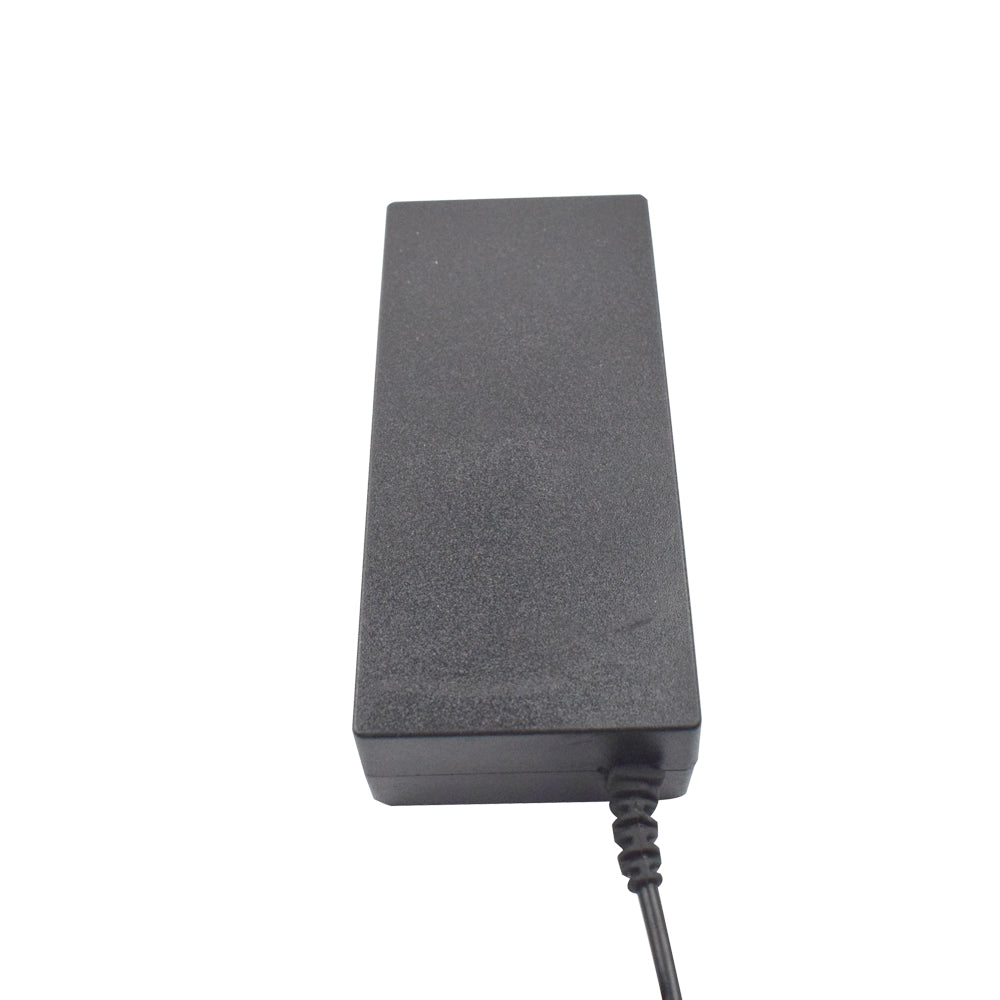

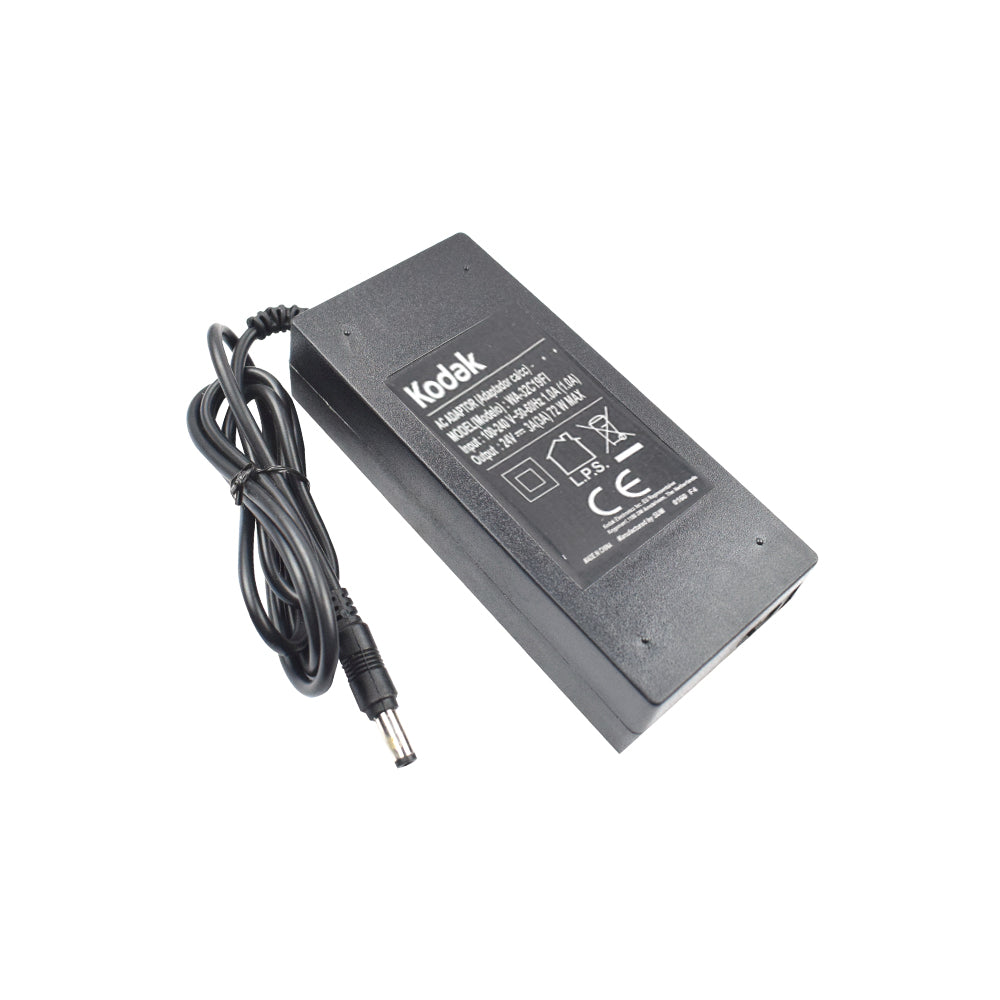

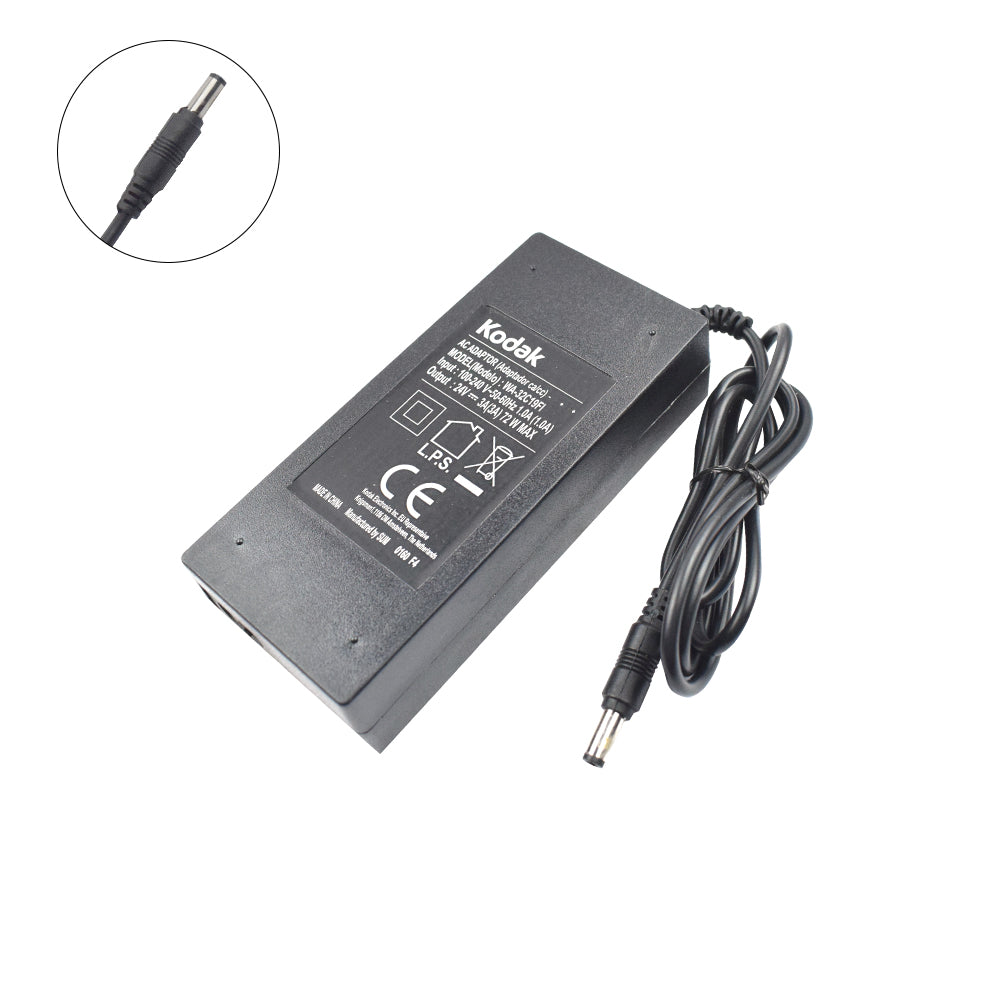

Its 24V 3A AC-DC Power Supply Adapter switched-mode power supply (SMPS) AC power adapter which converts 100-240V AC to 24V DC. It can provide up to 3A maximum current. LPS rated power supply is designed for safety reasons to conform to a maximum permitted output voltage, output current and output power rating. All types of protections are provided in the supply. It can be used in various applications like Printer, Camera, Laptop other Appliances.
Features :
- Output Over Voltage Protection, Over Current Protection, Short Circuit Protection and Surge Protected output are provided.
- Low Ripples
- High Efficiency, Reliability & low energy consumption
- Good Quality SMPS Based Adapter
- High Reliability
- Excellent Quality
- Regulated Stable Voltage
- Compact size & light weight
- It's plug design is for Indian power socket so, no plug converter is required
Specifications:
| Power Capacity | 72W Max |
| Input voltage (AC) | 100-240V (50-60 Hz) |
| Output voltage (DC) | 24V |
| Output current | 3A |
| Dimensions | 128mm X 55mm X 27mm |
| DC Output Cable Length | 1 meter |
| DC Type | DC jack |
| DC Jack Inner | 1.7mm |
| DC Jack Outer | 5.5mm |
| AC Socket interface | 2-Pin Socket |
| Brand | Not Specified |
| Country of Origin | China |
