Description

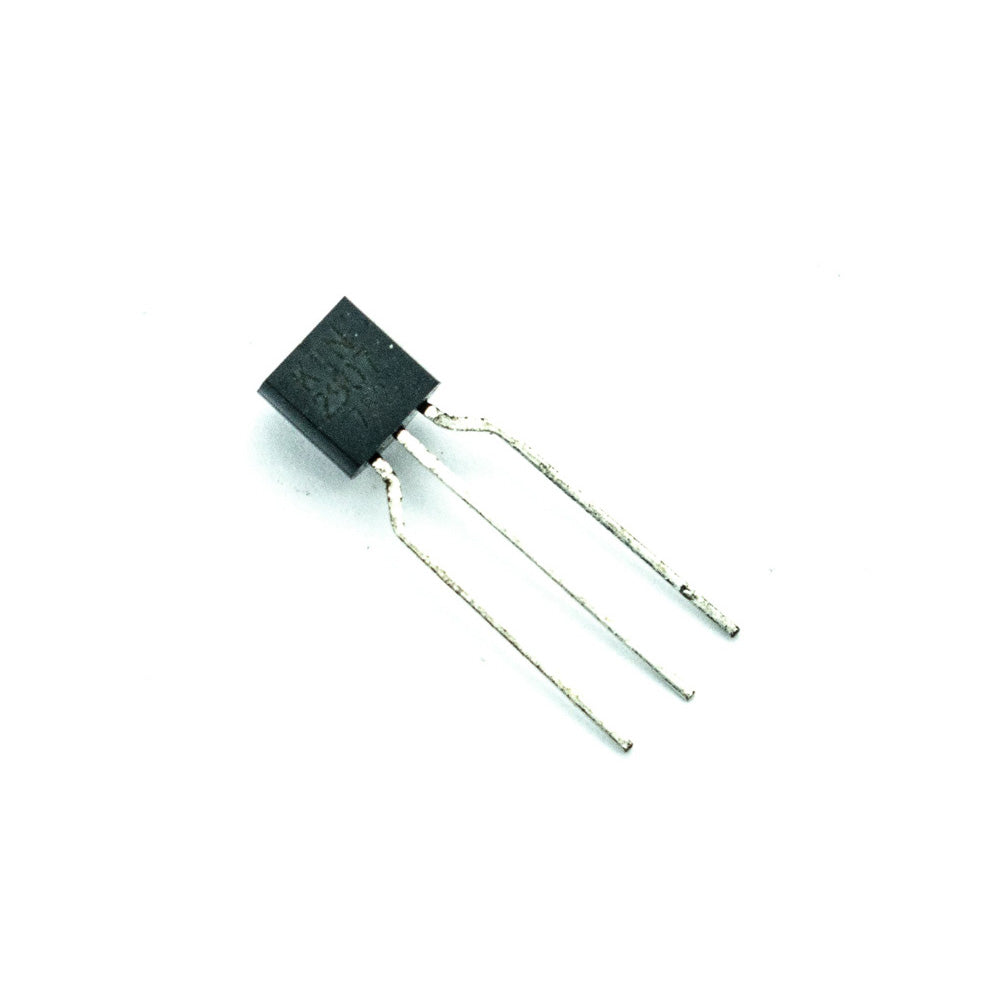

2N2907A is a semiconductor device used to amplify or switch electronic signals and electrical power. It is composed of semiconductor material usually with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals controls the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal. Today, some transistors are packaged individually, but many more are found embedded in integrated circuits.
Features:
- Its used in switching applications
- Its polarity is PNP
- Its Collector Base Voltage (VCBO) 60V
- Its collector current 600mA
Specification
| Part Number | 2N2907A |
| Transistor Polarity | PNP |
| Collector Base Voltage (VCBO) | 60V |
| Collector Emitter Voltage (VCEO) | 60V |
| Emitter Base Voltage | 5V |
| Continuous Collect Current (Ic) | 600mA |
| Input Capacitance (Cib) | 30pF |
| Output Capacitance | 8pF |
| DC Current Gain (hFE) | 100-300 |
| Power Dissipation | 625mW |
| Country of Origin | China |
