Description

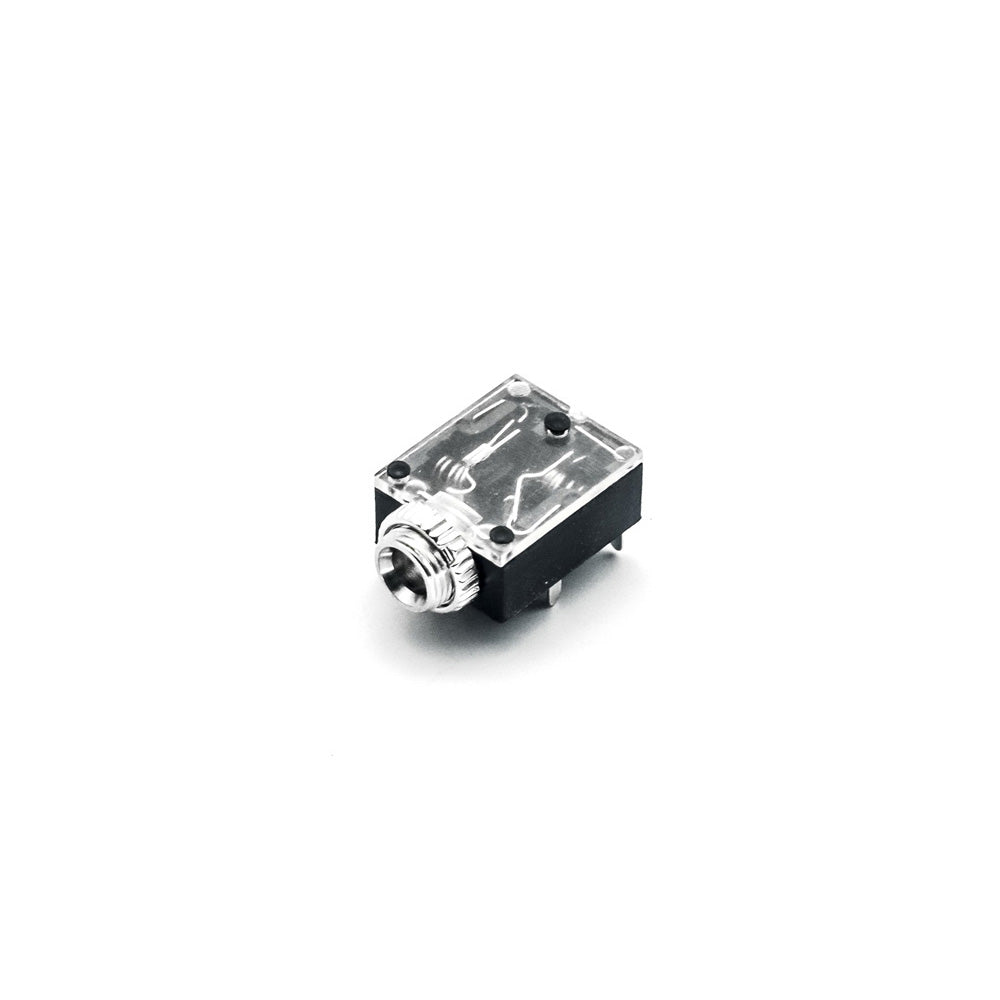

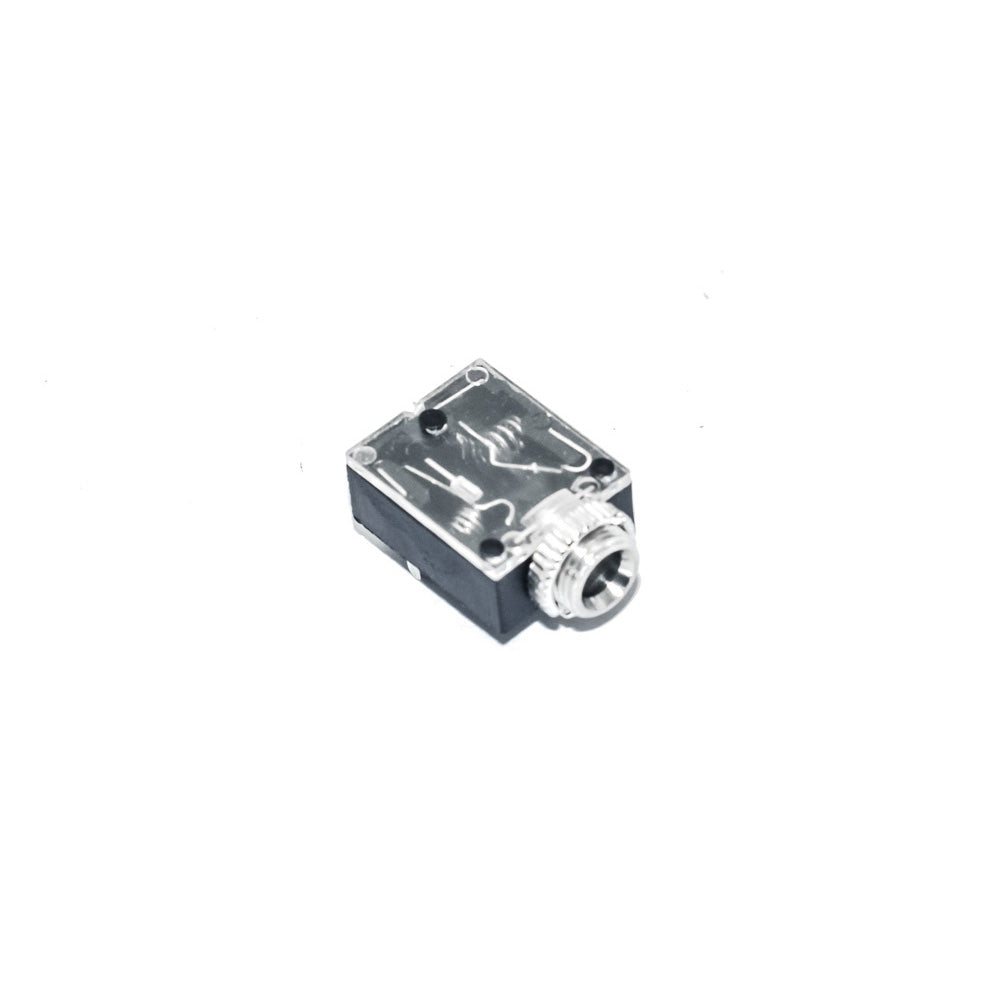

It's a 3.5mm Stereo Audio Jack Socket. The screw size is 3.5mm Long and 5.8mm Diameter. The rated voltage for this socket is 30V 0.5A and contact resistance is 0.03ohm .
Specification
| Screw Size | 3.5mm Long, 5.8mm Diameter |
| Rated Load | 30V 0.5A |
| Contact Resistance | 0.03 ohm |
| Operating Temperature | -30°C to 70°C |
| Dimension | 11.8x14x6.2mm |
| Country of Origin | China |
