Description

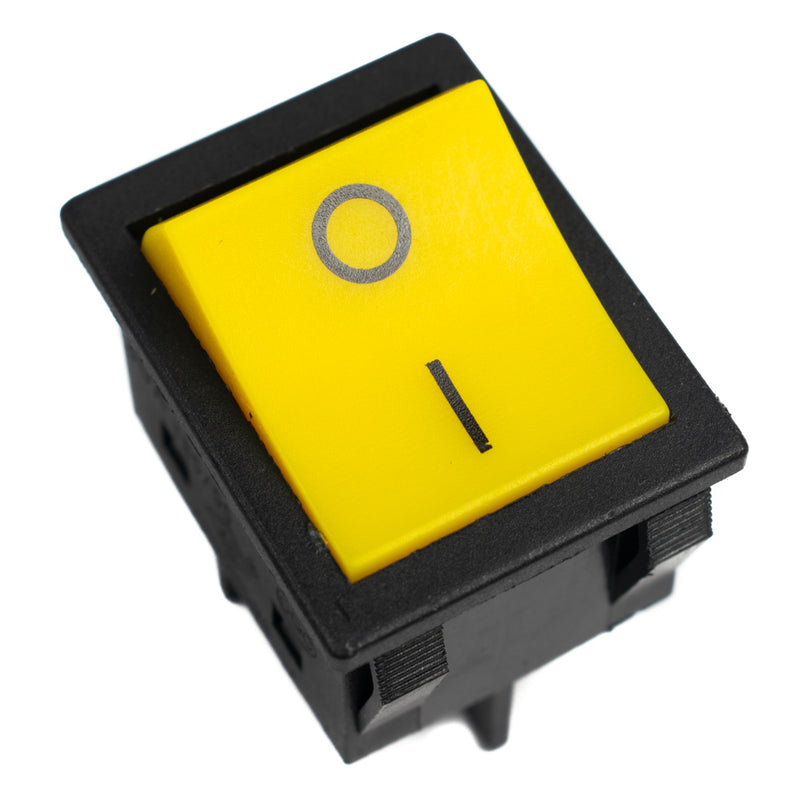

This is a basic 30A 250V DPST ON-OFF Rocker Switch, perfect for controlling power to electronic circuits, robots, etc. DPST (Double Pole Single Throw) Rocker Switch is an electromechanical switch. DPST Rocker Switch is very easy to install as it does not require any screw or nut-bolt in its installation. DPST Rocker Switch can operate on 30A 250V AC. DPST switches have 2 input and 2 output pins. Each input pin has a corresponding output pin. DPST Rocker Switch is majorly used in applications like robot motors, cars and motorcycle DC motors. It is not a momentary switch, it remains in the position even after the switch is released.
Specifications
| Model | KCD4-201N-B |
| Rating | 30A@250VAC |
| Switching Mode | ON-OFF |
| Structure | DPST |
| Type | Locking |
| Material | Plastic and Metal |
| Dimension(LxWxH) | 31.8x25x38.6mm (Including Pins Height) |
| Indicator Light | No |
| Colour | Yellow |
| Number of Pins | 4 |
| Operating Temperature | -20℃ to 85℃ |
| Country of Origin | China |
