Description

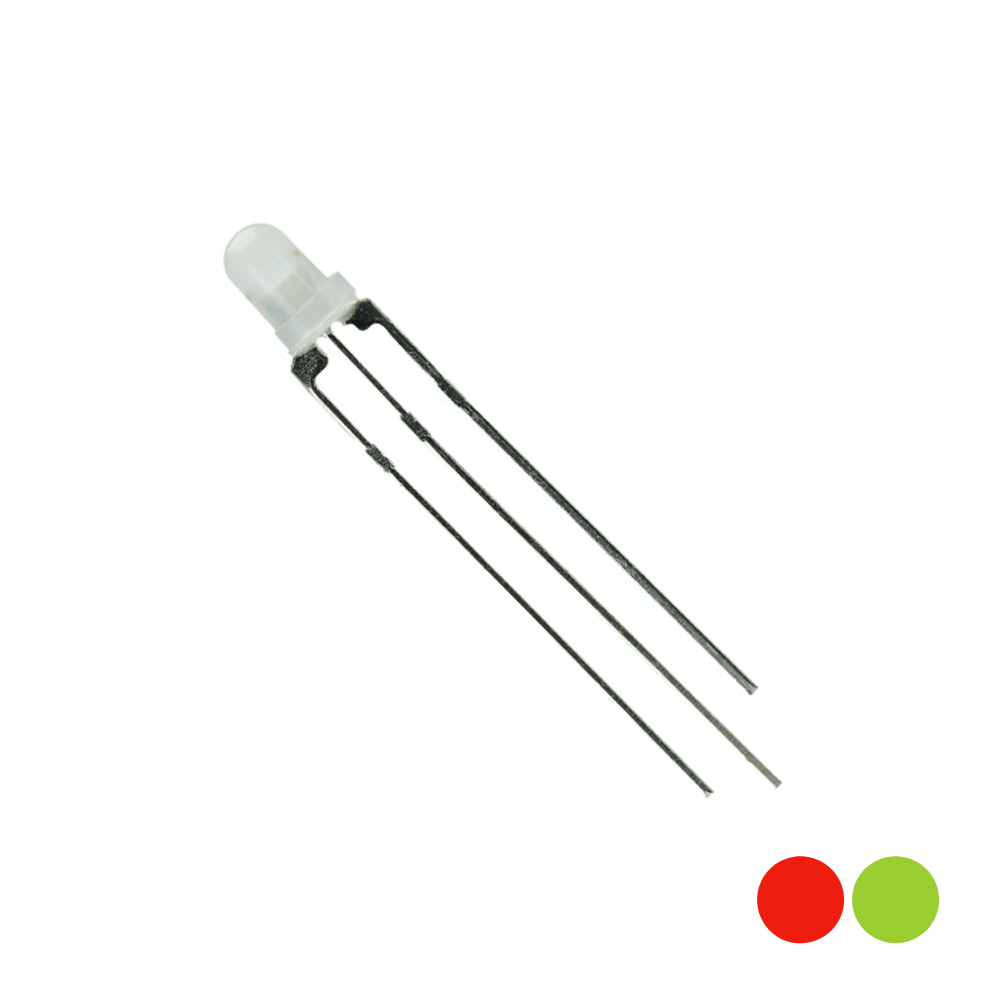

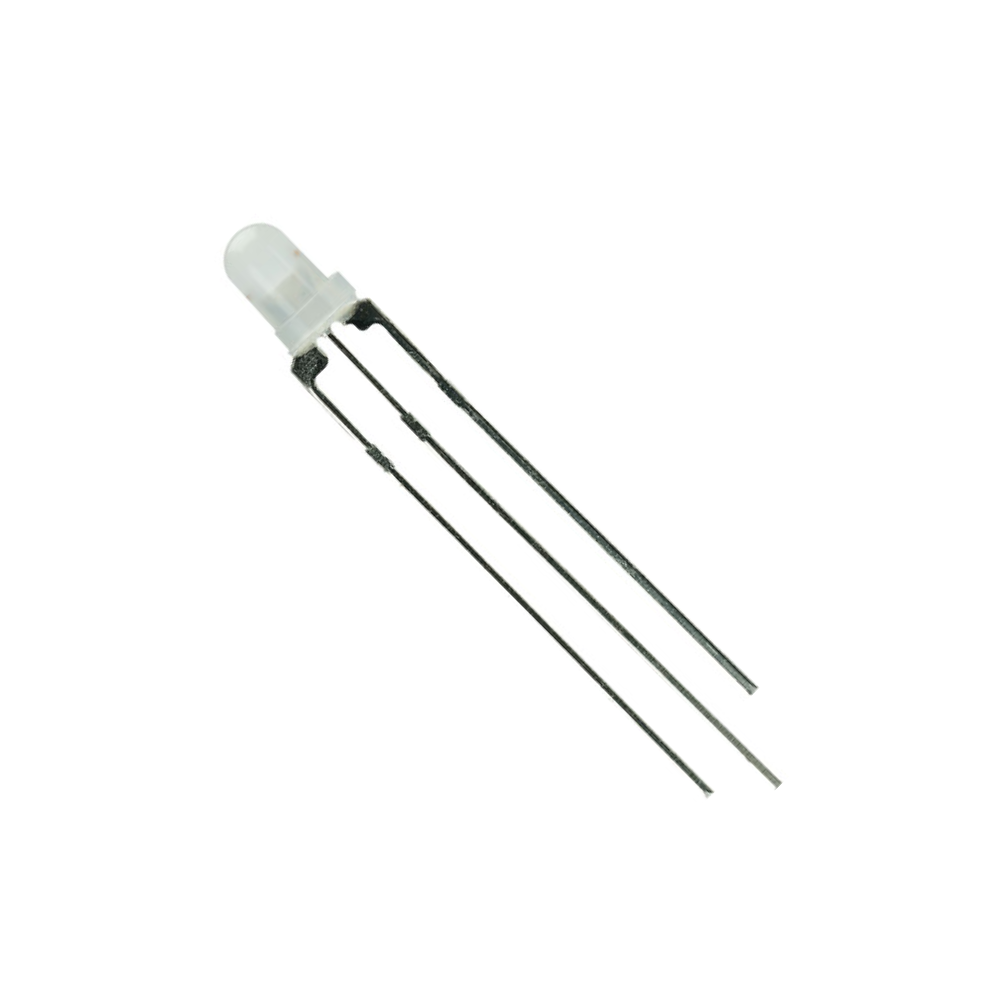

A small red and green bi-color 3mm light-emitting diode with a common cathode that produces consistent light and consumes little power, contained in a milky white packaging. It is suitable for PCB or panel mounting. In a shared cathode design, diodes are linked. The common cathode is the center leg, and it is the place where a resistor should be installed for the protection of the LED.
Pin Configuration
| Pin Name | Description |
| Anode | Positive terminal of Red LED(the big pin of the LED ) |
| Cathode | Common negative terminal of LED(biggest pin of the LED) |
| Anode | Positive terminal of Green LED(smallest pin of the LED ) |
Specifications
| Red Forward Voltage | 2.0V |
|
Green Forward Voltage |
3.0V |
| Max DC Forward Current | 20mA |
| Colours | Red/Green |
| Diameter | 3mm |
| Country of Origin | China |
