Description

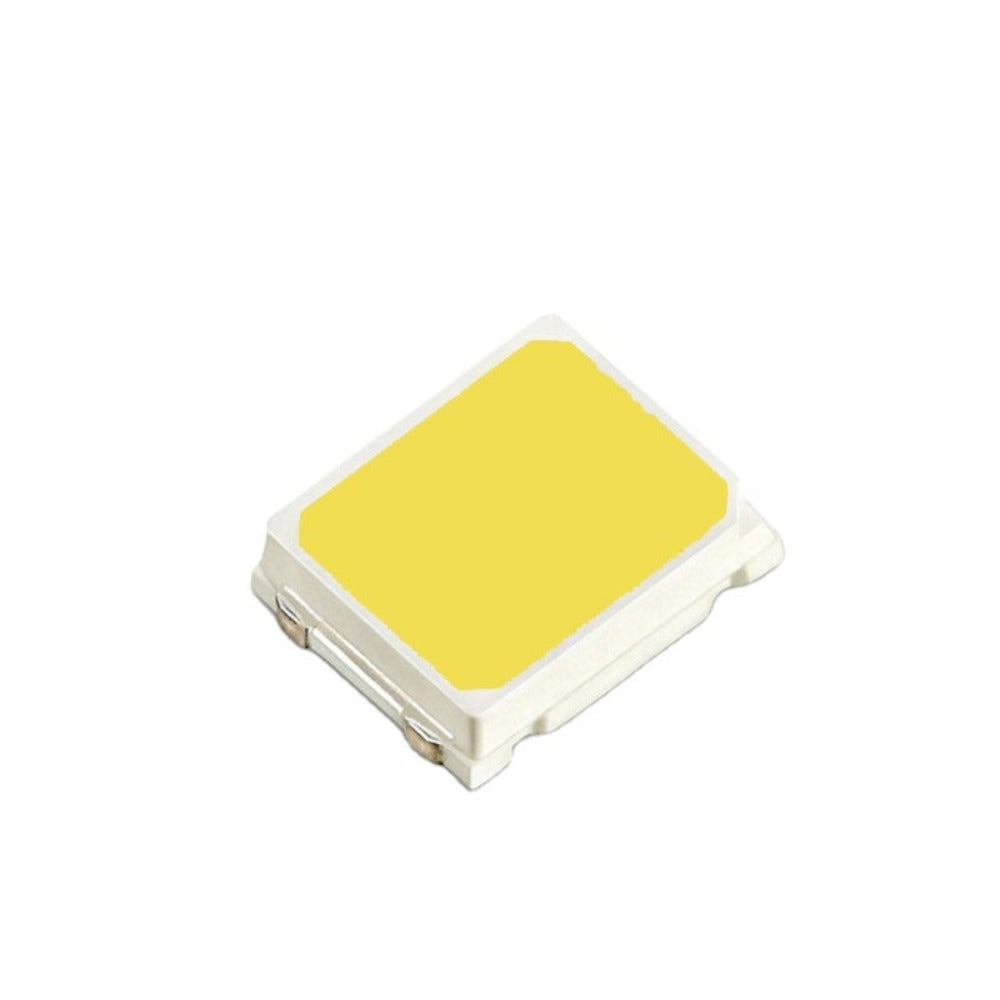

This is a 0.5 Watt high-quality SMD LED. These LED's consume very low power and emit much intense bright light, many times more than a 5mm LED, and generally produce a wide angle of light disbursement which can be narrowed through the use of an external lenses. SMD LEDs are substantially smaller than lead frame type components, they can be used on smaller boards, with higher packing density, less storage area, and smaller equipment. Just like the other LED’s SMD LED has two pins, anode and cathode for powering the LED.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal |
|
Cathode |
Negative terminal |
Specifications
| Led Shape | Rectangle |
| Colour | White |
| Forward Voltage | 3.0-3.3VDC |
| Colour Temperature | 6000-6500k |
| Forward Current | 150mA |
| Brightness | 55-60LM |
| Mounting | SMD |
| Dimensions(LxB) | 5.7mm x 3.0mm |
| Country of Origin | China |
