Description

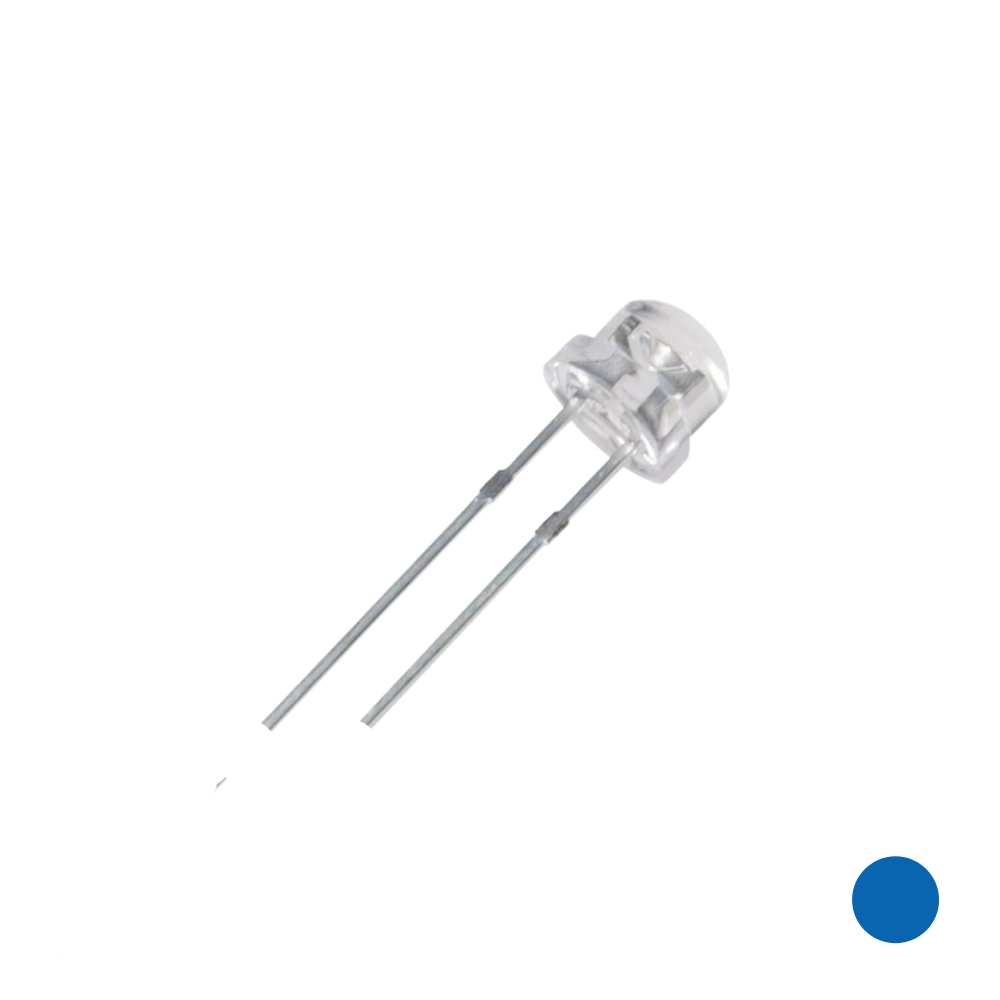

A Straw Hat LED features a special lens that allows it to scatter light similar to an incandescent light bulb. A basic LED emits light from a relatively small region, usually less than 45 degrees. The light from a Straw Hat LED is projected at a significantly broader viewing angle, generally around 120 degrees.
Because of the broader viewing angle, the emitted light is distributed over a larger region, avoiding the need for external lens designs.
Straw Hat LEDs come in a range of colours and have a similar brightness as normal 5mm LEDs.
Because of the broader viewing angle, the emitted light is distributed over a larger region, avoiding the need for external lens designs.
Straw Hat LEDs come in a range of colours and have a similar brightness as normal 5mm LEDs.
Pin Configuration
|
Pin Name |
Description |
|
Anode |
Positive terminal of LED(the big leg of the LED ) |
|
Cathode |
Negative terminal of LED(the small leg of the LED) |
Specifications
|
Colour |
Blue |
|
Forward Voltage |
3.3V |
|
Mounting Type |
Through Hole |
|
Lens Colour |
Clear |
|
No. of Pins |
2 |
|
Diameter |
4.8mm |
| Country of Origin | China |
