Description

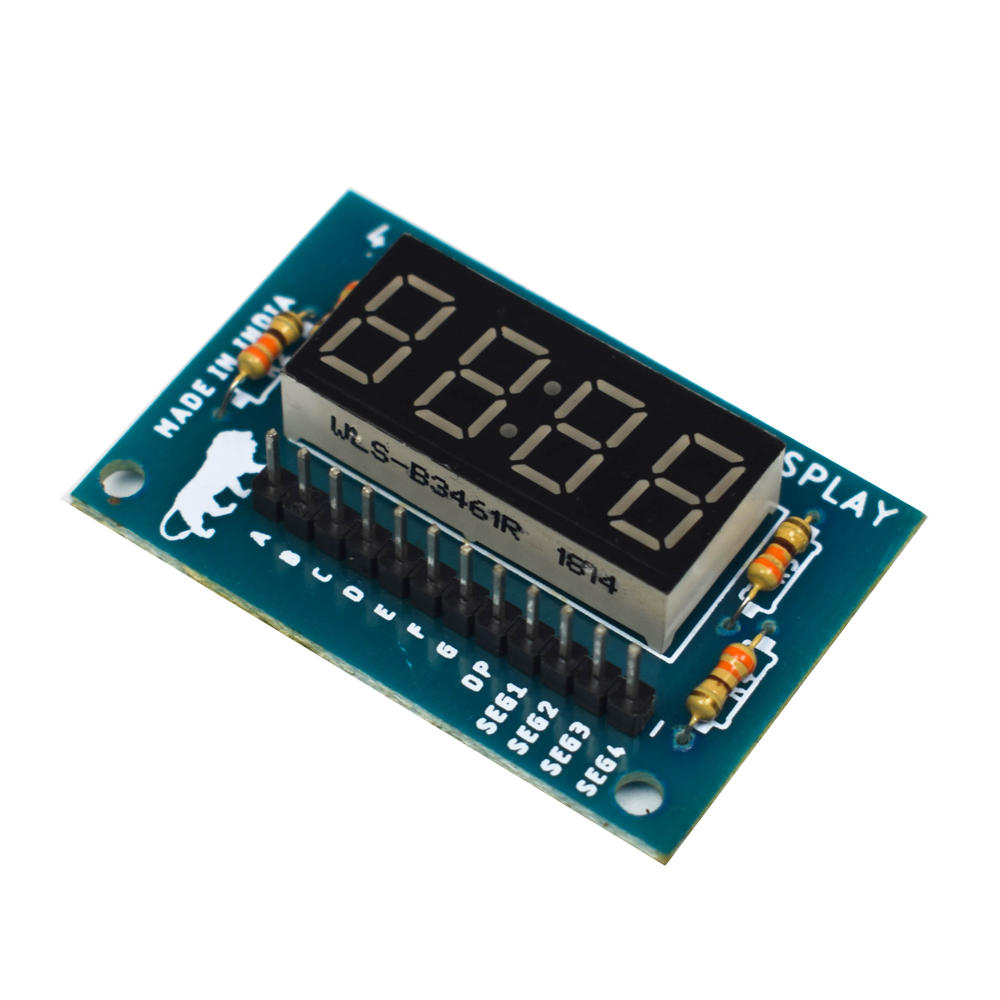

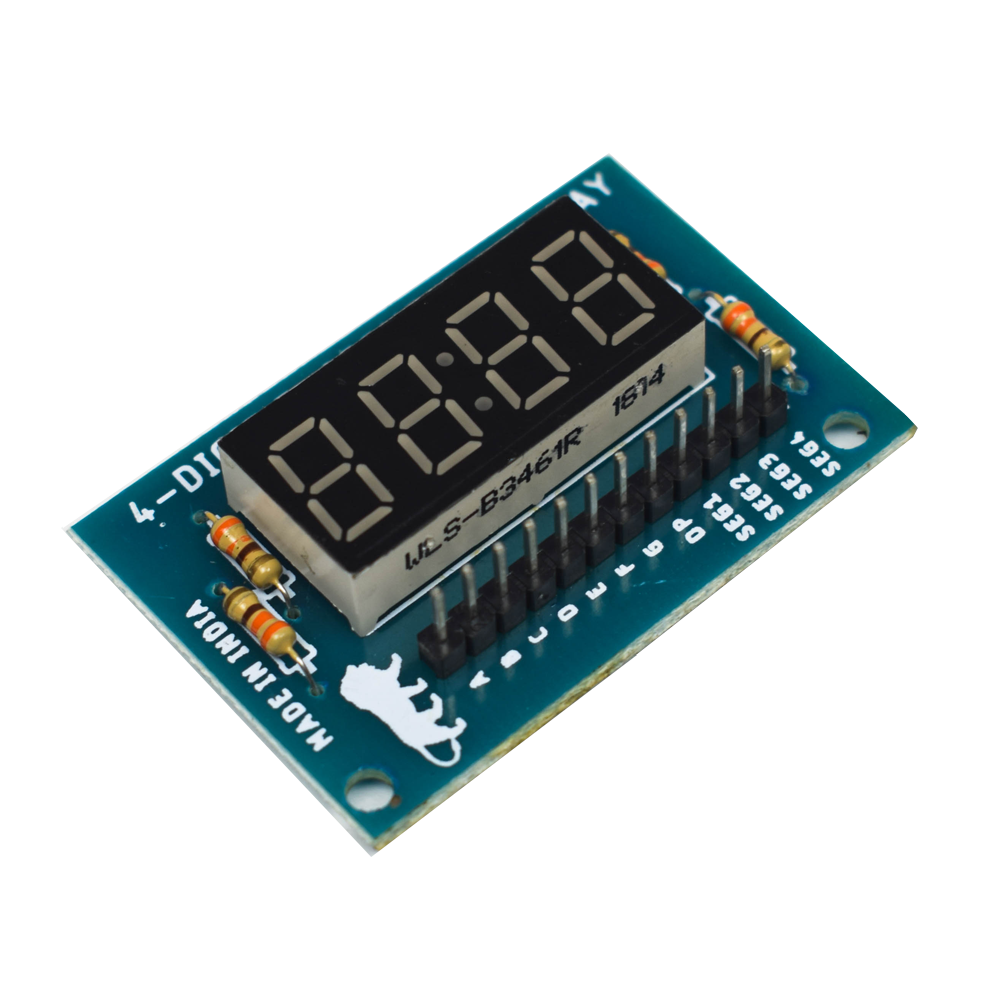

This is a Four Digits Seven-Segment LED Display Module, which is rectangular in shape. The module is a 4-digit clock with 4 points of positive digital; only 12 signal lines can make four 8-segment LEDs. A total of 12 pins (A,B,C,D,E,F,G,H, SEG1, SEG2, SEG3, SEG4). It is based on multiplexing connections between all 4 digits. It is often used as a clock, counter, timer display, Digital clock, programmable timer, digital thermometer, decimal counter, stopwatch etc.
Features
- It can be used as a clock display.
- It can be easily interfaced with Arduino.
Specifications
| Product | 4-Digit 7-Segment Display |
| Type | Seven Segment Display |
| Input Voltage | 3.7 to 5.3 V |
| Input Current | 30 mA |
| No. of Display | 04 |
| LED Colour | Red |
| No. of Pins | 12 |
| Display Dimensions (L x H) | 13 x 40mm |
| Board Dimension | 32 x 47mm |
| Make | Made in India |
| Country of Origin | China |
