Description

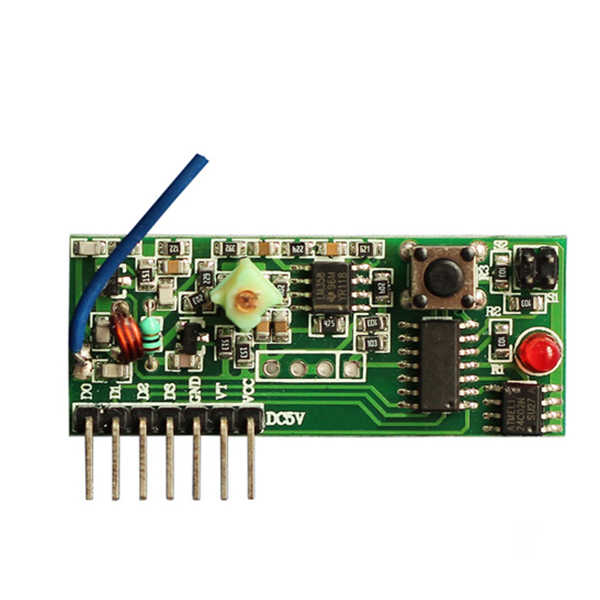

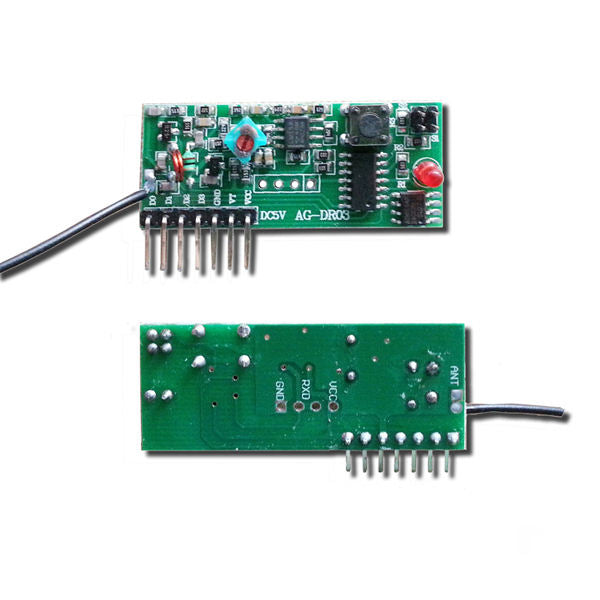

It's a 433MHZ IC2262 Learning code Super Regenerative decoding rf receiver module. This RF receiver module generally used for Garage door and gate openers, Electric windows, barrier, Remote controls and smart home alarm, Low baud rate for data transmission, GSM/GPS car system and many more application
Specification
- Modulation Mode: AM/ASK
- Sensitivity: -100dBm
- Frequency: 315MHz/433.92MHz/Other
- Operation voltage: DC5V
- Current: 4.2mA
- Max load: 10MA
- Operating Temperature:-45°C~+85°C
- Dimension: 40*26*7mm
