Description

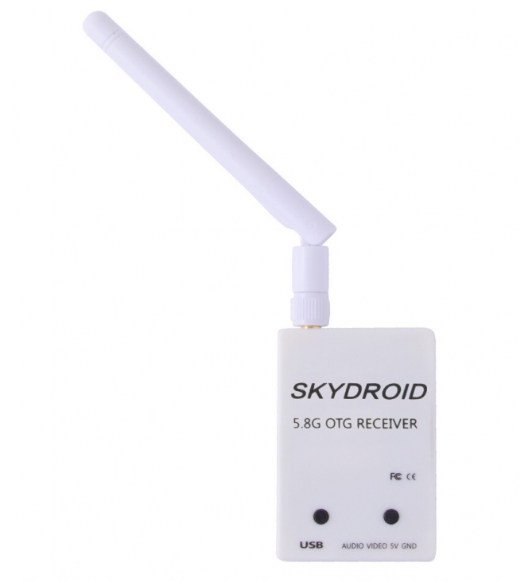

- Model: ROTG01
- Name: UVC OTG FPV Receiver
- Channel: 150CH
- Power Supply: 5V(by smartphone)
- Connector: SMA Female
| Model |
ROTG01 (UVC OTG FPV Receiver) |
|---|---|
| No. of Channels |
150 |
| RF Range |
5645~5945 GHz |
| Rx Sensitivity (dBm) |
-90 |
| Operating Voltage (VDC) |
5 |
| Current Consumption (mA) |
200 |
| Operating Temperature (°C): |
-10 to 60 |
| Connector to connect Antenna |
SMA Female |
| Antenna Length (mm) |
110 |
| Video Format Supported |
NTSC/PAL |
| Color: |
White |
| Net weight (gm) |
28 |
| Dimensions (mm) LxWxH |
61 x 33 x 0.9 |
| Shipping Weight | 0.03 kg |
| Shipping Dimensions | 5 × 3 × 1 cm |
