Description
A ceramic resonator is often used in place of quartz crystals as a reference clock or signal generator in electronic circuitry due to its low cost and smaller size. The lower Q and higher frequency range achievable can be beneficial in the use of TCXOs, temperature-compensated crystal oscillators. They are used in timing circuitry for a wide array of applications such as TVs, VCRs, automotive electronic devices, telephones, etc.
Specification

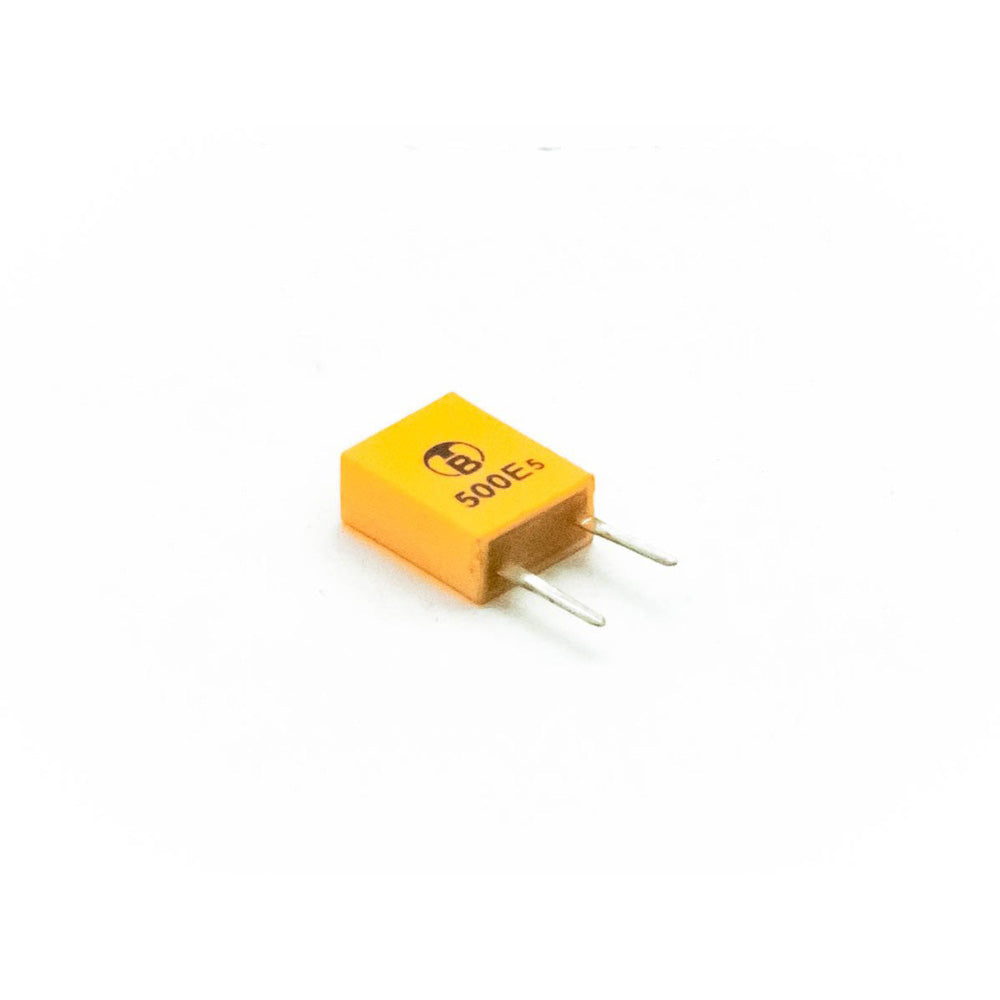

| Part Number | 500E5 |
| Frequency | 500KHz |
| Tolerance | ±20% |
| Frequency Stability | ±0.3 |
| Frequency Tolerance | ±2KHz |
| Capacitance | 100pF |
| Operating Temperature | -20°C to 80°C |
| Size | 7x3.5x8.8mm |
| Country of Origin | China |
