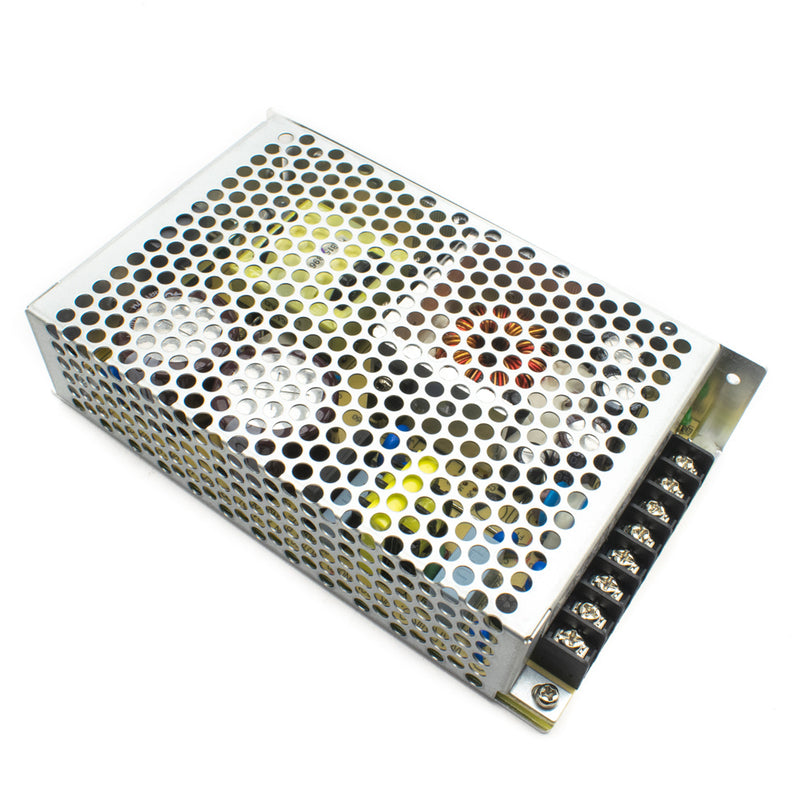

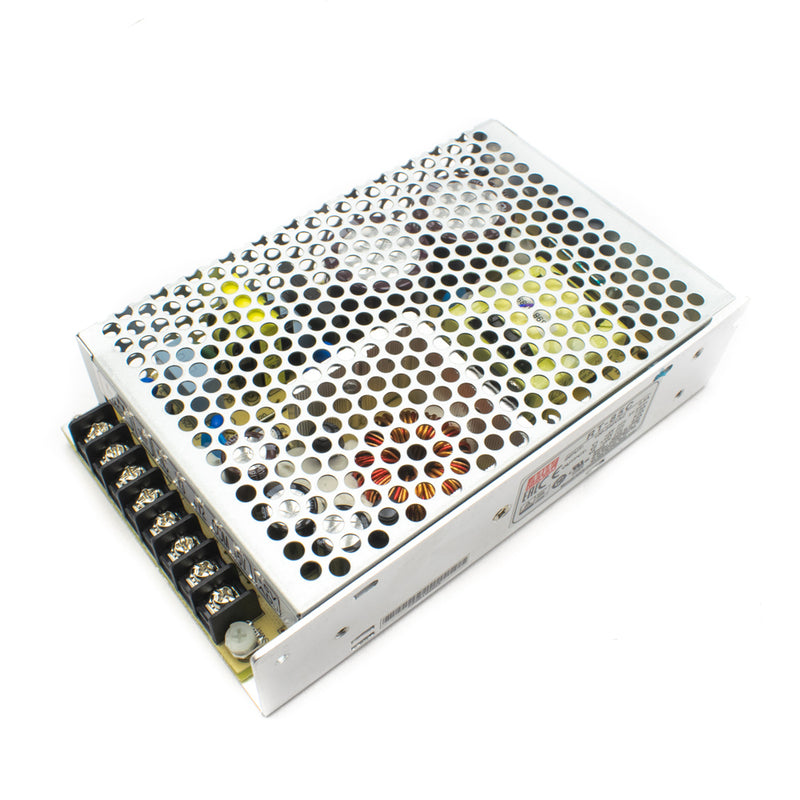

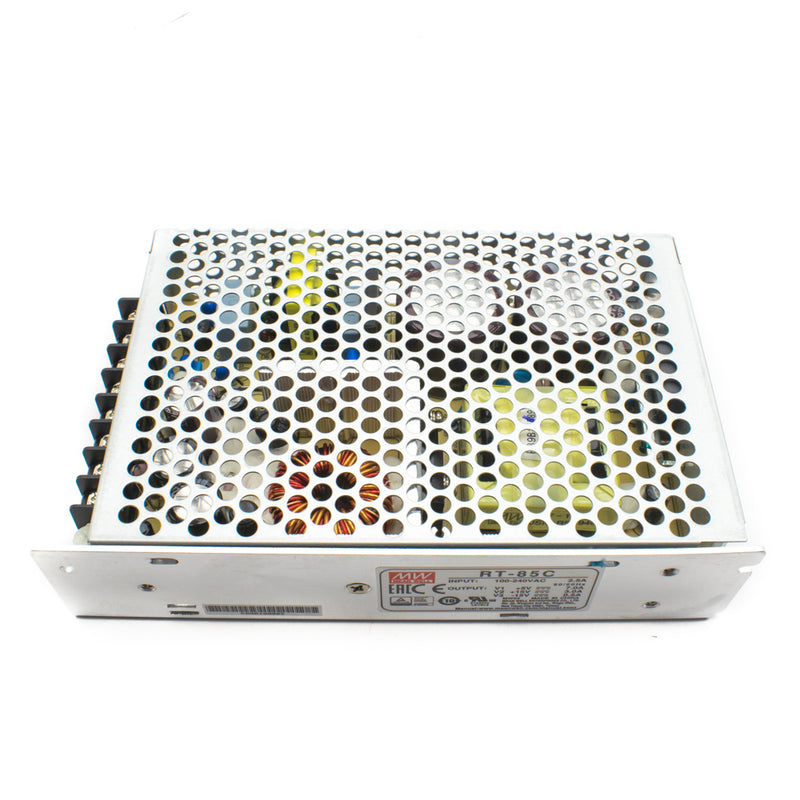

Meanwell RT85C SMPS (5V, 15V, -15V) 85W Triple Output Switching Power Supply

Save 19%
Sold By: HatchnHack

Price:
Sale price₹ 2,151.00 Regular price₹ 2,667.00

Tax included Shipping calculated at checkout

Out of stock

Description

RT-85C series is a 85W triple-output enclosed type power supply with 38mm of low profile design. The AC input is 88~264VAC which could be directly supplied from the house supplied voltage. The output Voltages from SMPS will be +5V, +15V, -15V. The SMPS has high efficiency up to 77%, the design is of metallic mesh case which enhances the heat dissipation of RT-85C that the whole series operates from -25°C through +70°C. RT-85C has complete protection functions and 5G antivibration capability; it complies with international safety regulations such as UL62368-1, TUV EN62368-1. RT-85C series can be used for many purposes with the best performance from it.

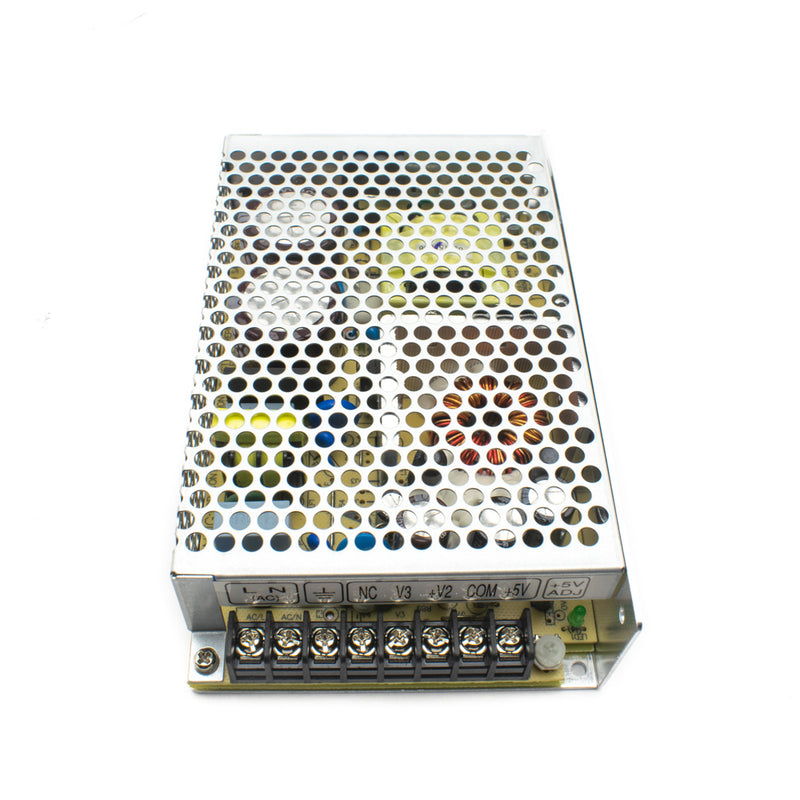

Pinout

Pin No. Pin name Description
1,2 AC/L&N Supplied AC Voltage (88 ~ 264VAC)
3 FG GND
4 NC NC
5 V3 DC OUTPUT -15V
6 +V2 DC OUTPUT +15V
7 COM Negative for V1,V2,V3
8 +5V(V1) DC OUTPUT +5V



Feature

  • Universal AC input/ Full range
  • Protections: Short circuit/ Overload / Over voltage
  • Cooling by free air convection
  • LED indicator for power on
  • 100% full load burn-in test
  • All using 105°C long life electrolytic capacitors
  • Withstand 300VAC surge input for 5-second
  • High operating temperature up to 70°C
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipment or apparatus
  • Household appliances

Specifications
Model RT-85C
Brand Meanwell
DC Voltage (through three voltage channel) +5V(V1) , +15V(V2) , -15V(V3)
Rated Current V1-7A, V2-3A, V3-0.5A
Rated Power 87.5W
Ripple & Noise V1-80mVp-p , V2-120mVp-p , V3-120mVp-p
Voltage Adj. Range CH1(V1): 4.75 ~ 5.5V
Voltage Tolerance V1- ±2.0% , V2- +3,-7% , V3- ±6.0%
Line Regulation V1- ±0.5% , V2- ±1.0% , V3- ±1.0%
Load Regulation V1- ±1.0% , V2- ±3.0% , V3- ±6.0%
Setup, Rise Time 500ms, 20ms/230VAC        1200ms, 30ms/115VAC at full load
Hold Up Time 100ms/230VAC          18ms/115VAC at full load
Input Voltage Range 88 ~ 264VAC              125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)
Frequency Range 47 ~ 63Hz
Efficiency 77%
AC Current 2.5A/115VAC            1.5A/230VAC
Over Load

110 ~ 150% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

    Working Temperature -25°C to 70°C
    Working Humidity 20~90% RH
    Dimensions(L*W*H) 159*97*38mm
    Country of Origin China
