Description

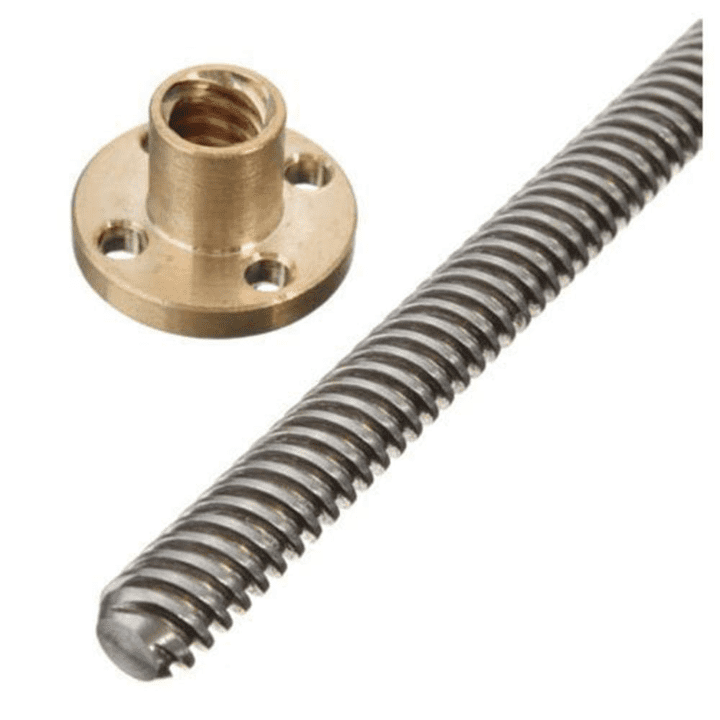

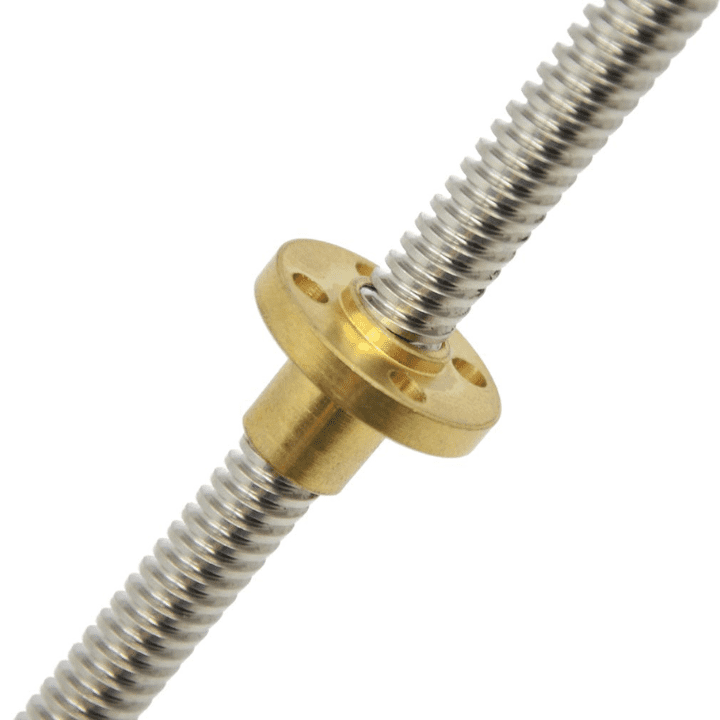

600mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut

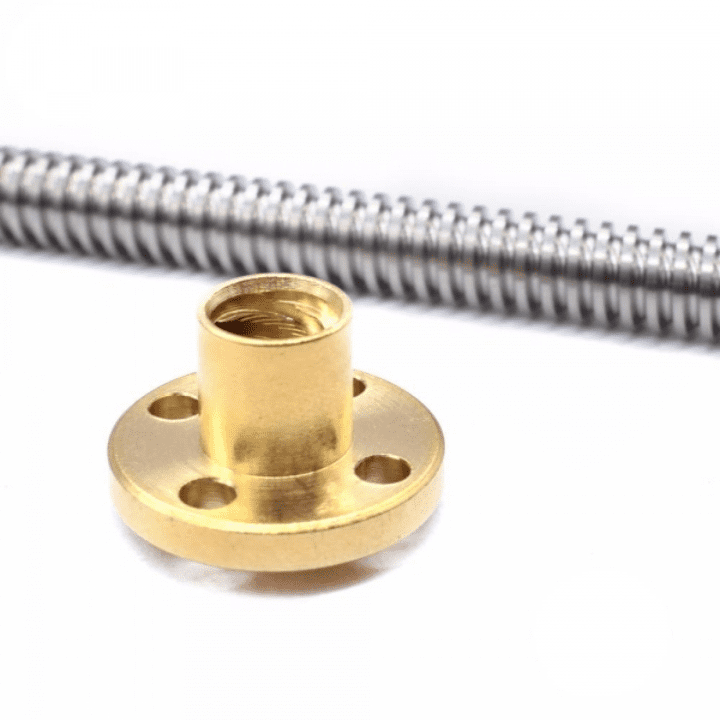

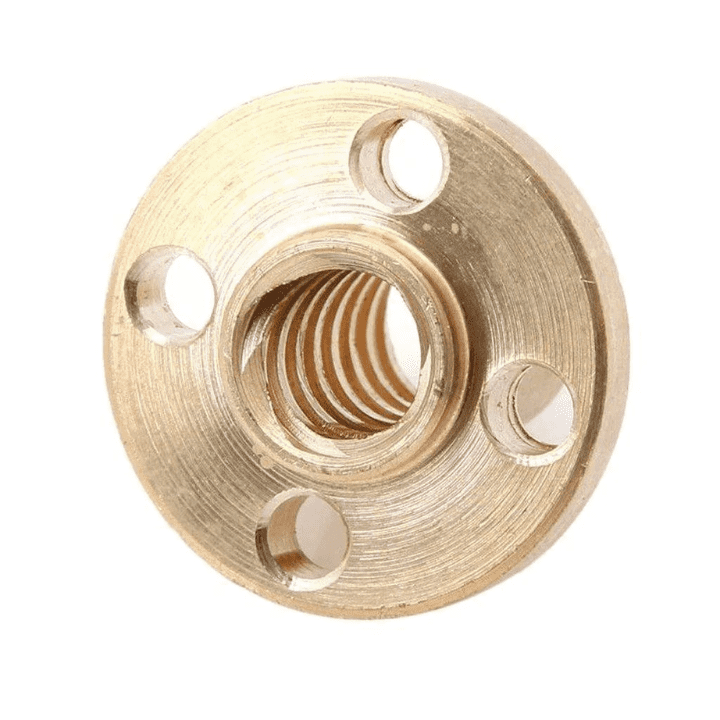

The Trapezoidal Screw Rod is a 600 mm screw rod and has a rod diameter of 8mm and thread screw pitch as 2mm. The 600 mm screw rod also comes with a copper nut. The copper nut is equipped with 4 holes for fixing the machine thread. They have great applications in 3D printing and are also used in stepper motor, machine tool rails and other machinery equipment.
It has good wear resistance and strength, high accuracy, hard to rust and has good performances due to low friction coefficients and long usage spans. This Trapezoidal Lead Screw with Copper Nut is a new type of screw which is mainly used in stepper motor, machine tool rails and other types of equipment.
check out : 350mm Trapezoidal 4 Start Lead Screw 8mm Thread 2mm Pitch Lead Screw with Copper Nut
Applications:
- Can be used in 3D Printers
- CNC Machines
- Stepping motor driving guide rail
- Engraving machine
Package Includes:

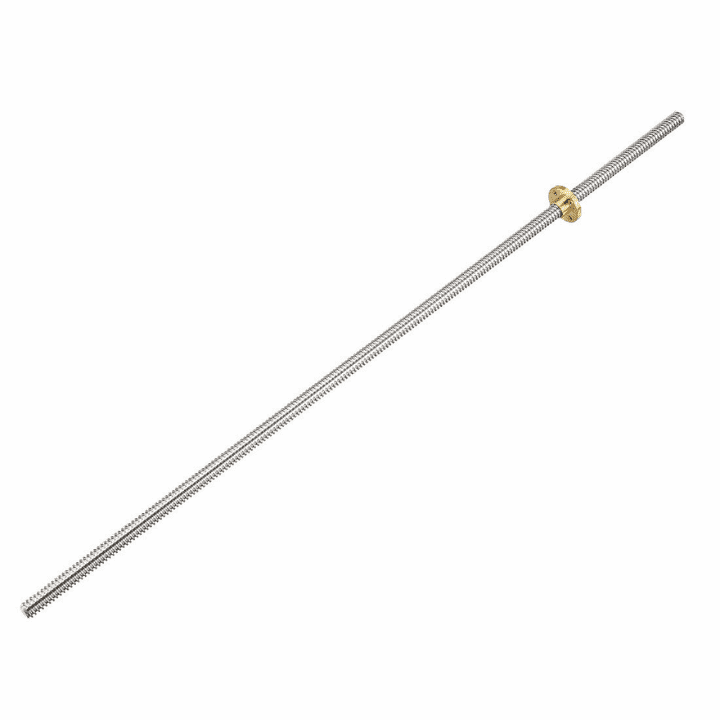

- 1 x 600 mm Trapezoidal Screw Rod
- 1x Copper Nut
Specifications:
| Model | THSL-600-8D |
| Rod Length (mm) | 600 |
| Rod Width (mm) | 8 |

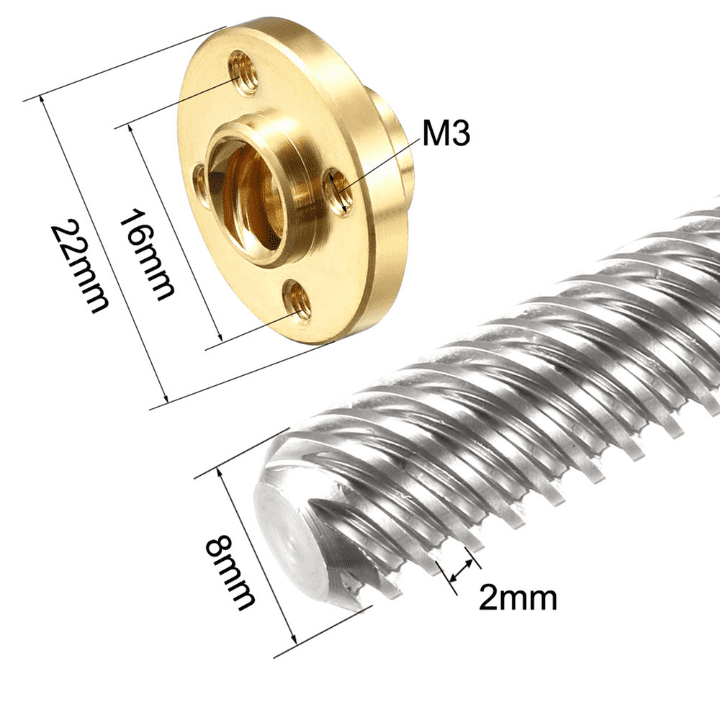

| Brass Nut Size - Diameter x Height (mm) | 22 x 15 |
| Weight (gm) | 200 |
