Description

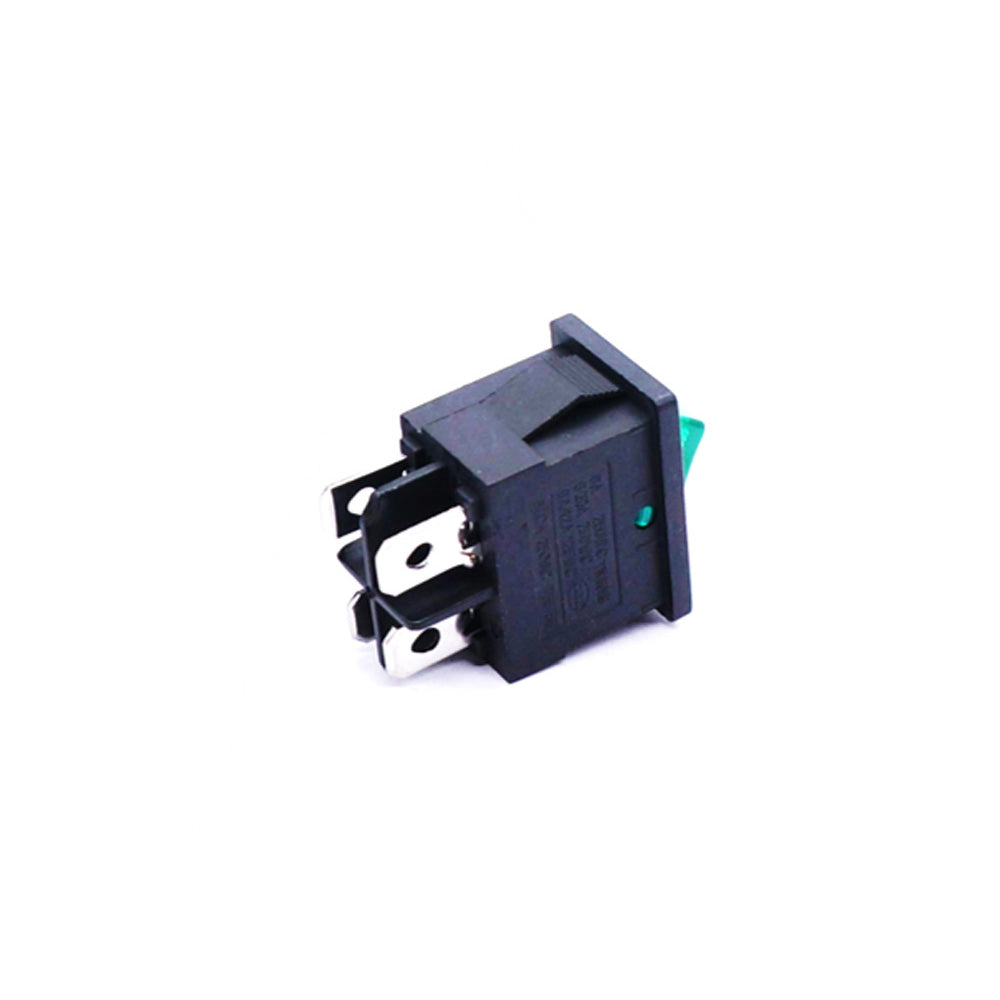

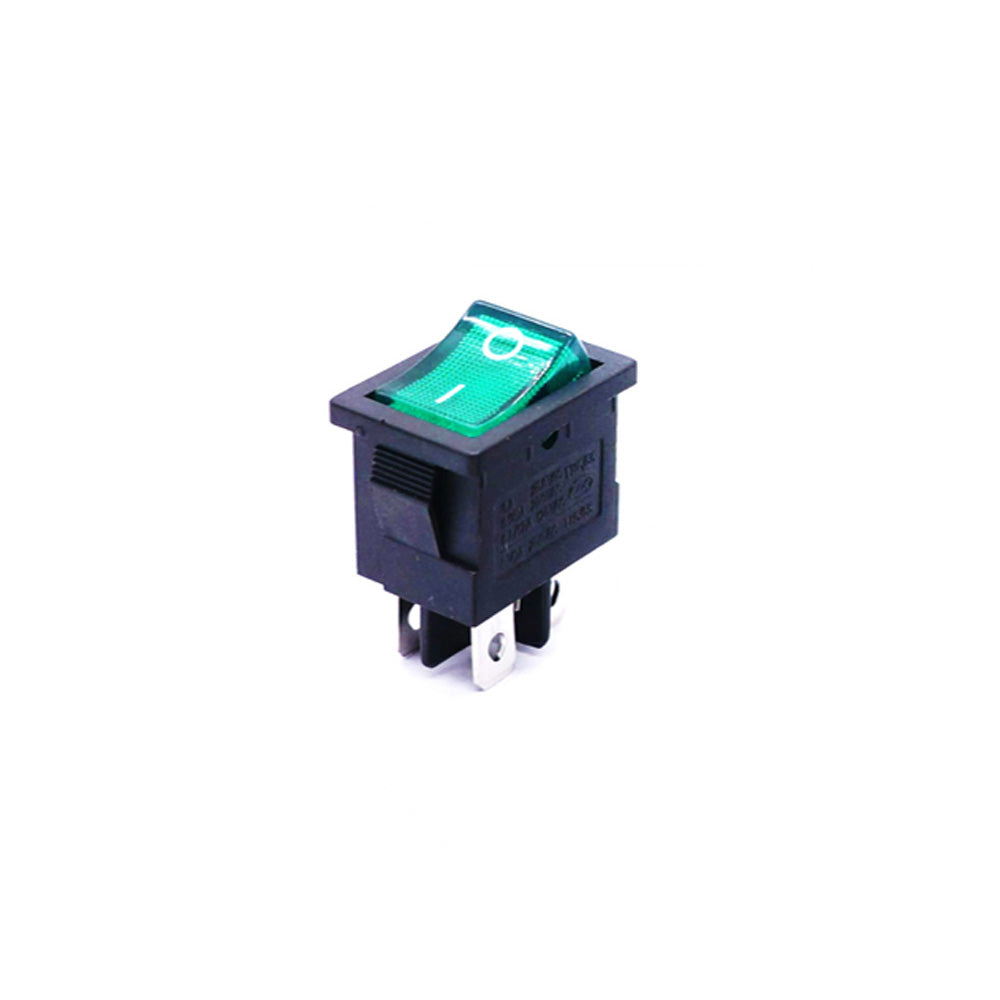

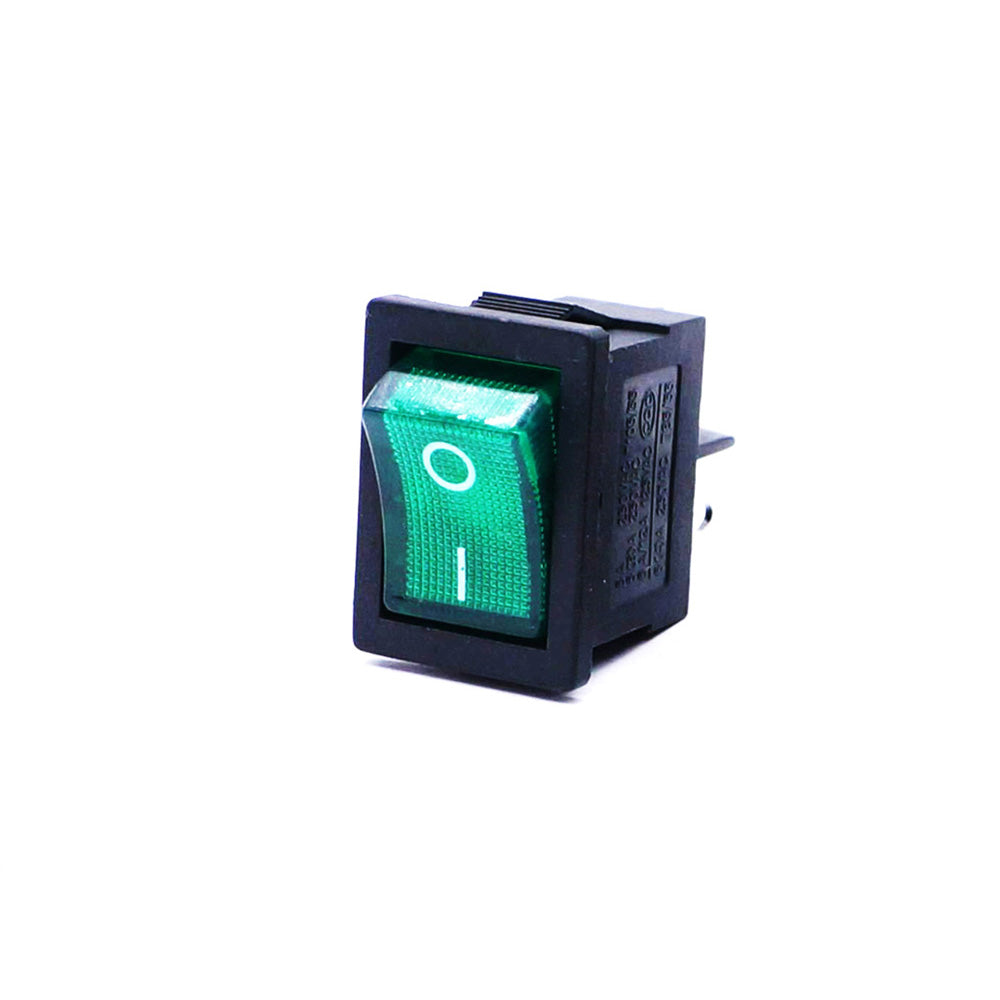

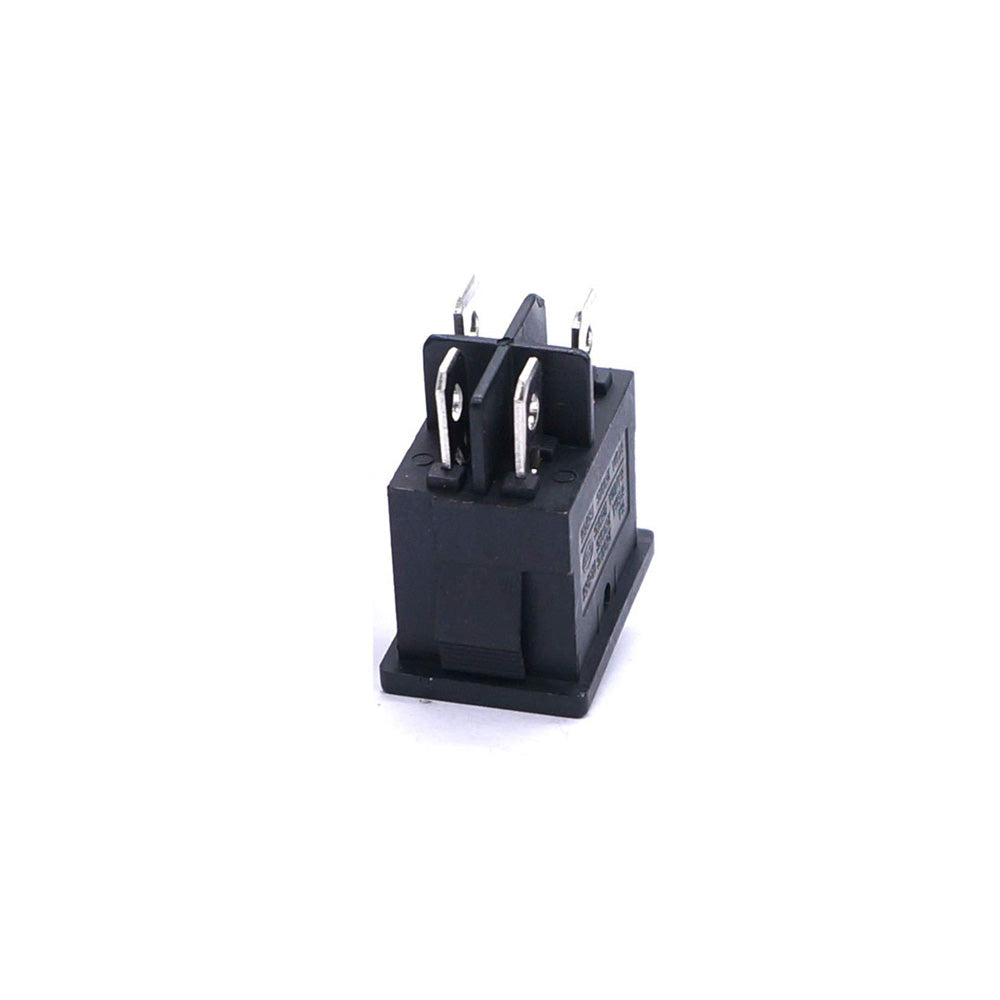

DPST (Double Pole Single Throw) Rocker switch is the most basic power control switch. DPST rocker switch requires no nut bolts or screw for its installation. This switch also features a Green LED light in it. There are two positions of this switch i.e, ON and OFF which are also marked on it as I and O respectively which helps users to detect its position. This switch is rated for 6A 250V AC and 10A 125V AC. This switch has a long switching life of around 50000 to 100000.
Specifications
| Voltage and Current Rating | Max 6A at 250VAC and 10A at 125VAC |
| Switching Mode | ON-OFF |
| Structure | DPST |
| Colour | Black |
| Number of Pins | 4 |
| Dimension (LxWxH) | 30x25x27 (mm) (Pins Height Included) |
| Panel Cut-Out(LxW) | 17x13 (mm) |
| Model Number | KCD1-104 |
| Country of Origin | China |
