Description

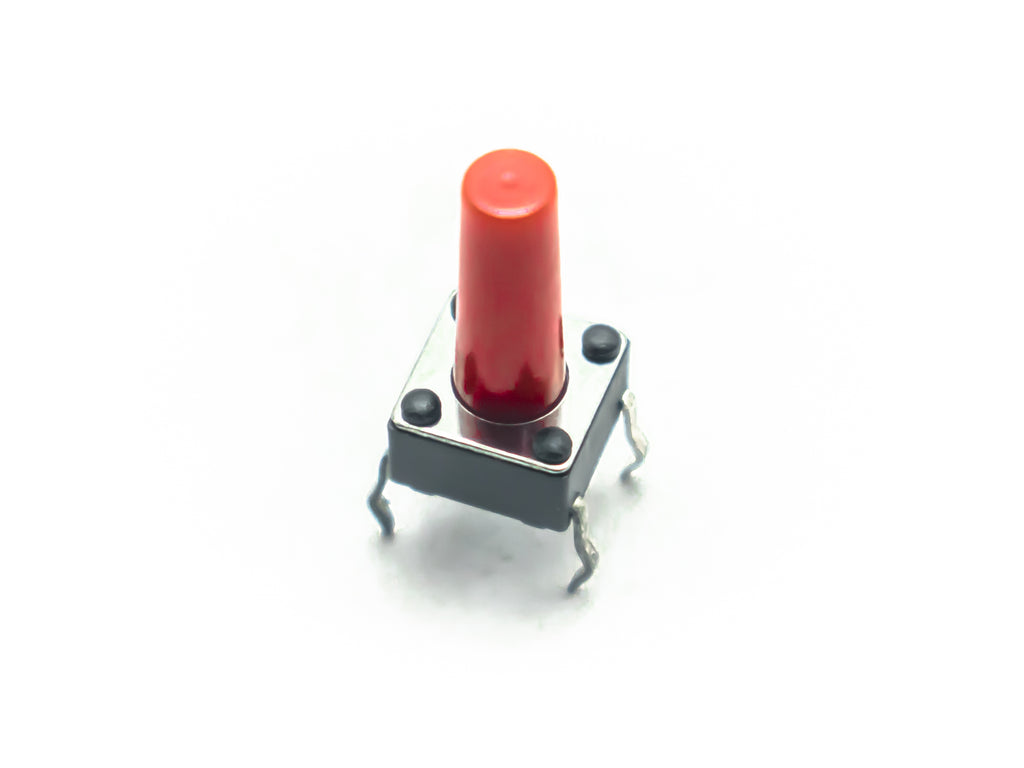

A tactile push-button switch is Normally Open switch. The tactile button connects the circuit for the time it is kept pressed and as soon as it is released the circuit is disconnected. The Tactile Push-button has 4 pins. Two pins are connected internally. These Tactile push-buttons feature a through-hole design. Its high-precision mechanism offers acute operation and long life. It is majorly used as a standard input button in electronics circuits. Tactile push buttons have a long life, it works fine for more than 300000 cycles. Tactile buttons are waterproof.
Specifications
| On/Off Function | Push to ON |
| Switching Type | Momentary |
| Colour | Red |
| Mounting Type | Through Hole |
| Contact Material | Aluminium Alloy |
| Contact Resistance | 50mΩ |
| Insulation Resistance | 100MΩ |
| Operation Force | About 3-5N |
| Operation Stroke | 1.05mm |
| Body Material | Plastic |
| Mechanical and Electrical Life | 300,000 Cycles |
| Protection Grade | IP65 |
| Size | 6x6x13mm |
| Country of Origin | China |
