Description

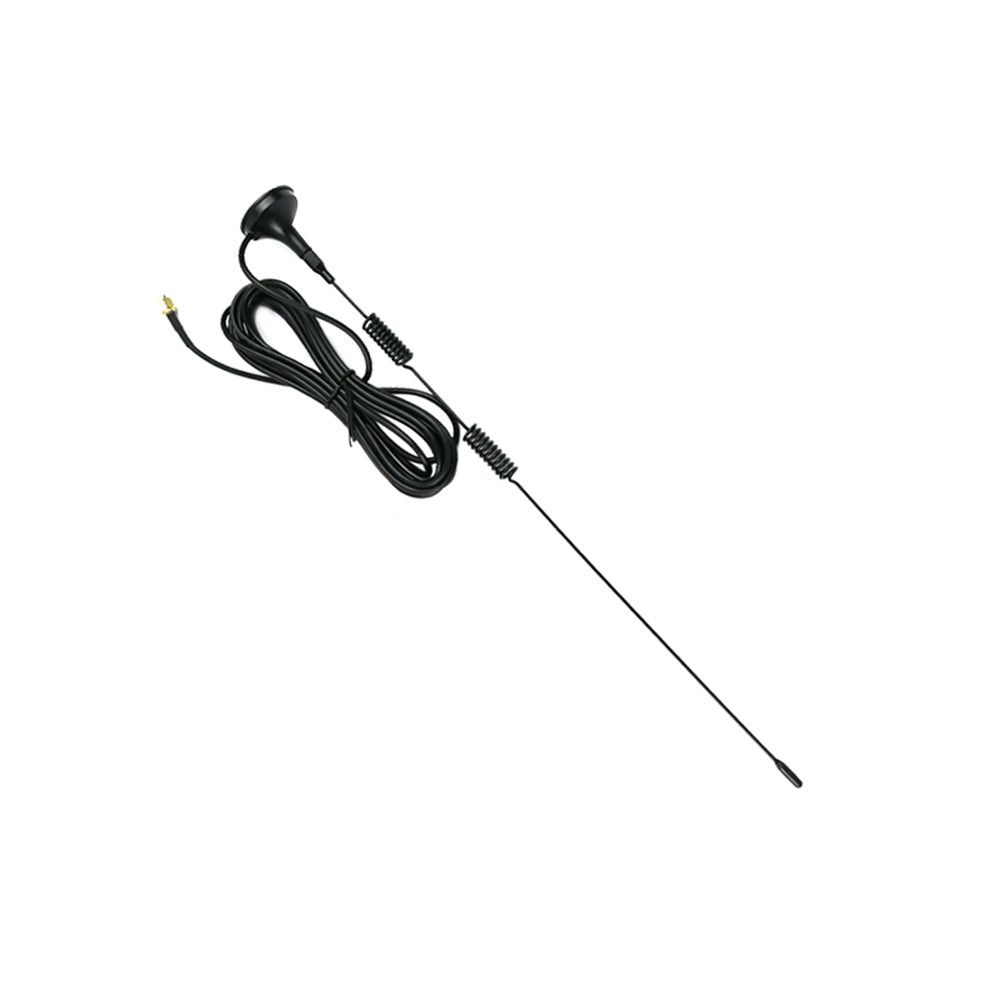

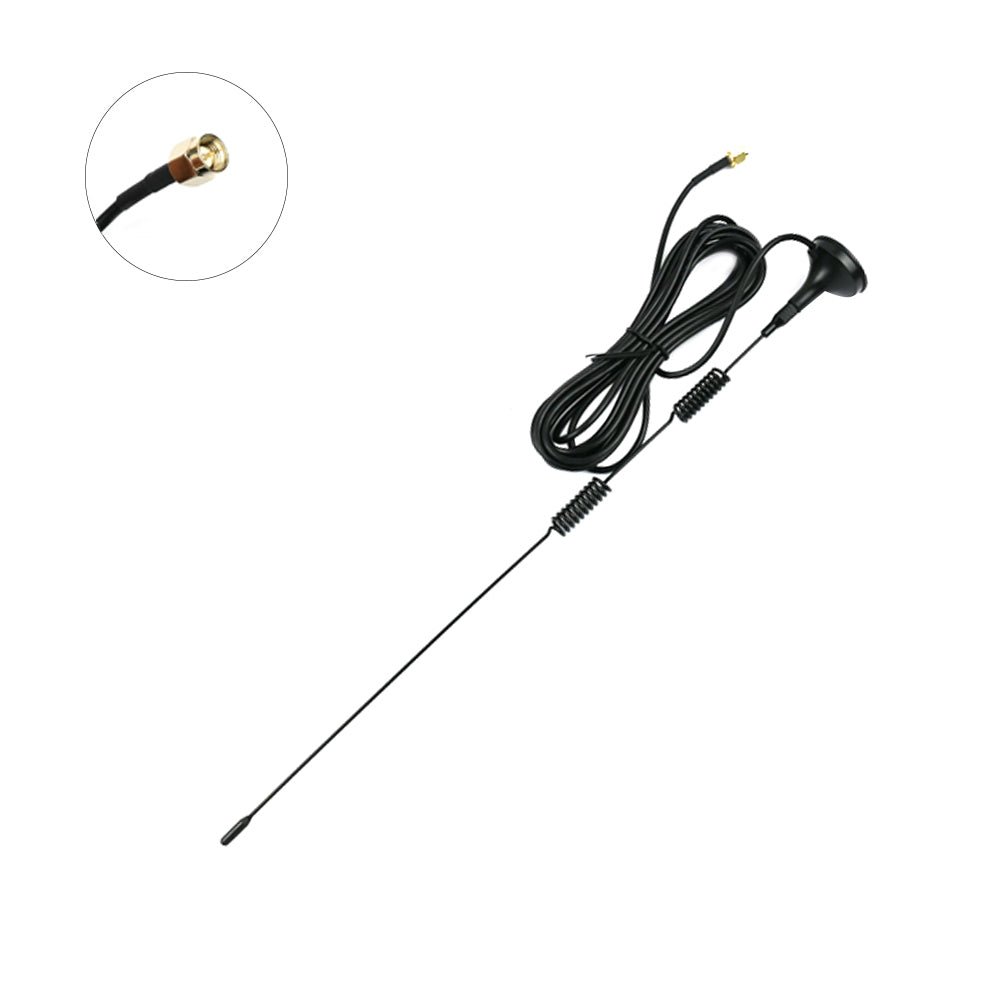

It's a GSM magnetic base antenna with 7Dbi gain and an SMA male connector. Its frequency range lies between 900-2700Mhz and its bandwidth is 70/170. This is a vertical polarization types magnetic base antenna whose maximum input power is 50W and input impedance is 50ohm. This antenna is commonly used in GSM repeater, GSM Module, GSM modems & GSM sensor.
Features
- Magnetic base type
- Its has SMA male connector
- Low VSWR
- Light Weight
- Easy to Install
- Boosts Data Downloading Speed
Specification
| Product type | GSM magnetic base Antenna |
| Gain | 7Dbi |
| Frequency range | 900-2700Mhz |
| Bandwidth | 70/170Mhz |
| VSWR | ≤2.0 |
| Polarization | Vertical |
| Connector type | SMA male , ID-4.3mm |
| Dimension | Antenna length- 280mm , Wire- 3meter |
| Country of Origin | China |
