Description

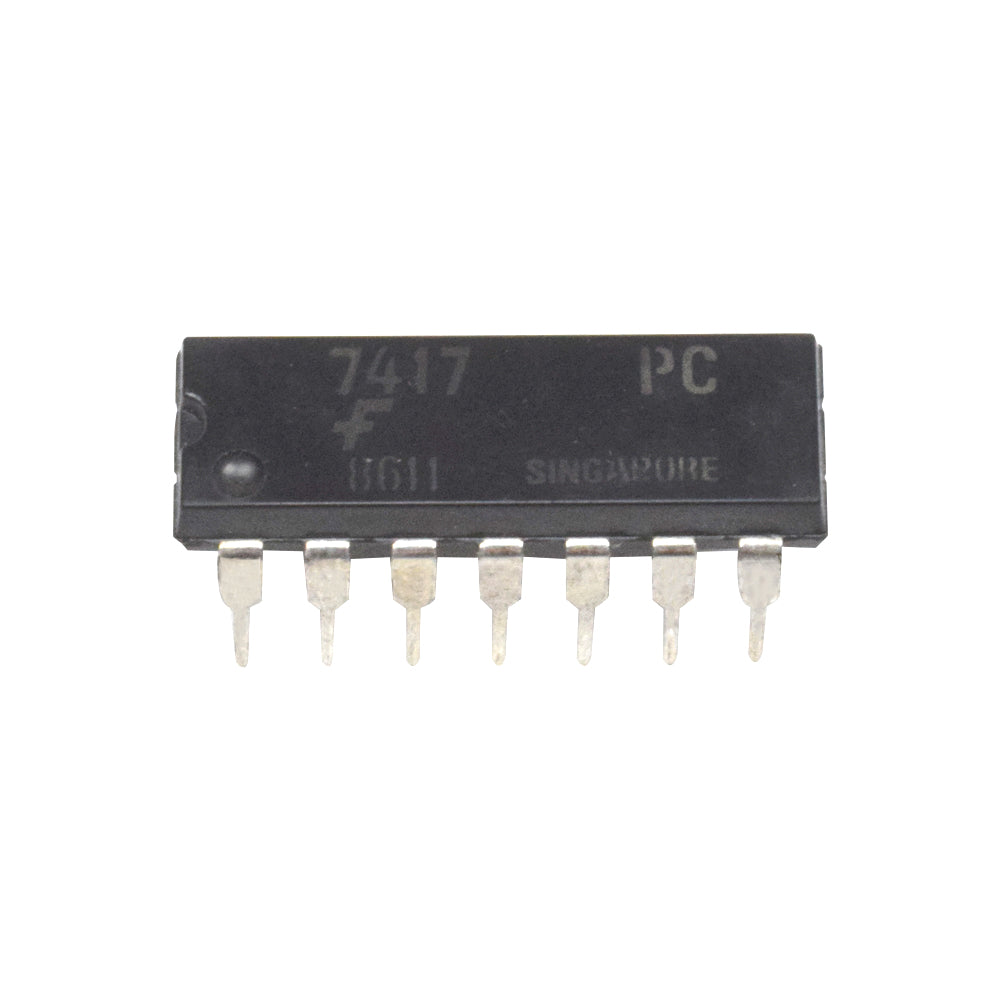

This is a 7417 Hex Buffer/Driver Integrated Circuit. This device has six independent gates, each serving as a buffer. For proper logical operation, the open-collector outputs require external pull-up resistors.
Features
-
Six Hex Buffers with Open Collector Outputs
-
Outputs Directly Interface to CMOS, NMOS and TTL
-
Large Operating Voltage Range
-
Wide Operating Conditions
Specifications
| Model | 7417 IC |
| Type |
Integrated Circuit |
| Mounting Type |
Through Hole |
| Supply Voltage | 5V |
| Pitch |
2.5mm |
| Number of pins | 14 |
| Package | DIP-14 |
| Operating Free Air Temperature | 0°C to +70°C |
| Storage Temperature Range | -65°C to +150°C |
| Country of Origin | China |
