Description

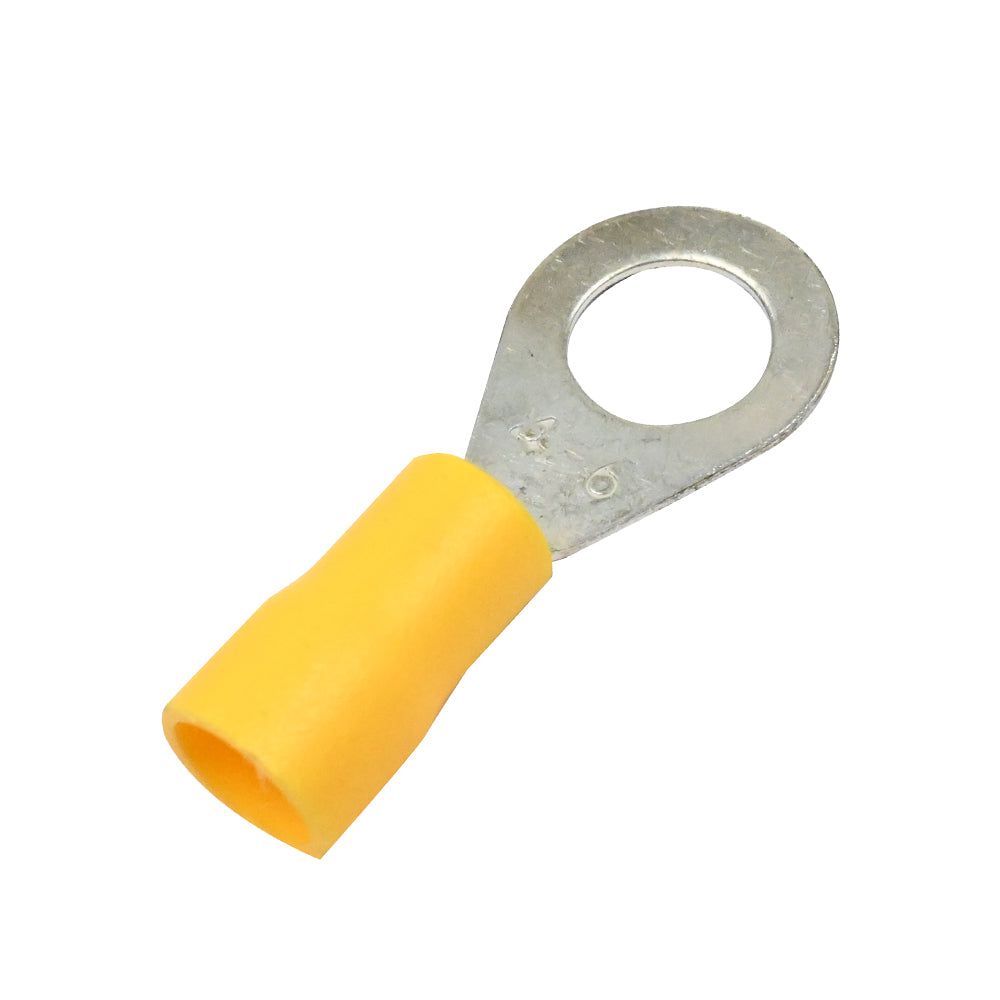

Ring crimp terminals are used for connecting an electrical cable or wire to a stud or a post on an electrical component, such as a battery terminal. This ring terminal comprises highly conductive tin-plated copper with conically tapered plastic insulation sleeves for optimal electrical conductivity and corrosion resistance. The terminal is protected by colour-coded vinyl insulation, which aids in the rapid identification of the terminal size. This ring terminal will create a secure and stable electrical connection when properly crimped onto a wire or cable.
Features:
- Its protected by the insulating material
- Its colour is Yellow
- Its inner ring Diameter is 8.2mm
- Its Outer Diameter is 11.8mm
| Specifications | |
|---|---|
| Thickness Of Wire | 4.2mm Wire Support (8 Gauge) |
| Dimension | 28.4x11.8mm |
| Type | Ring Terminal Connector |
| Length | 28.4mm |
| Width | 11.8mm |
| Color | Yellow |
