Description

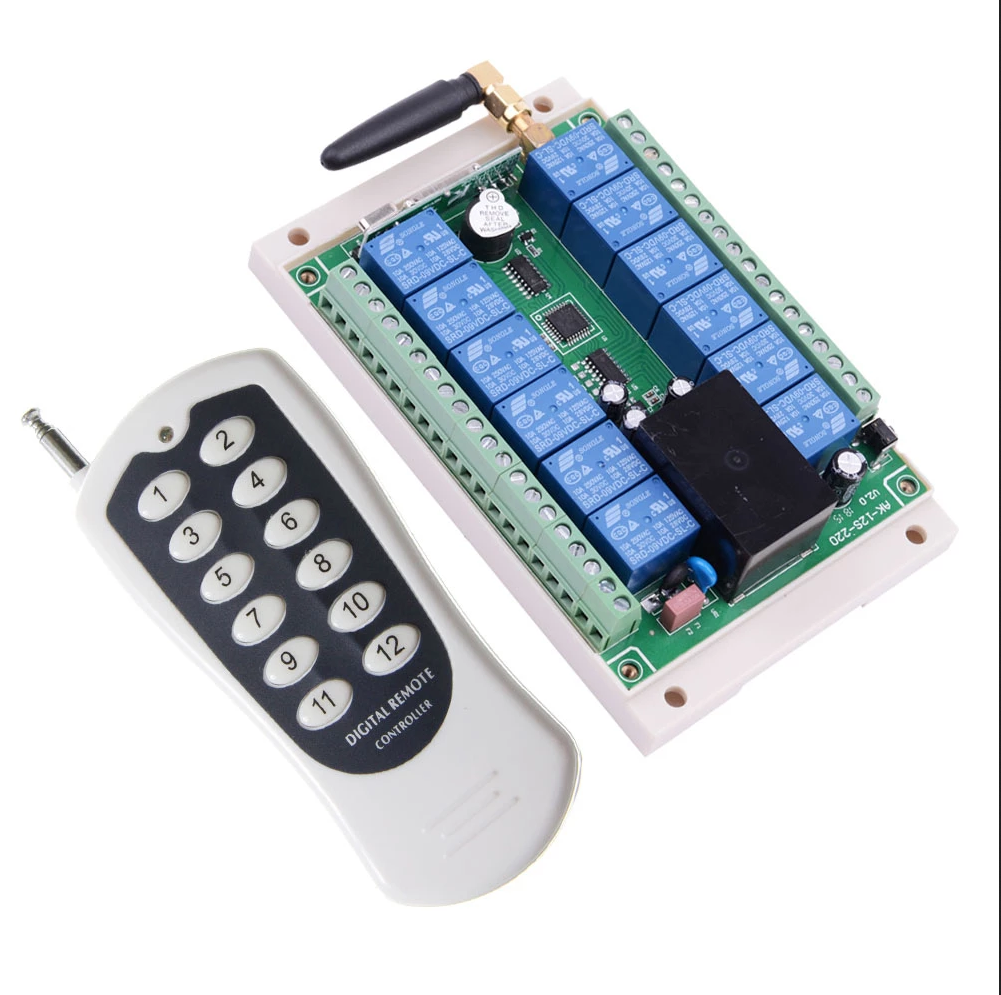

It's a AC 110V 220V 250V 12 CH Remote Control Lighting Switch 12 channel 10A Relay 220V Receiver Industrial level 12 button Transmitter.
Specification
- Model: AK-12F
- Operation Voltage: DC12V
- Operation Current: ≤35mA
- Operation frequency: 315/144MHz(optional)
- Transmission power: >30mW
- Transmission distance: 1000m(in empty environment)
- Frequency deviation: ±0.2MHz
- Transmission rate: 3-6K
- Encoding chip: PT2262/EV1527/HCS301
- Size: 97*50*14.7mm
- Weight: 0.26kg
Controller:
- Working voltage: AC220V
- Working temperature: -40°C ~+80°C
- Receive sensitivity: ≥-105dBm
- Operating frequency: 315/433MHz (optional)
- Output Current: ≤3A
- Weight: 0.55KG
- Size: circuit board: 122*87*17mm; with case: 144.8*91*40 mm
