Description

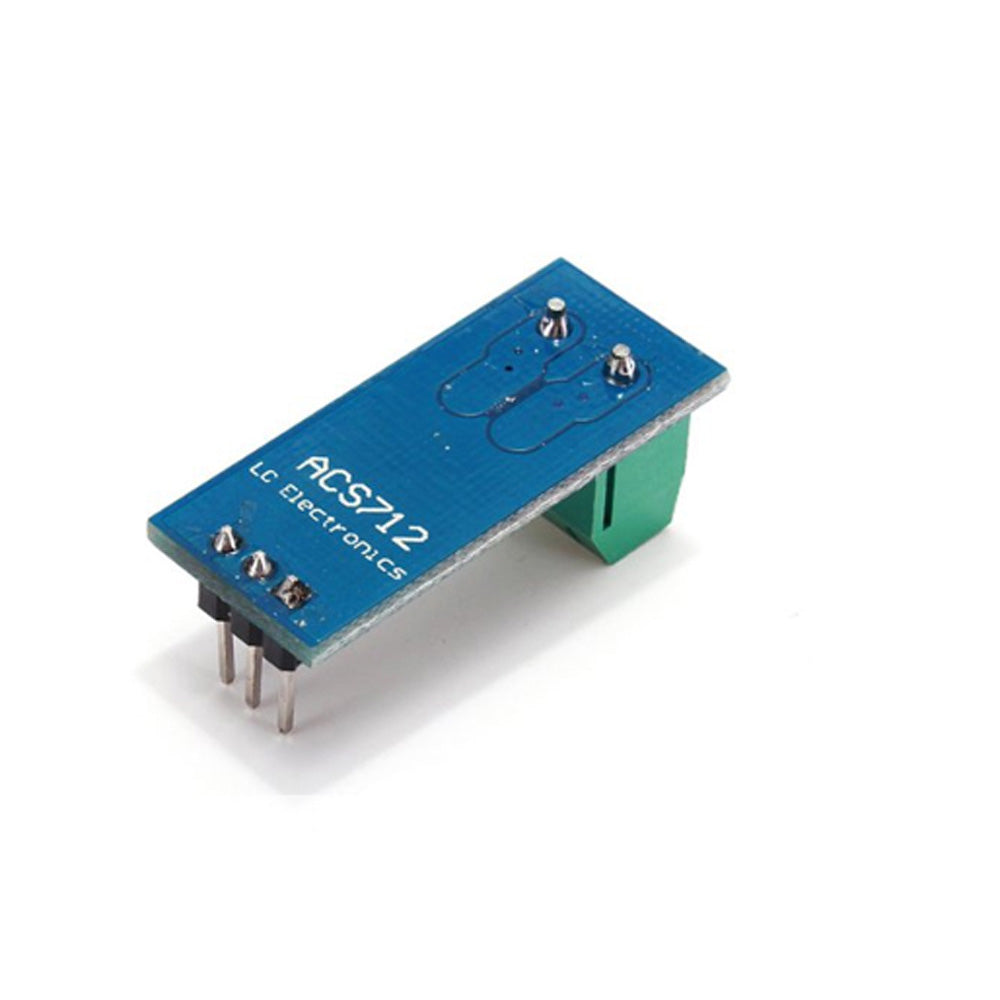

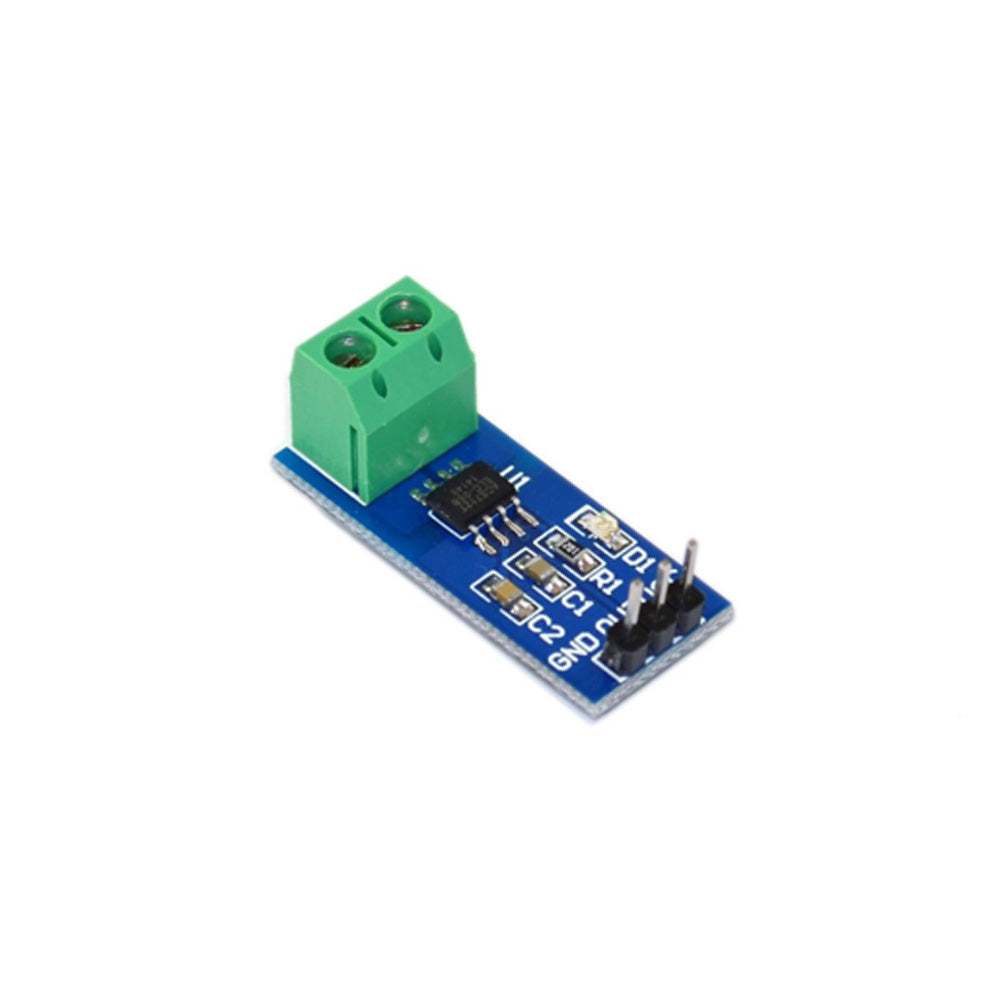

ACS712 20A Current Sensor Module consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which the Hall IC converts into a proportional voltage. It provides economical and precise solutions for AC or DC current sensing in industrial, commercial, and communications systems. It is provided in a small surface-mount SOIC8 package. The lead frame is plated with 100 percent matte tin, which is compatible with standard lead (Pb) free printed circuit board assembly processes.
Features
- It has a low-noise Analog signal path
- The device bandwidth is set via the new FILTER pin
- The 5 µs output rise time in response to step input current
- The small footprint, low-profile SOIC8 package
- It has a 5.0 V single-supply operation
- Output voltage proportional to AC or DC currents
- The factory-trimmed for accuracy
- It has extremely stable output offset voltage
- It has nearly zero magnetic hysteresis
- The radiometric output from the supply voltage
- Device bandwidth is set via the new FILTER pin
Application
- Motor control
- Load detection and management
- Switched-mode power supplies
- Overcurrent fault protection.
Pin Configuration
| VCC Pin | Input voltage is +5V for typical applications |
| Output Pin | Outputs Analog voltage proportional to current |
| Ground Pin | Connected to the ground of the circuit |
| Wire In(T1) & Wire Out(T2) | The wire through current has to be measured is connected here |
Specification
| Current sensor chip | ACS712ELC-20A |
| Supply Voltage | 5V DC |
| Current Range | -20 to +20 A |
| Sensitivity | 100 mV/A |
| Scale Factor | 185 mV per A |
| Voltage at 0A | VCC/2 |
| Length | 31.73 mm (1.24") |
| Width | 13.25 mm (0.52") |
| Country of Origin | China |
