Description

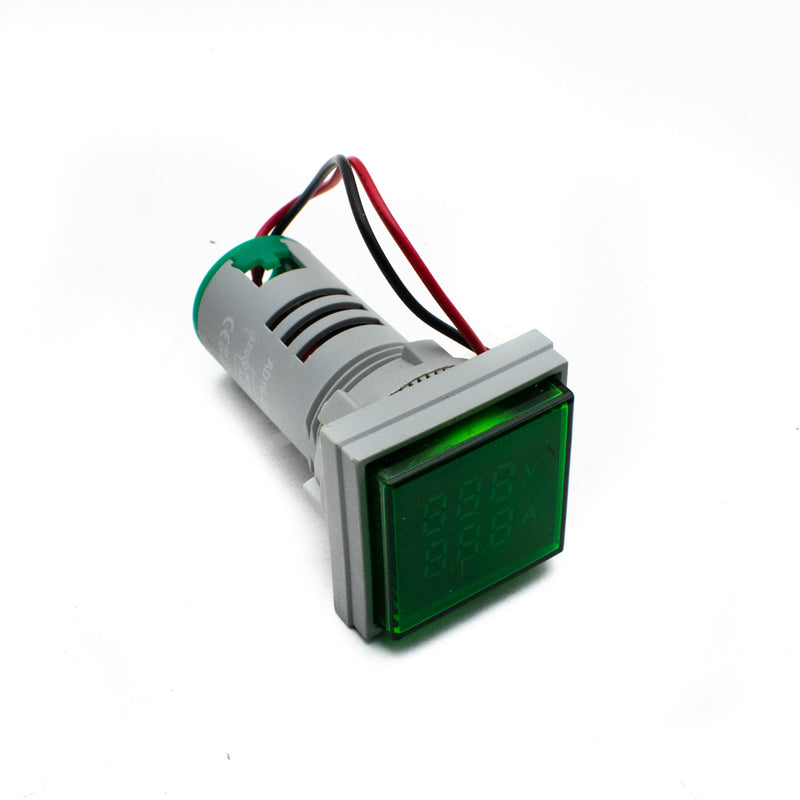

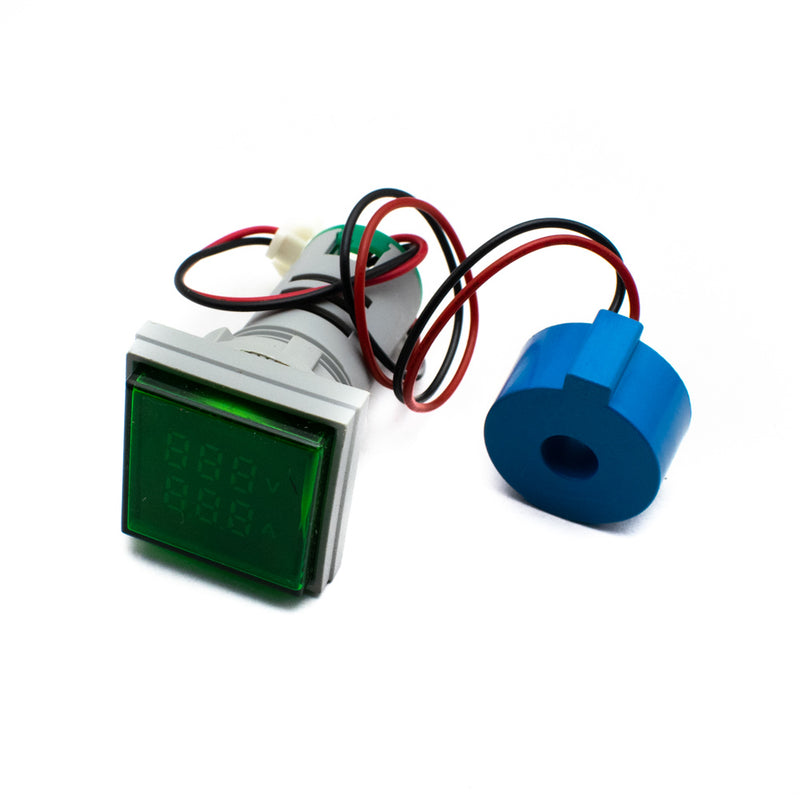

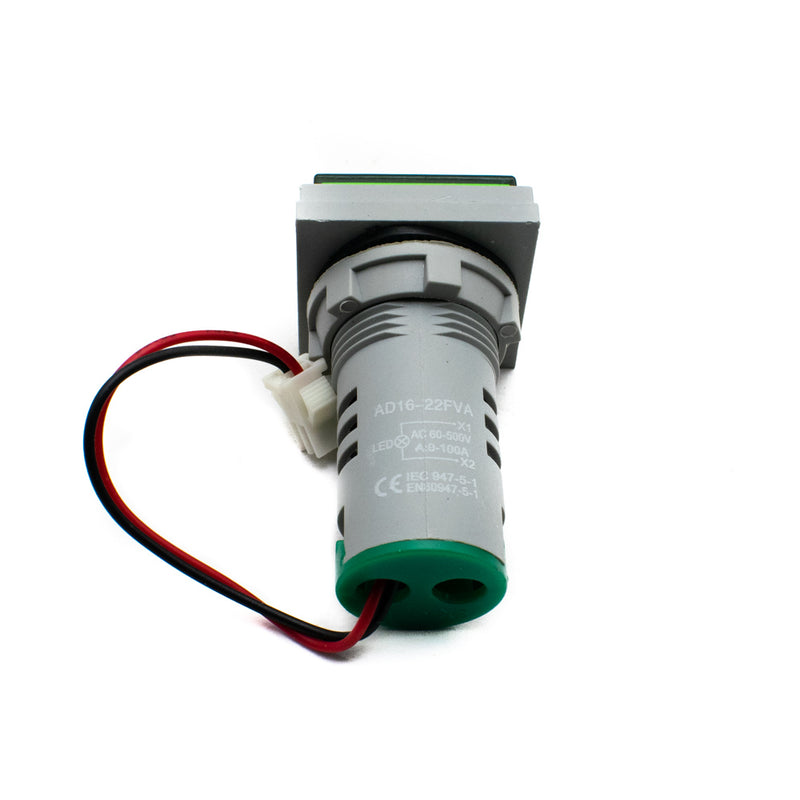

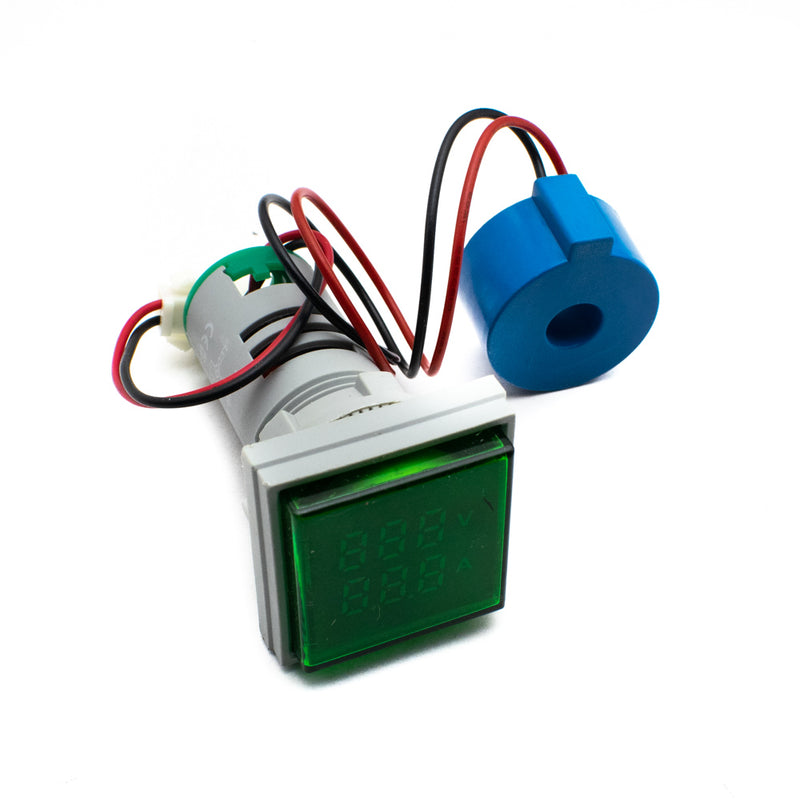

AD16-22FVA LED Digital Dual Display Voltmeter Ammeter Green (0-100A and 60-500V) is a panel-mount device for current and voltage monitoring.
Features:
- Voltage Measuring Range: AC 50 -500V
- Current Measuring Range: 0 -100A
- Frequency Measuring Range: 20 -75Hz

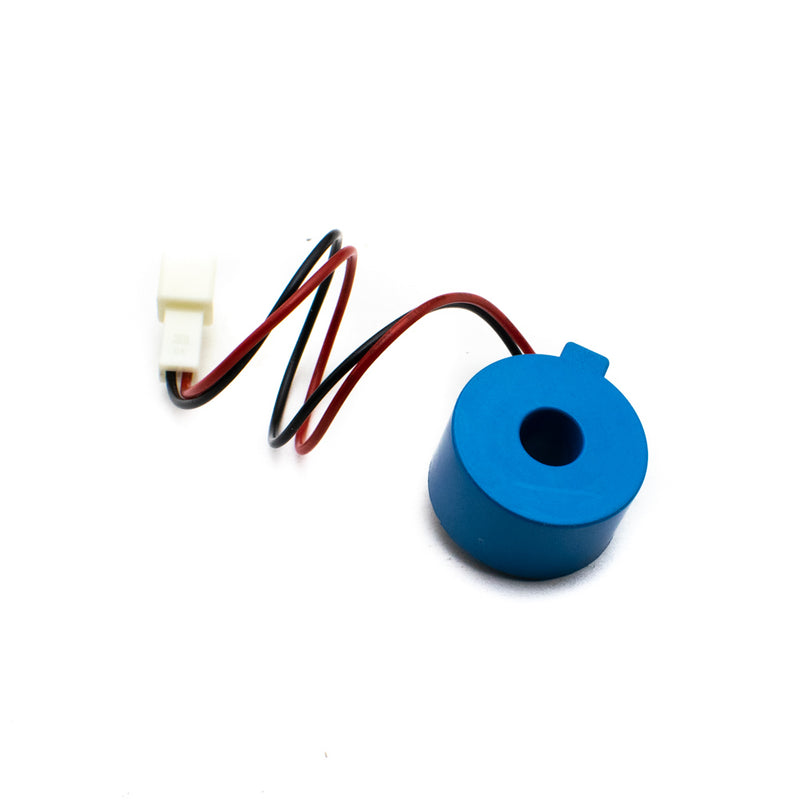

- 2in1 Function with Current Transformer
- high measurement accuracy and stable working performance.
Specifications
| Material | Plastic |
| Installation Size | 22mm |
| Colour | Green |
| Current Range | 0-100A |
| Voltage Range | 60-500V |
| Current Sensor Diameter | 25.5mm |
| Current Sensor Inner Diameter | 8mm |
| Size | 31.2x31.2x56mm |
| Country of Origin | China |
