Description
HIGH-PERFORMANCE AGX ORIN SOM

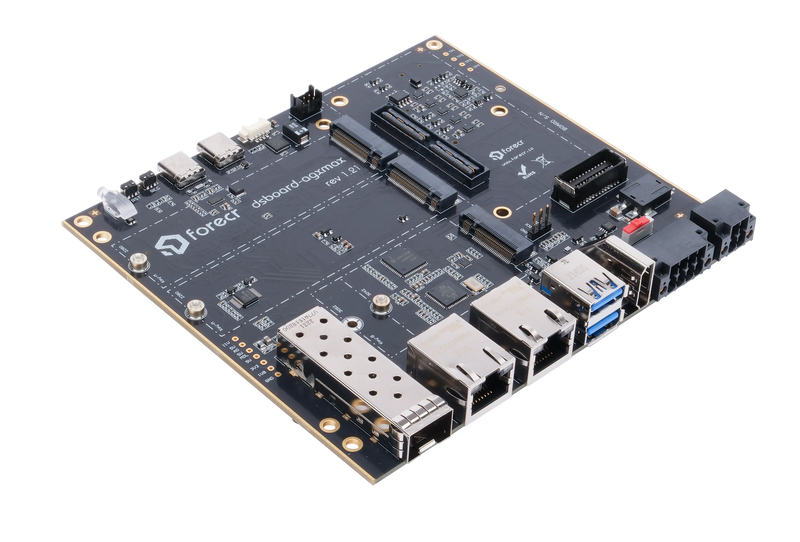

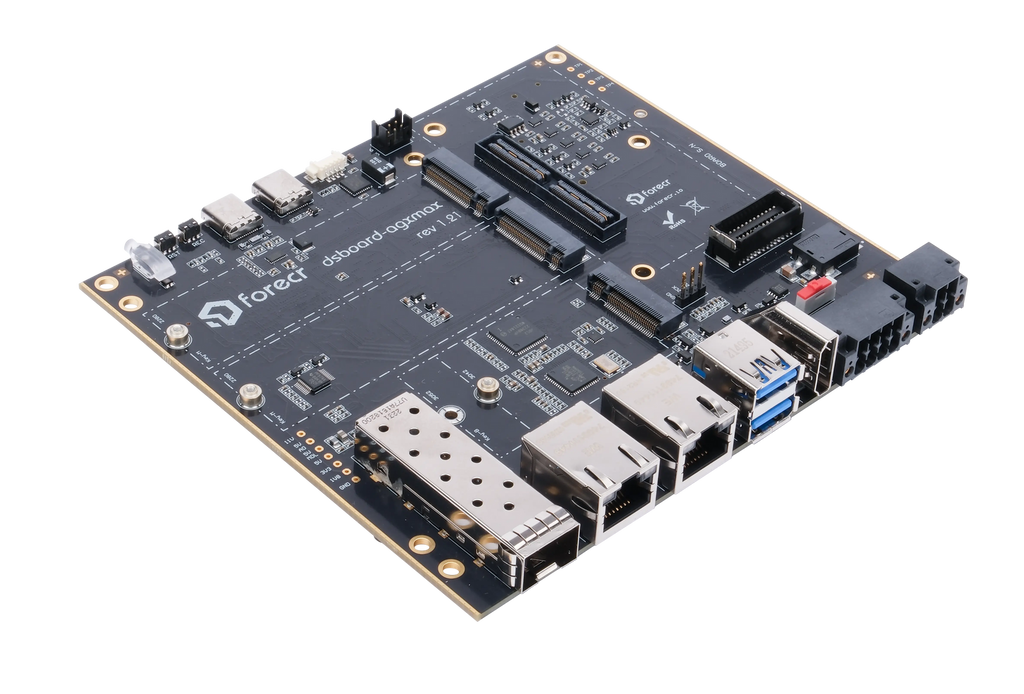

The DSBOARD-AGXMAX is an industrial carrier board designed to maximize productivity and connectivity. Powered by the high-performance NVIDIA Jetson AGX Orin SoM, it delivers up to 275 TOPS of AI performance, making it perfect for machine vision, robotics, automation, and other demanding industrial applications.
TOP-OF-THE-LINE 10G CONNECTIVITY
Stay connected with top-of-the-line 10G Ethernet, alongside dual Gigabit Ethernet ports, USB 3.2, HDMI, and CAN interfaces. This robust connectivity ensures high-speed data transfer and reliable real-time communication, essential for industrial applications.
EXTENSIVE CONNECTIVITY OPTIONS
Benefit from extensive connectivity options including 2x USB 3.1 Type-A, 2x USB-C, RS232/422/485, and MIPI CSI-2 Camera support. These interfaces support a wide range of peripherals and sensors, enhancing the system’s flexibility and integration capabilities.
ADVANCED AI AND MACHINE LEARNING
Leverage the advanced AI and machine learning capabilities of the DSBOARD-AGXMAX, offering 275 TOPS of performance. This enables real-time data processing and intelligent decision-making, perfect for applications in autonomous systems, energy, and smart retail.
RUGGED AND DURABLE CONSTRUCTION
Designed to withstand harsh industrial environments, the DSBOARD-AGXMAX features a robust construction for long-lasting reliability. Its fanless design ensures excellent heat dissipation and protection against dust, shock, and vibration.
WIDE OPERATING TEMPERATURE AND VOLTAGE RANGE
Operate reliably across a wide temperature range (-25°C to +85°C) and input voltage range (12-32 VDC). This flexibility ensures the DSBOARD-AGXMAX can handle various industrial environments and maintain stable performance.
JETSON AGX ORIN™ CARRIER BOARD WITH 10G ETHERNET - DSBOARD-AGXMAX USE CASES
AUTONOMOUS SYSTEMS
Enable seamless integration into autonomous systems for various applications such as self-driving vehicles, drones, and robotic platforms, facilitating real-time decision-making and navigation in dynamic environments.
ENERGY
FORECR's computing solutions facilitate predictive maintenance of energy equipment, analyze data from sensors to optimize energy usage, and enable integration with smart grid technologies for enhanced grid stability and energy management.
ROBOTICS
FORECR's industrial-grade computing solutions drive advancements in robotics by enabling real-time perception, decision-making, and control, empowering robots to perform complex tasks in manufacturing, logistics, and service industries.
TECHNICAL SPECIFICATIONS
| SUPPORTED MODULES |
NVIDIA Jetson AGX Orin 32GB NVIDIA Jetson AGX Orin 64GB NVIDIA Jetson AGX Orin Industrial |
| MEMORY |
32 GB 256-bit LPDDR5x 64 GB 256-bit LPDDR5 |
| GRAPHICS INTERFACES |
1x HDMI 2.0 (max resolution 3840x2160) |
| INTERFACES |
2x Gigabit Ethernet 1x 10G (SFP+Based) 2x USB 3.1 Type-A 1x CAN Bus 1x RS232/422/485 (software configurable) 2x USB-C (Debug/Recovery) 2x Digital Input 3x Digital Output |
| WIRELESS COMMUNICATION |
WiFi/Bluetooth/LTE/5G Connectivity by extension sockets |
| POWER SUPPLY |
12-32 VDC |
| EXTENSION SOCKETS |
1x M.2 Key-B, 1x SIM, 1x 5V Fan 1x I2C, 2x UART, 1x I2S, 2x SPI, 1x CAN 1x Camera Connector (6 CSI camera support) |
| MASS STORAGE |
64 GB eMMC 5.1 Flash 2x M.2 Key-M SSD Slot |
| AMBIENT CONDITIONS |
-25°C ... +85°C |
| FORM FACTOR / DIMENSIONS |
140 mm x 125 mm, 132 gr |
| OPERATING SYSTEMS |
Ubuntu Linux 20.04 |
| JETPACK SUPPORT |
JetPack 5.x |
