Description

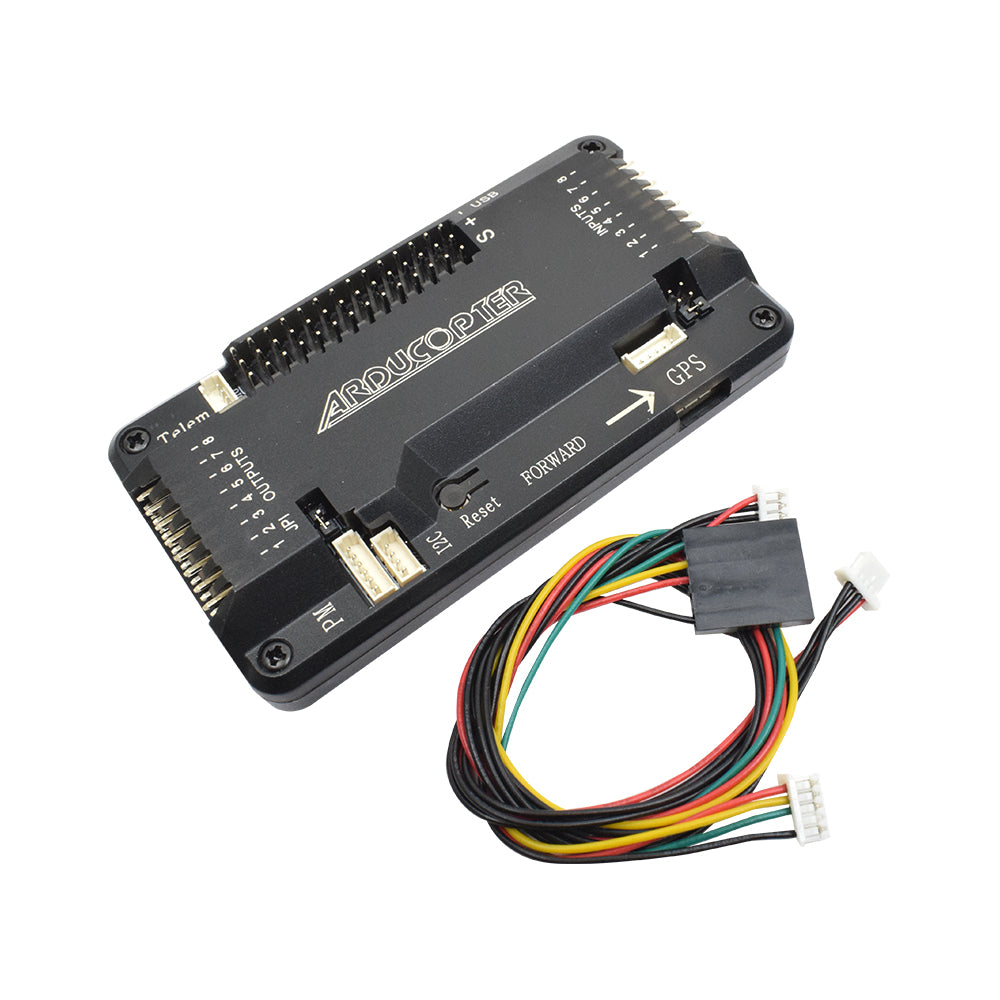

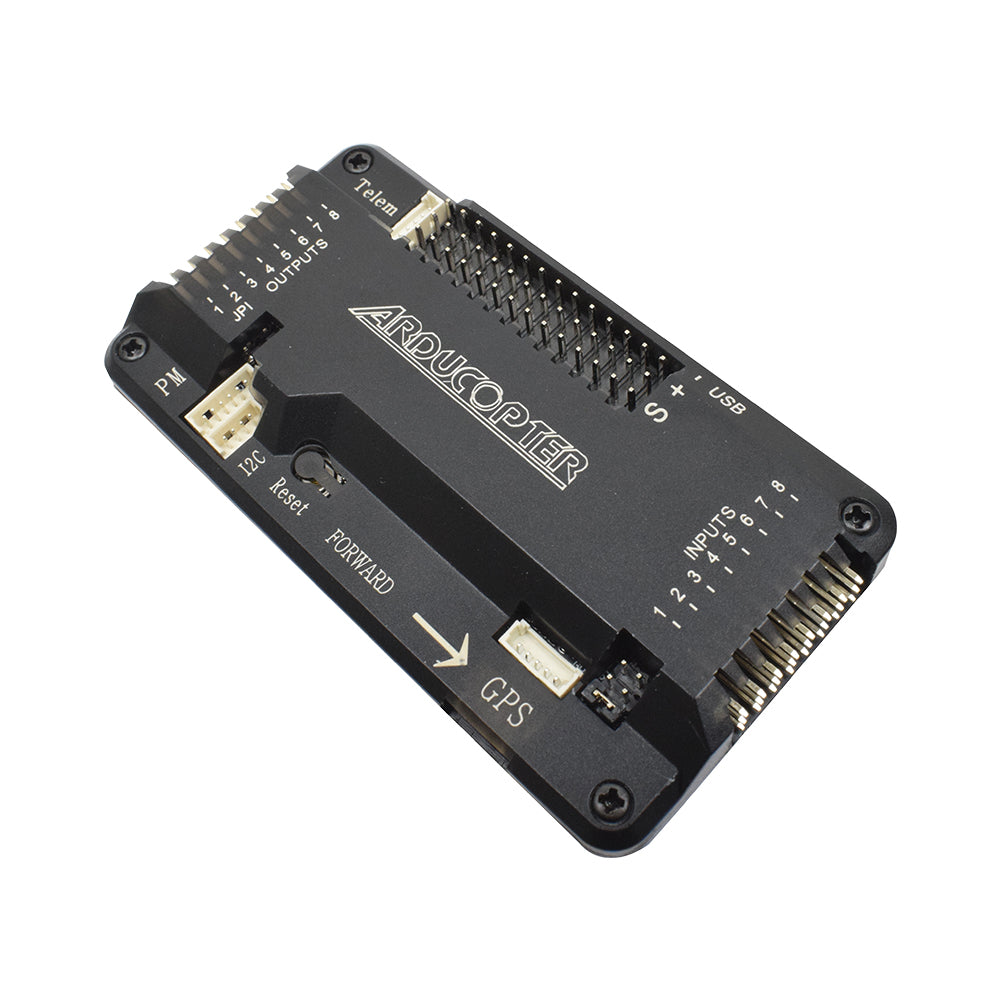

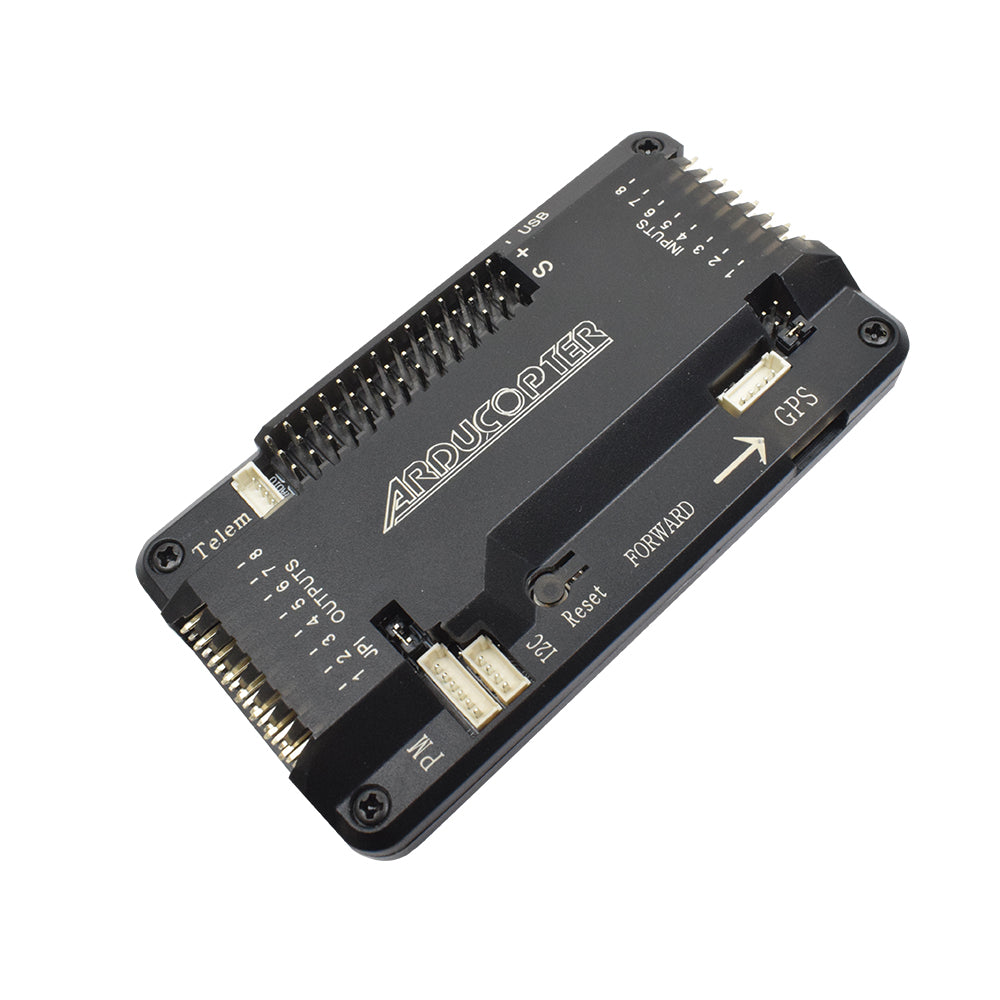

An improved version of 2.5 and 2.6, the APM 2.8 Multi copter Flight Controller is for FPV RC Drones. The module includes the ability to use an external compass via a jumper, although the sensors are identical to those in the APM 2.6 flight controller. The APM 2.8 is therefore perfect for usage with rovers and multi-copters. Full open source autopilot functionality is provided by the APM 2.8 Multi copter Flight Controller. The most popular technology used to win the coveted Outback Challenge UAV competition is this one. The user is able to rotate any fixed, rotary-wing. Additionally, it makes any multirotor vehicle-including automobiles and boats-completely autonomous. In the meanwhile, it may carry out pre-programmed GPS missions with waypoints.
Features :
- Straight Needle
- Arduino Compatible!
- Onboard 4 MegaByte Dataflash chip for automatic data logging.
- Optional off-board GPS, auBlox LEA-6H module with Compass.
- One of the first open-source autopilot systems to use Invensenses 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively
Specifications:
| Type | Flight Controller |
| Version | APM2.8 |
| Port | MUX UART |
| Voltage | 12~16 VDC |
| Dimensions | 85mmx45mmx14mm |
| Country of Origin | China |
