Turbidity Sensor with Arduino Nano R3 Development Board Compatible with Arduino

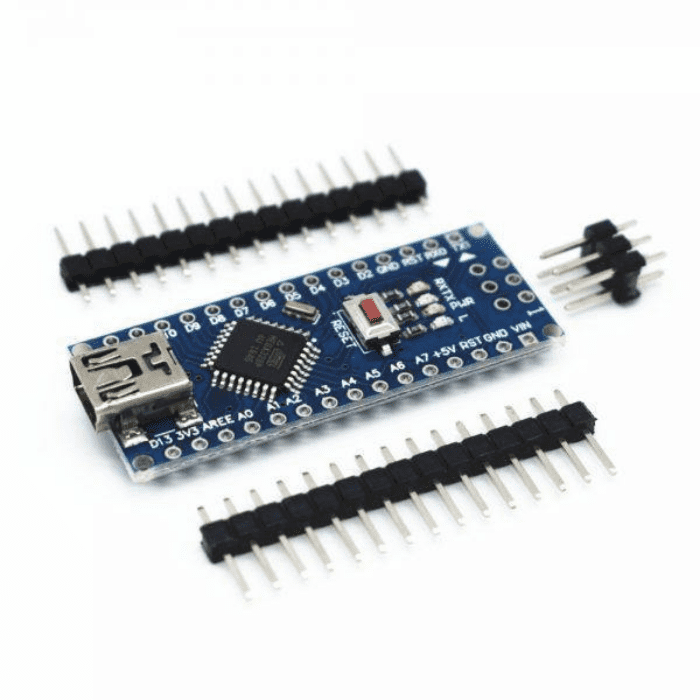

The Nano board R3 is integrated with the CH340 chip and is compatible with Arduino. Each of the 14 digital pins on the Nano can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms.

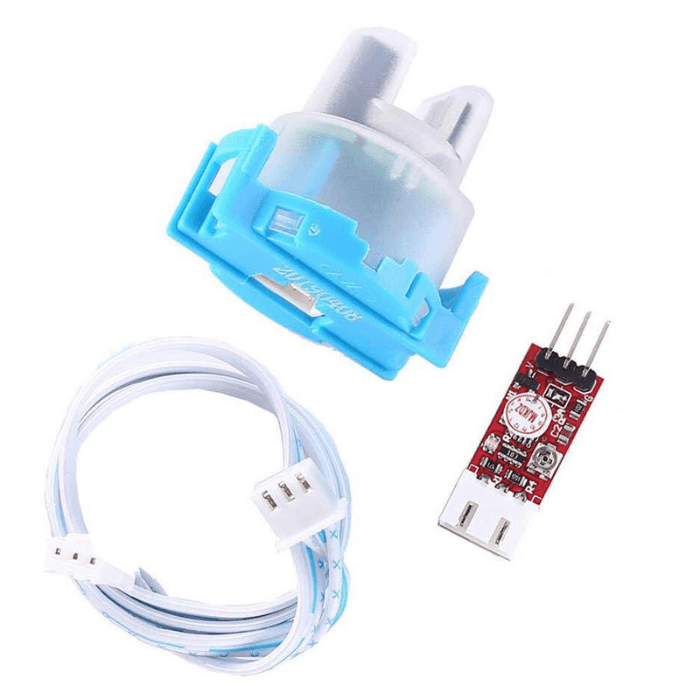

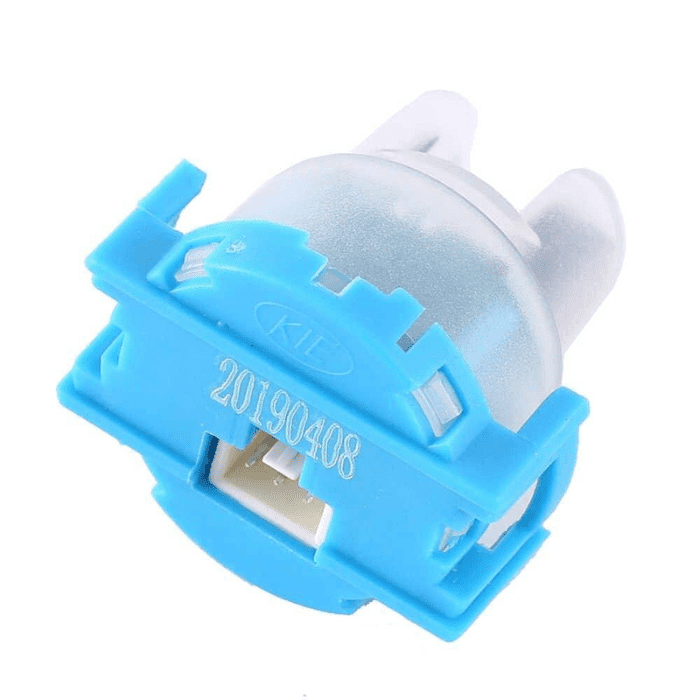

The Turbidity Sensor emits at its end an infrared light, imperceptible to human vision, capable of detecting particles that are suspended in water, measuring the light transmittance and the dispersion rate, which changes according to the amount of TSS (Total Suspended Solids), increasing the turbidity of the liquid whenever levels increase.

Key Features:

Nano Development Board:

  • Integrated with the CH340 chip.
  • Compatible with Arduino.
  • 14 digital pins for input/output.
  • Uses ATmega328 microcontroller.
  • Each digital pin can handle up to 40 mA of current, with optional internal pull-up resistors (20-50 kOhms).

Turbidity Sensor:

  • Emits infrared light to identify suspended particles in water.
  • It measures light transmittance and dispersion rate.
  • Turbidity can be measured in the range of 0 to 1000 Nephelometric Turbidity Units (NTU).
  • Measures turbidity with great sensitivity and precision.

Application:

  • Washing machines,
  • Dishwashers,
  • industrial site control,
  • environmental sewage collection
  • Water quality monitoring using IoT

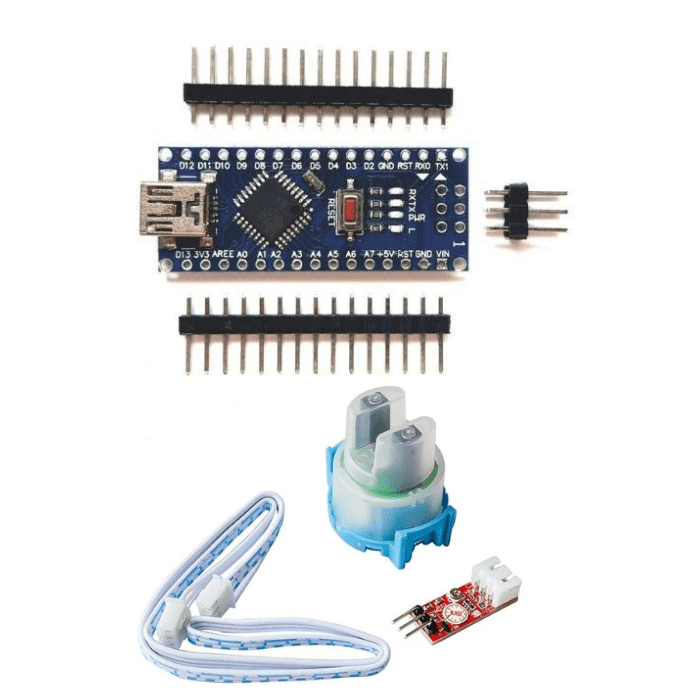

Package Includes:

  • 1 x Nano board
  • 1 x Turbidity Sensor

Specifications:

Microcontroller

ATmega328

Analog Input Ports

8 (A0 ~ A7)

Digital I/O Ports

14 (TX, RX, D2 ~ D13)

Operating Voltage

5V

Dimensions

4.3 x 1.8 x 1cms

Weight

5 grams

Working voltage of Turbidity Sensor

5V DC

Current of Turbidity Sensor

30mA (MAX)

Operating temperature

-30 ° C to 80 ° C

Compatible

Arduino, Raspberry Pi, AVR, PIC

Measuring Range

0 ~ 1000 NTU
