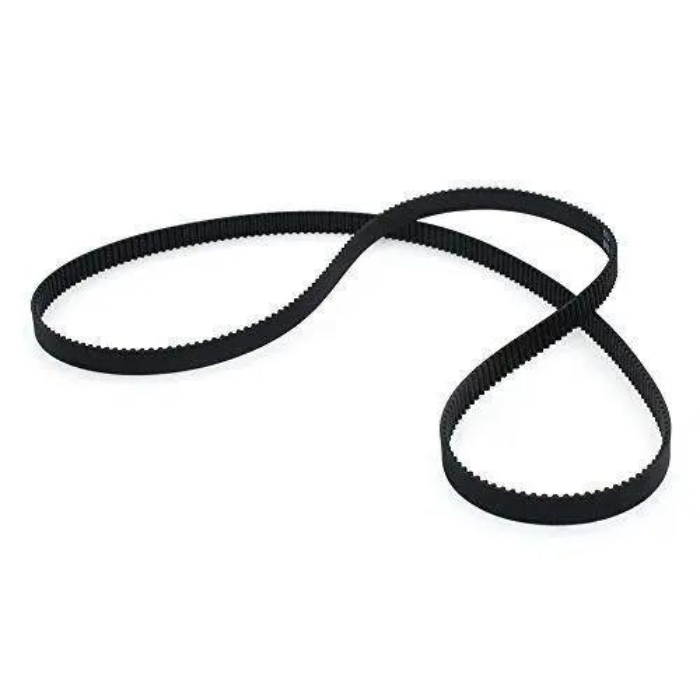

300mm GT2 Timing Belt 150 Teeth 6mm Width for 3D Printer CNC

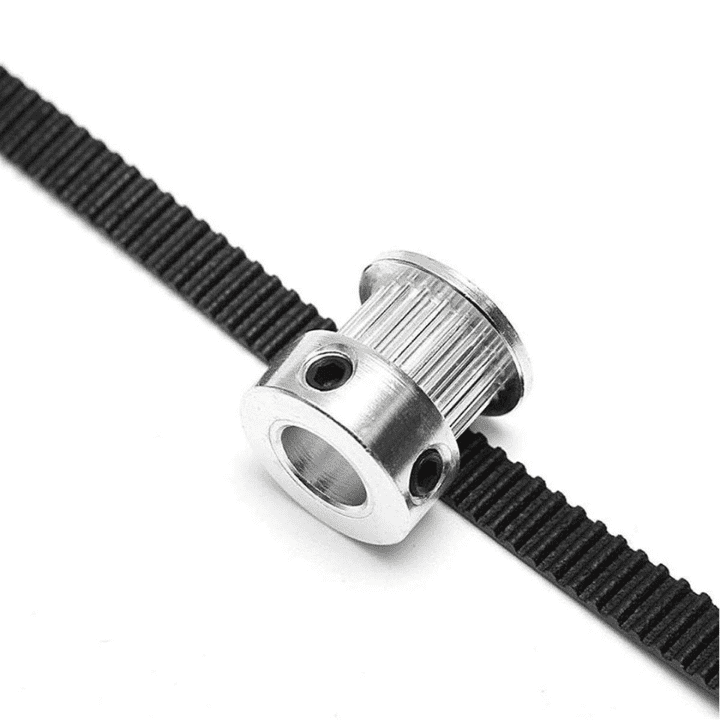

The product has good dynamic performance, good performance, and good resistance to cracking. It has excellent ozone performance, as well as aging resistance, heat resistance, and wear resistance. The timing belt is also called as the synchronous belt is popularly known for its non-slipping mechanical drive belt. It is composed of the flexible belt which contains a row of teeth embedded on the inner surface of the belt. Timing pulley and belt works when the toothed parts become compatible with each other. It is a belt that usually features teeth on the inside surface, while a timing chain is a roller chain. Widely used in mechanical devices, printers/photocopiers, 3d printer, robotics, automation, etc.
Package Includes:
- 1 x 300mm GT2 Timing Belt 150 Teeth 6mm Width for 3D Printer CNC
Specifications:
| Type | Closed loop |
| Material | Rubber |
| Tooth Number | 150 |

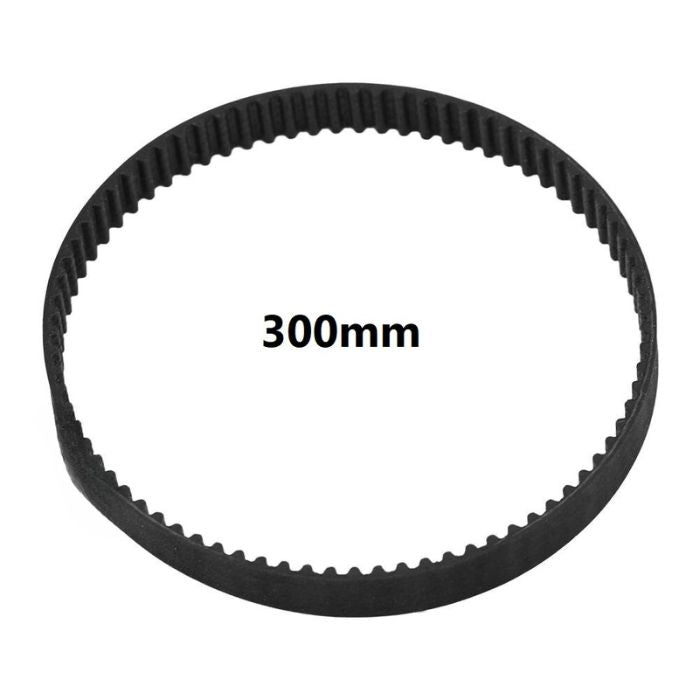

| Loop Length | 300mm |
| Width | 6mm |

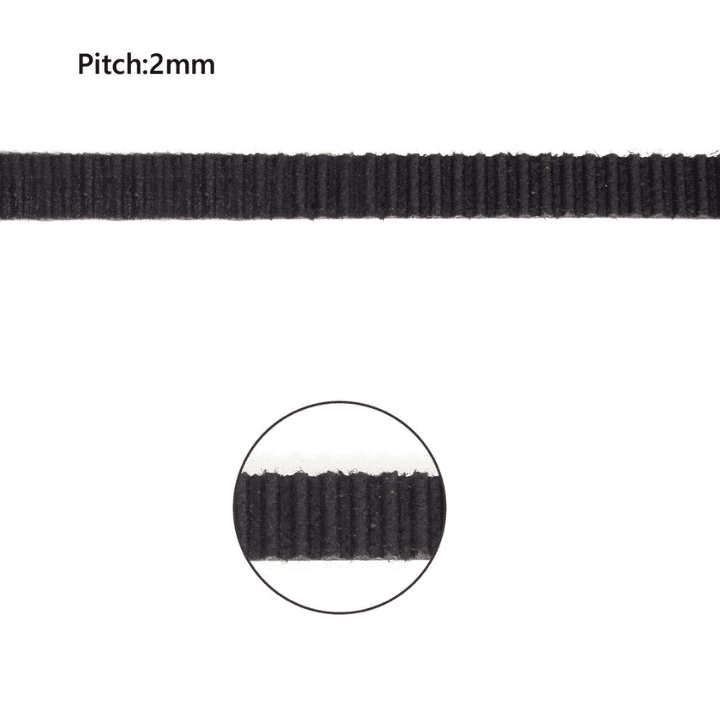

| Pitch | 2mm |
| Belt Height | 1.14mm |
