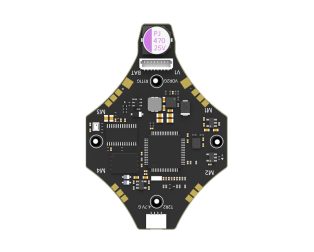

The BLITZ D25 HD F7 AIO is a next-generation all-in-one flight controller designed to support high-performance drone builds, particularly for those using Defender 25 HD VTX systems. This AIO is perfect for drone enthusiasts seeking a compact, powerful, and easy-to-install solution for their FPV drones.
Features:
- All-in-one design combining flight controller, ESC, and more for easy installation.
- Supports HD VTX systems like DJI O3 and Caddx Vista/Polar.
- STM32F722 MCU for high processing power and future-proof firmware compatibility.
- ICM42688 gyro for precise flight stabilization.
- 32MB onboard flash for Blackbox logging.
- 5V 2.5A BEC output for powering additional components.
- Supports 2-4S LiHV batteries.
- Lightweight at just 12.8g.
- Pass-through connectors for easy VTX integration.
- WS2812 LED strip support for customizable lighting.
- Bidirectional DShot and telemetry support for ESC.
Package Includes:
1 x Defender 25 BLITZ F7 AIO
1 x Capacitor 470uF/35V (Onboard)
1 x XT30U Male 18AWG cable 70mm
1 x 1.0-7P cable 50mm-28mm
1 x 1.0-7P cable 50mm
4 x M2 silicon grommets
