Description

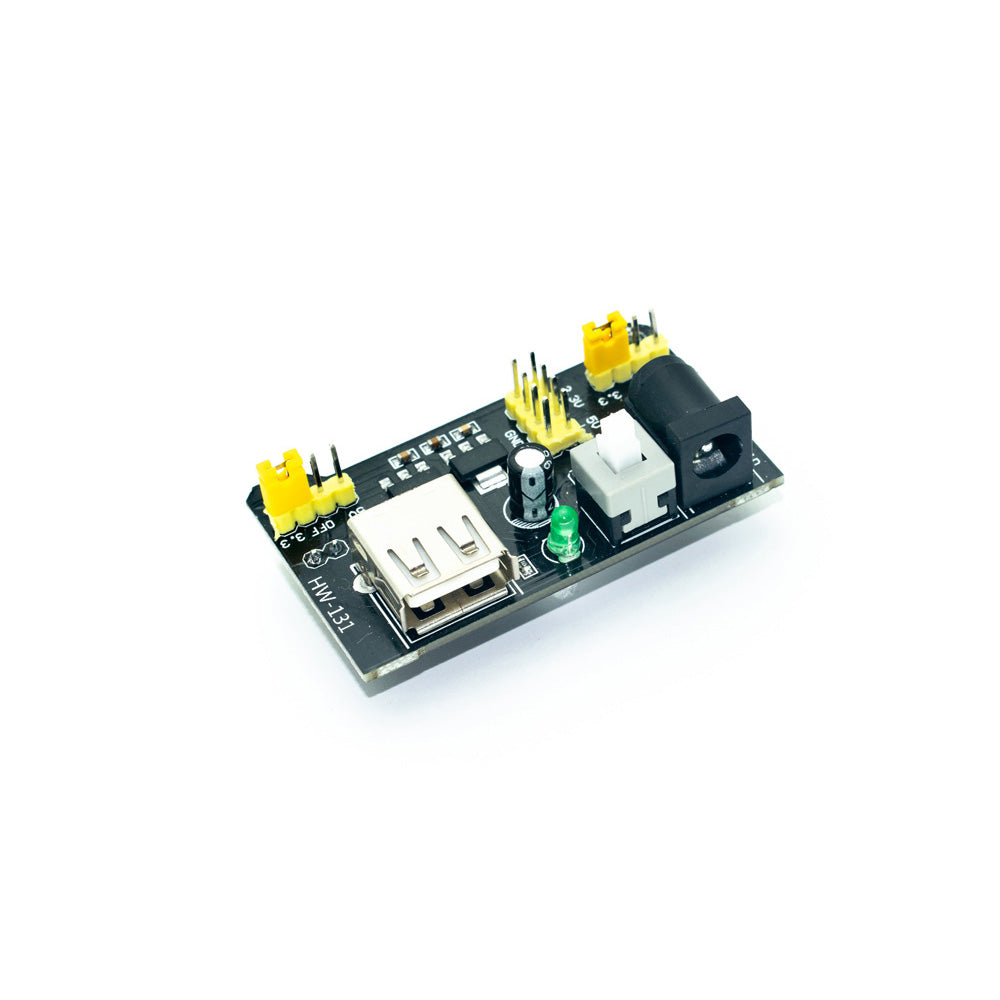

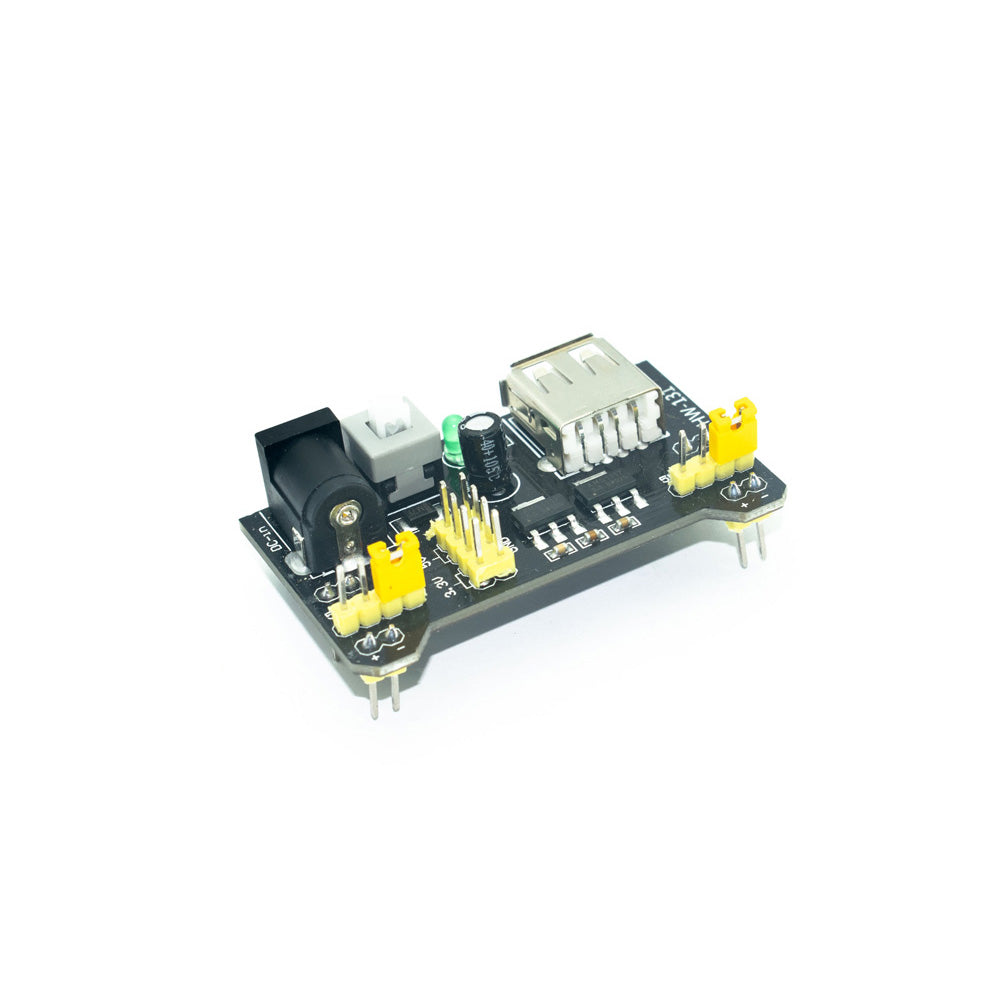

This is a Breadboard Power Supply Module 3.3V/5V with a multi-purpose female USB connection and two independent power lines that may be tuned to a 5V or 3.3V output voltage or turned off completely. The ON/OFF switch on the module is used to turn it on and off. The Breadboard Power Supply Module 3.3V/5V securely fits in a typical 400 or 800 tie points breadboard, and it also has reverse polarity protection. It accepts 6.5V to 12V input and outputs 3.3V and +5V.
Features
- Designed to fit the standard MB102 breadboard
- Power Supply comes with On/Off Switch
- Green LED power indication
- Built-in protection against short-circuit through power limiting circuitry
- compatible with 5V, 3.3V
- Input Voltage: 6.5-12V (DC) or USB power
- Output voltage: 3.3V, 5V
- switchable Maximum Output Current: <700ma
- The two-way independent control
- The output voltage can be switched to 0V, 3.3V, 5V
- On-board Two sets of 3.3V, 5V DC output pins, which lets you connect directly to external circuits and to multiple breadboards.
Specification
| Input Voltage | 6.5-12V |
| Output Voltage | 3.3V/5V |
| Max. Output Current | 700mA |
| Dimension | 53x32x23mm |
| Model | MB102 |
| Short Circuit Protection | Yes |
| Country of Origin | China |
